Award 60cm Integrated Undercounter Dual Zone Wine Cabinet  Wine Cabinet

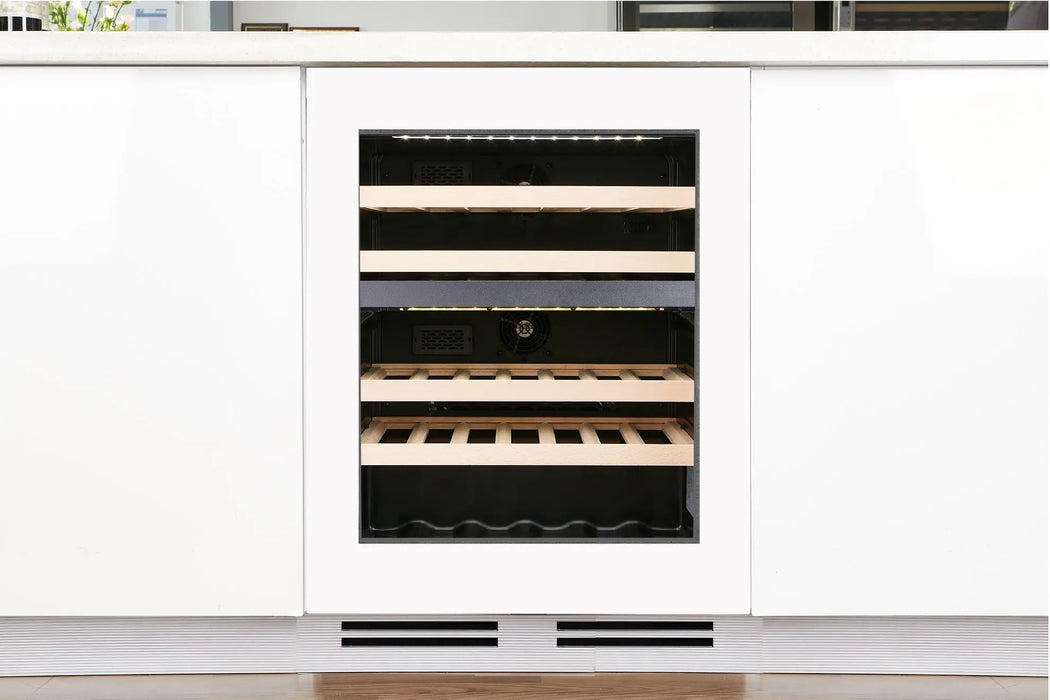

Award 60cm Integrated Undercounter Dual Zone Wine Cabinet

$3,031.40 - $3,031.40
$3,031.40
$3,031.40 - $3,031.40
$3,031.40
SKU WCDZ60INT/1

Award 60cm Integrated Undercounter Dual Zone Wine Cabinet provides dedicated storage and presentation for wine, beverages or specialist collections rather than asking a household refrigerator to do the same job. A key distinction is integrated undercounter dual zone wine cabinet, helping plan the cabinet around the drinks you actually keep and serve.

  • Integrated undercounter dual zone wine cabinet
  • Capacity for up to 45 Bordeaux bottles
  • Double glazed door designed for custom joinery panel and handle
  • Four beechwood shelves for secure bottle storage
  • LED controls with temperature display
  • Interior lighting for enhanced visibility
Why Choose This Product

Choose this cabinet when your drinks collection deserves dedicated temperatures, organised presentation and easier access than a general refrigerator can provide. The practical value of integrated undercounter dual zone wine cabinet lies in matching storage more closely to the collection, while the separate format protects household fridge space. The best choice depends on bottle mix, zone requirements and installation ventilation—not nominal bottle count alone.
Simply Hospitality Notes

Simply Hospitality note: Published bottle counts are based on a defined loading pattern and can fall with wider Burgundy or sparkling bottles. Confirm built-in versus freestanding ventilation, door swing and shelf clearance before installation. If red and white wine share the cabinet, choose the zone arrangement around the temperatures you actually serve. Model reference: WCDZ60INT/1.

Product Guide

Set the cabinet for the drink style and service temperature required, then allow it to stabilise before loading fully. Arrange bottles so air can circulate and keep labels visible for stock rotation. Avoid repeated door opening, clean the condenser or ventilation path where applicable, and remember that long-term cellaring temperatures may differ from immediate serving temperatures.

Brand Guide

About Award: Award Appliances is a New Zealand family-owned appliance business established in 1946. Its range is designed around the needs of New Zealand kitchens, with practical cooking, ventilation, refrigeration, dishwashing and laundry solutions supported locally. Award Advance is the brand’s more specialised ventilation collection, created for customers and designers who want stronger architectural integration and greater flexibility around motor placement and kitchen acoustics.

Product Details

The cabinet is designed around stable, dedicated drinks storage and accessible presentation. A defining characteristic is integrated undercounter dual zone wine cabinet, which informs how it should be loaded and used. Bottle capacity depends on bottle profile and shelf arrangement, while correct ventilation and door clearance are essential to temperature performance in an integrated installation.

Technical Specifications

  • Appliance type: Integrated undercounter dual zone wine cabinet
  • Bottle capacity: 45 Bordeaux bottles
  • Temperature range (upper zone): 12°C – 20°C
  • Temperature range (lower zone): 5°C – 12°C
  • Control type: LED controls with temperature display
  • Shelving: 4 beechwood shelves
  • Interior lighting: Yes
  • Door: Double glazed, reversible, suitable for custom joinery panel

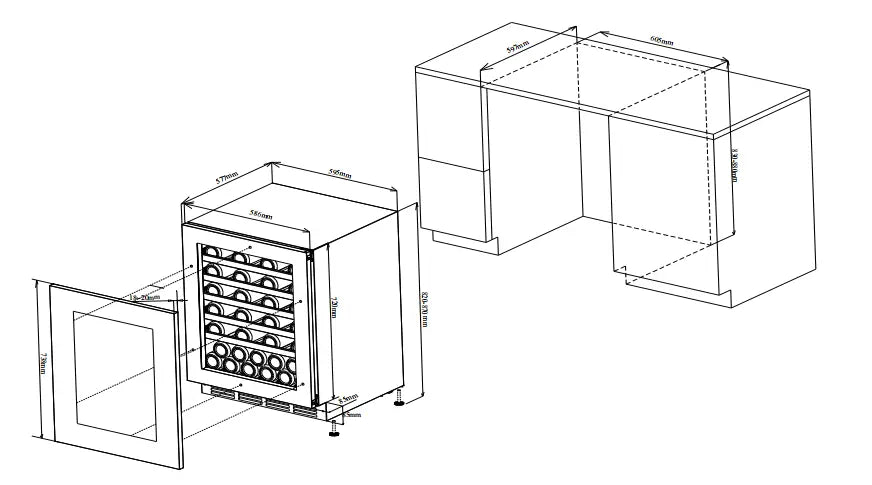

  • Integration panel size: 738 mm (H) × width to suit aperture
  • Viewing window size: 550 mm (H) × 442 mm (W)
  • Door opening range: Minimum 92° / Maximum 112°
  • Ventilation requirement: 300 cm² via kick panel
  • Dimensions: 595 mm (W) × 820–870 mm (H) × 577 mm (D)
