Award Advance Series Integrated Undercounter Beverage Centre BV60INT/1 is a purpose-built integrated beverage storage cabinet designed for premium kitchens, bars and entertainment spaces. With a 135 L capacity and precise cooling control from 2 °C to 10 °C, it provides chilled storage for wine, beer, soft drinks and other beverages while remaining hidden behind custom cabinetry. :contentReference[oaicite:9]{index=9}
Featuring a double glazed reversible door ready for panel fitment, LED temperature controls and internal lighting, this unit offers both performance and refined aesthetics. Flexible shelving options including telescopic shelves and an upright bottle basket ensure versatile storage organisation. :contentReference[oaicite:10]{index=10}
Key performance and storage
- Total internal capacity: 135 L
- Temperature range: 2 °C – 10 °C

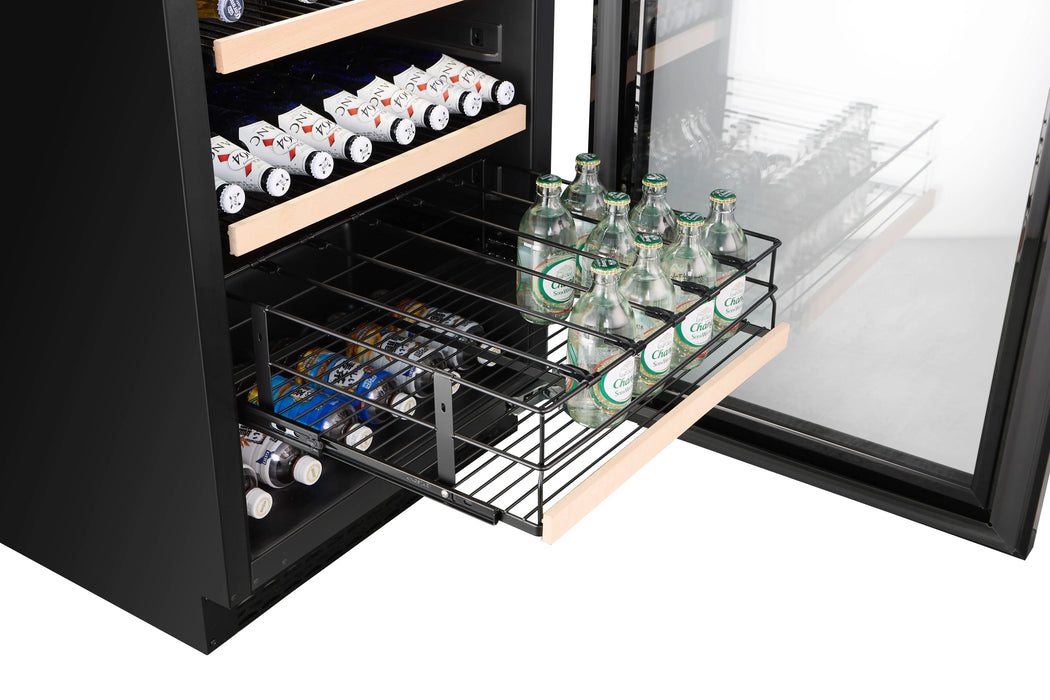

- Shelving: 2 telescopic wire shelves + 1 wire basket
- Interior LED lighting: Yes
- Display and controls: LED temperature display

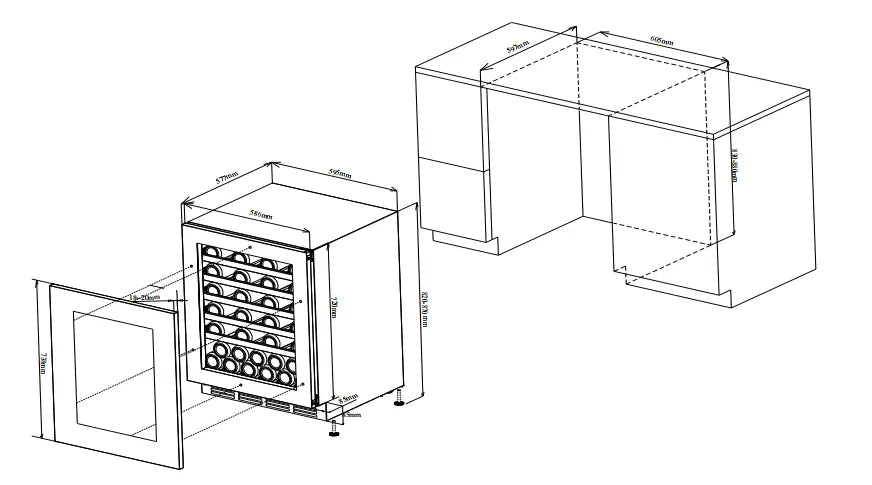

Installation details
- Reversible door for left or right installation
- Double glazed door designed for custom joinery panel and handle
- Integration panel size: 738 mm (H) × width to suit opening with window 550 × 442 mm (W)
- Ventilation requirement: 300 cm² via kick panel
- Door opening angle: Minimum 92° / Maximum 112°
Dimensions
- Width: 595 mm
- Height: 820 – 870 mm (adjustable)
- Depth: 577 mm
About Award
Award Appliances offers integrated and freestanding refrigeration solutions tailored for both commercial and residential environments, with a focus on reliable performance and seamless integration into modern cabinetry. :contentReference[oaicite:11]{index=11}
