Award Low Profile 60cm Canopy CS9-600S  Rangehoods

Award Low Profile 60cm Canopy CS9-600S

$745.20 - $745.20
$745.20
$745.20 - $745.20
$745.20
SKU CS9-600S

Award Low Profile 60cm Canopy CS9-600S is designed to manage everyday cooking vapour while fitting the stated canopy, powerpack or built-in format. A key distinction is integrated led lighting, helping match extraction performance and visual impact to the way the kitchen is designed.

  • 60cm wall-mounted low-profile canopy rangehood
  • Three fan speeds for everyday ventilation control
  • Maximum extraction rate of 700 m³/hr
  • Operating noise level of 52 dB(A)
  • Aluminium filters for effective grease capture
  • Integrated LED lighting
Why Choose This Product

Choose this model when its visible form suits the kitchen and you want extraction positioned directly over the cooking surface. The integrated led lighting gives it a clear practical advantage, but the real purchase decision is the complete system: canopy width, capture area, duct route and make-up air should all work together.
Simply Hospitality Notes

Simply Hospitality note: Real extraction performance depends heavily on installation. Keep ducting as short, smooth and correctly sized as possible, minimise sharp bends and confirm where replacement air will enter the room. Match any recirculating filter or remote motor to the exact model code. Model reference: CS9-600S.

Product Guide

Use this model above a cooktop of compatible width and plan the hood, motor and duct path as one system. Size the capture area for the cooking style—high-output gas and wok cooking need more attention than light induction use. Start extraction before cooking, leave it running briefly afterwards, clean grease filters on schedule and replace or regenerate recirculating filters exactly as specified.

Brand Guide

About Award: Award Appliances is a New Zealand family-owned appliance business established in 1946. Its range is designed around the needs of New Zealand kitchens, with practical cooking, ventilation, refrigeration, dishwashing and laundry solutions supported locally. Award Advance is the brand’s more specialised ventilation collection, created for customers and designers who want stronger architectural integration and greater flexibility around motor placement and kitchen acoustics.

Product Details

This model uses the stated canopy or concealed format to establish the capture zone immediately above the cooktop. A defining characteristic is integrated led lighting, while grease filtration, duct geometry and outlet position determine how well the system performs once installed. A larger airflow figure cannot compensate for a restrictive duct run or a hood positioned poorly over the cooking surface.

Technical Specifications

  • Product type: Wall-mounted low-profile canopy rangehood
  • Brand: Award

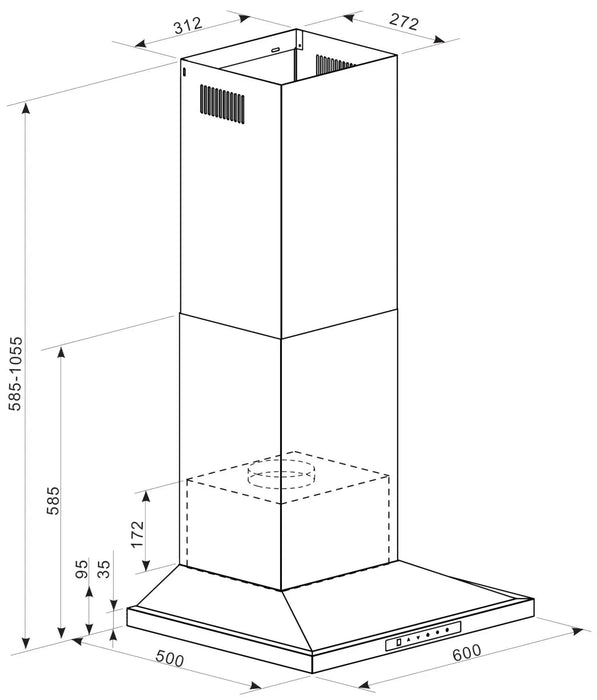

  • Dimensions (W x D x H): 600 mm x 500 mm x 585–1055 mm
  • Fan speeds: 3
  • Maximum extraction: 700 m³/hr
  • Operating noise level: 52 dB(A)
  • Filter type: Aluminium filters
  • Lighting: LED lights
