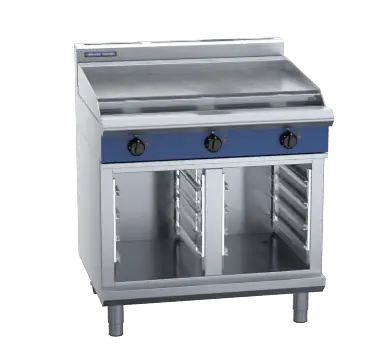

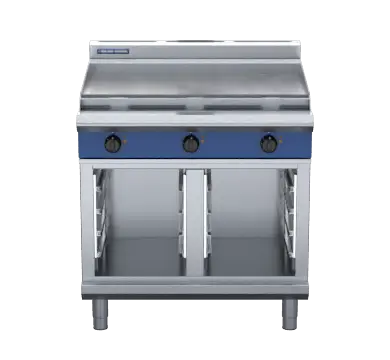

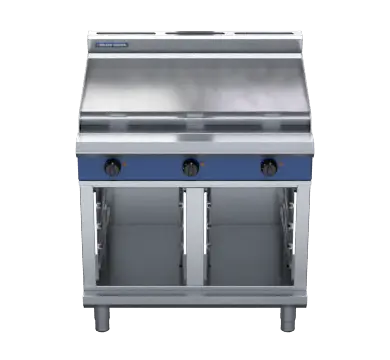

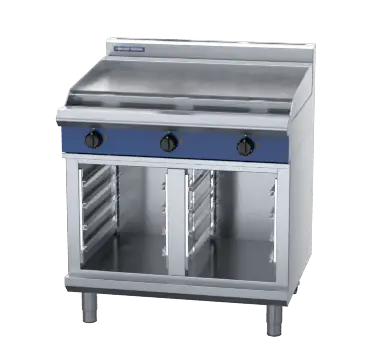

Blue Seal Evolution Series E516A-CB - 900mm Electric Cooktop Cabinet Base

Original price $10,507.71 - Original price $10,507.71
Original price
$10,507.71
$10,507.71 - $10,507.71
Current price $10,507.71
SKU E516A-CB

Blue Seal Evolution Series E516A-CB - 900mm Electric Cooktop Cabinet Base is a commercial cooktop for professional kitchens. Its 900mm format and Blue Seal heavy-duty construction make it a practical option for boiling, simmering, sauteing and day-to-day pan work.

  • 900mm griddle on cabinet base
  • 3 x 3.4kW griddle element
  • Radiant elements with energy regulator controls
  • Optional GN 1/1 4 position racking kit
  • Heavy-duty stainless steel finish
  • Heavy-duty reinforced control knobs
  • Adjustable feet and 2 additional rollers
  • Easy clean, installation and service
Why Choose This Product.

E516A-CB is a strong choice when the cook line needs flexible pan work without paying for an oven below. Its individually controlled electric top suits restaurant, hotel and production kitchens centred on boiling, simmering and sautéing, while enclosed storage keeps the station integrated and tidy. Choose it when the selected top layout mirrors the menu's real burner and griddle demand.

Simply Hospitality Notes

We'd specify E516A-CB where the productive main-line format and individually controlled electric top match the real service pattern. Before ordering, confirm top configuration, services, gas type, extraction and base support.

Product Guide

Use E516A-CB for restaurant, hotel and production kitchens centred on boiling, simmering and sautéing. Its individually controlled electric top works best where enclosed storage keeps the station integrated and tidy. Choose it when the selected top layout mirrors the menu's real burner and griddle demand; confirm top configuration, services, gas type, extraction and base support before purchase.

Brand Guide

About Blue Seal: Blue Seal Evolution is Moffat's heavy-duty modular cooking range for demanding professional kitchens. Its strength is configuration choice across gas, electric and induction equipment, allowing the cook line to be matched to the menu and service intensity. New Zealand-based Moffat support also strengthens the case for parts, servicing and technical guidance.

Blue Seal Evolution Series E516A-CB - 900mm Electric Cooktop Cabinet Base

Technical specifications

ModelE516A-CB
Product categoryCooktops
Electrical requirements10.2 kW, 400-415Vac, 50/60hz, 3P+N+E, 15A/phase max
Electrical connection220-240Vac, 50Hz, 1.8A, 1P+N+E; 3 pin plug 10A cordset fitted
DimensionsW: 900mm D: 812mm H: 1085mm
Packed weight195kg
Packed volume1.03m³

Available options

  • Adjustable feet at rear
  • Hot plate elements
  • (replace individual open radiant elements)
  • Ribbed griddle plates

Documents & downloads

Product documents
CAD & BIM files

  • Dimension W: 900mm D: 812mm H: 1085mm
  • Weight 195kg packed
