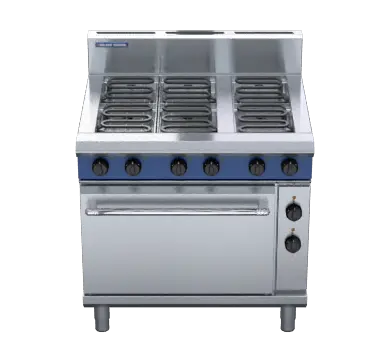

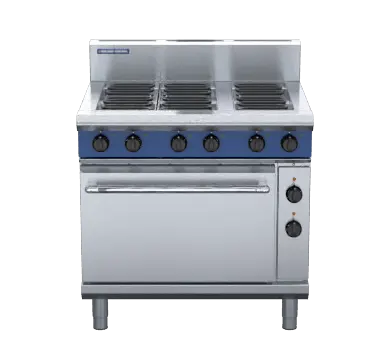

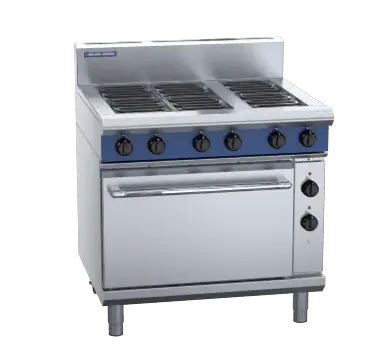

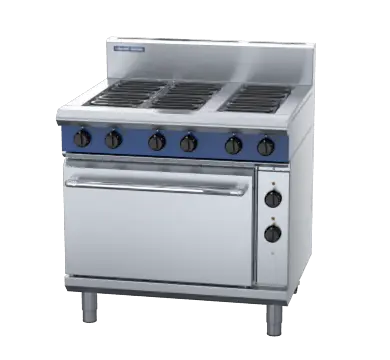

Blue Seal Evolution Series E56D - 900mm Electric Range Convection Oven

Blue Seal Evolution Series E56D - 900mm Electric Range Convection Oven

$13,326.86 - $13,326.86
$13,326.86
$13,326.86 - $13,326.86
$13,326.86
SKU E56D

Blue Seal Evolution Series E56D - 900mm Electric Range Convection Oven is a commercial oven range for professional kitchens. Its 900mm format and Blue Seal heavy-duty construction make it a practical option for combining top cooking with oven production in one coordinated line.

  • 6 radiant element cooktop on electric range convection oven
  • 2/1 GN electric convection oven

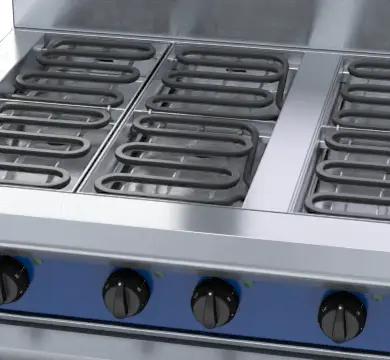

  • 6 x 2.4kW open radiant elements
  • 6.5kW heating elements
  • Six temperature setting simmer setting
  • GN 2/1 capacity with 4 position racking
  • Heavy-duty stainless steel finish
  • Heavy-duty reinforced control knobs
Why Choose This Product.

E56D is a strong choice when pan work and oven production need a single dependable centrepiece. Its individually controlled electric top suits restaurant, hotel and institutional lines combining top cooking with roasting or trays, while the oven below makes the same footprint work across two production tasks. Choose it when the exact top layout and oven style match the menu.
Simply Hospitality Notes

We'd specify E56D where the productive main-line format and individually controlled electric top match the real service pattern. Before ordering, confirm top configuration, oven type, services, extraction and door clearance.

Product Guide

Use E56D for restaurant, hotel and institutional lines combining top cooking with roasting or trays. Its individually controlled electric top works best where the oven below makes the same footprint work across two production tasks. Choose it when the exact top layout and oven style match the menu; confirm top configuration, oven type, services, extraction and door clearance before purchase.

Brand Guide

About Blue Seal: Blue Seal Evolution is Moffat's heavy-duty modular cooking range for demanding professional kitchens. Its strength is configuration choice across gas, electric and induction equipment, allowing the cook line to be matched to the menu and service intensity. New Zealand-based Moffat support also strengthens the case for parts, servicing and technical guidance.

Blue Seal Evolution Series E56D - 900mm Electric Range Convection Oven

Technical specifications

ModelE56D
Product categoryOven Ranges
Oven4.5kW bottom heat element; 2.0kW top heat element; Oven Fan Motor; 100W
Electrical requirements21.0 kW
Electrical connection20.9 kW max; 400-415Vac, 50/60hz, 3P+N+E; L1 29.3A max; L2 29.3A max; L3 28.3A max; Griddle Plate; 300mm Griddle cooking surface; 292mm x 475mm, 1387cm²; 600mm Griddle cooking surface; 592mm x 475mm, 2812cm²; 900mm Griddle cooking surface; 892mm x 475mm, 4237cm²
Oven dimensionsWidth 665mm; Depth 590mm; Height 400mm
Racksize 650mm x 600mm
DimensionsW: 900mm D: 812mm H: 1085mm
Packed weight263kg
Packed volume1.03m³

Available options

  • Adjustable feet at rear
  • Hot plate elements
  • (replace individual open radiant elements)
  • Ribbed griddle plates
  • Joining caps
  • Castors

Documents & downloads

Product documents
CAD & BIM files

  • Dimension W: 900mm D: 812mm H: 1085mm
  • Weight 263kg packed
