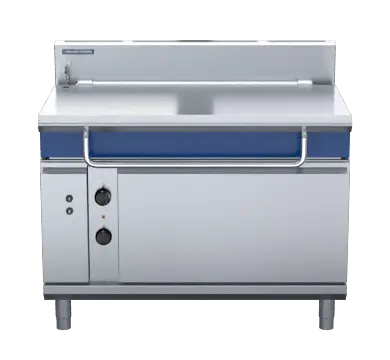

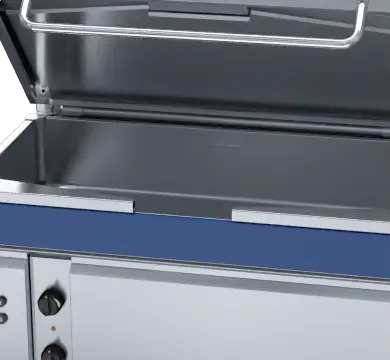

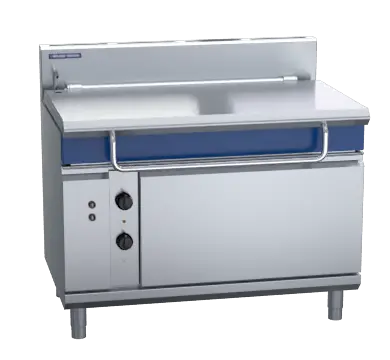

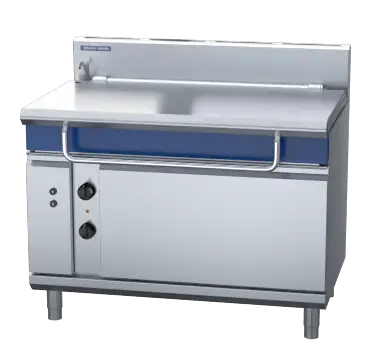

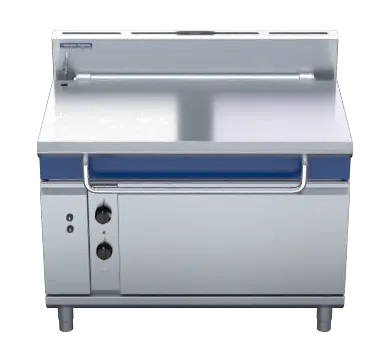

Blue Seal Evolution Series E580-12E - 1200mm Electric Tilting Bratt Pan

Original price $31,096.00 - Original price $31,096.00
Original price
$31,096.00
$31,096.00 - $31,096.00
Current price $31,096.00
SKU E580-12E

Blue Seal Evolution Series E580-12E - 1200mm Electric Tilting Bratt Pan is a commercial bratt pan for professional kitchens. Its 1200mm format and Blue Seal heavy-duty construction make it a practical option for braising, boiling, sauteing and high-volume batch cooking.

  • 1200mm electric tilting bratt pan
  • 120 litre capacity
  • 3 x 5.66kW stainless steel heating elements
  • 50-320C thermostatic control
  • Electric power tilting mechanism
  • Heavy-duty lid and hinge system
  • Galvanised steel chassis
  • Full stainless steel pan with 2mm pan body
Why Choose This Product.

E580-12E is a strong choice when one vessel must handle searing, simmering, braising and bulk discharge. Its powered-tilt pan suits production kitchens preparing sauces, curries, braises and batch meal components, while its modular format integrates cleanly into a heavy-duty cook line. Choose it when versatility and labour savings matter more than multiple smaller pans.

Simply Hospitality Notes

We'd specify E580-12E where the full-width high-throughput format and powered-tilt pan match the real service pattern. Before ordering, confirm tilt method, water and waste arrangements, ventilation and discharge clearance.

Product Guide

Use E580-12E for production kitchens preparing sauces, curries, braises and batch meal components. Its powered-tilt pan works best where its modular format integrates cleanly into a heavy-duty cook line. Choose it when versatility and labour savings matter more than multiple smaller pans; confirm tilt method, water and waste arrangements, ventilation and discharge clearance before purchase.

Brand Guide

About Blue Seal: Blue Seal Evolution is Moffat's heavy-duty modular cooking range for demanding professional kitchens. Its strength is configuration choice across gas, electric and induction equipment, allowing the cook line to be matched to the menu and service intensity. New Zealand-based Moffat support also strengthens the case for parts, servicing and technical guidance.

Blue Seal Evolution Series E580-12E - 1200mm Electric Tilting Bratt Pan

Technical specifications

ModelE580-12E
Product categoryBratt Pans
Elements3 x 5.66kw stainless steel sheathed heating; elements clad to pan base
Electrical requirements17kW; 400-415Vac, 50/60hz, 3P+N+E
Phase loadingL1 23A; L2 23A; L3 23A
Cooking surface1080mm x 450mm, 4860cm²; 215mm deep
Water connectionCold water connection; 1/2” tube connection via 15mm crox fitting; 550kpa, 80psi max water pressure
DimensionsW: 1200mm D: 812mm H: 1085mm
Packed weight300kg
Packed volume1.36m³

Available options

  • Joining caps

Documents & downloads

Product documents
CAD & BIM files

  • Dimension W: 1200mm D: 812mm H: 1085mm
  • Weight 300kg packed
