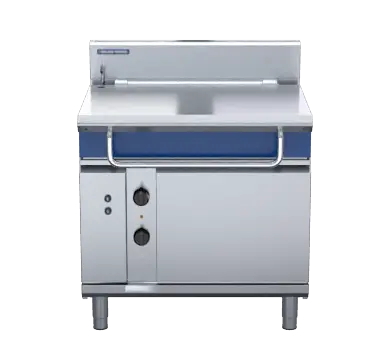

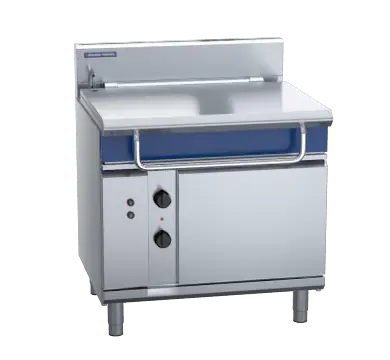

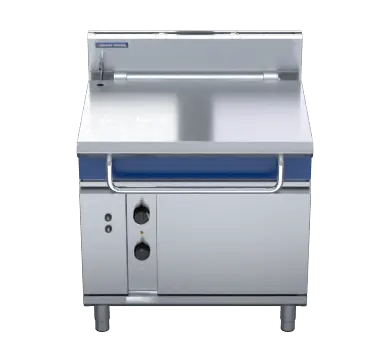

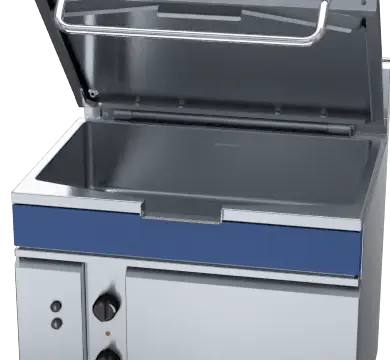

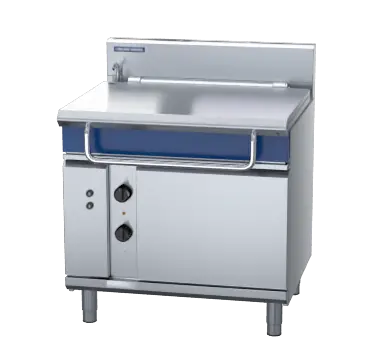

Blue Seal Evolution Series E580-8E - 900mm Electric Tilting Bratt Pan

Original price $22,809.43 - Original price $22,809.43
Original price
$22,809.43
$22,809.43 - $22,809.43
Current price $22,809.43
SKU E580-8E

Blue Seal Evolution Series E580-8E - 900mm Electric Tilting Bratt Pan is a commercial bratt pan for professional kitchens. Its 900mm format and Blue Seal heavy-duty construction make it a practical option for braising, boiling, sauteing and high-volume batch cooking.

  • 900mm electric tilting bratt pan
  • 80 litre capacity
  • 3 x 4kW stainless steel heating elements
  • 50-320C thermostatic control
  • Electric power tilting mechanism
  • Heavy-duty lid and hinge system
  • Galvanised steel chassis
  • Full stainless steel pan with 2mm pan body
Why Choose This Product.

E580-8E is a strong choice when one vessel must handle searing, simmering, braising and bulk discharge. Its powered-tilt pan suits production kitchens preparing sauces, curries, braises and batch meal components, while its modular format integrates cleanly into a heavy-duty cook line. Choose it when versatility and labour savings matter more than multiple smaller pans.

Simply Hospitality Notes

We'd specify E580-8E where the productive main-line format and powered-tilt pan match the real service pattern. Before ordering, confirm tilt method, water and waste arrangements, ventilation and discharge clearance.

Product Guide

Use E580-8E for production kitchens preparing sauces, curries, braises and batch meal components. Its powered-tilt pan works best where its modular format integrates cleanly into a heavy-duty cook line. Choose it when versatility and labour savings matter more than multiple smaller pans; confirm tilt method, water and waste arrangements, ventilation and discharge clearance before purchase.

Brand Guide

About Blue Seal: Blue Seal Evolution is Moffat's heavy-duty modular cooking range for demanding professional kitchens. Its strength is configuration choice across gas, electric and induction equipment, allowing the cook line to be matched to the menu and service intensity. New Zealand-based Moffat support also strengthens the case for parts, servicing and technical guidance.

Blue Seal Evolution Series E580-8E - 900mm Electric Tilting Bratt Pan

Technical specifications

ModelE580-8E
Product categoryBratt Pans
Elements3 x 4kw stainless steel sheathed heating; elements clad to pan base
Electrical requirements12kW; 400-415Vac, 50/60Hz, 3P+N+E
Phase loadingL1 17A; L2 17A; L3 17A
Cooking surface780mm x 450mm, 3510cm²; 215mm deep
Water connectionCold water connection; 1/2” tube connection via 15mm crox fitting; 550kpa, 80psi max water pressure
DimensionsW: 900mm D: 812mm H: 1085mm
Packed weight245kg
Packed volume1.03m³

Available options

  • Joining caps

Documents & downloads

Product documents
CAD & BIM files

  • Dimension W: 900mm D: 812mm H: 1085mm
  • Weight 245kg packed
