Blue Seal Evolution Series G514D-LS - 600mm Gas Griddle Leg Stand  Griddles

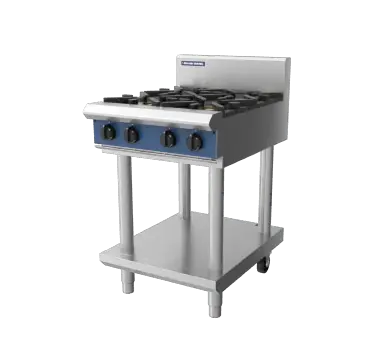

Blue Seal Evolution Series G514D-LS - 600mm Gas Griddle Leg Stand

$5,192.25 - $5,192.25
$5,192.25
$5,192.25 - $5,192.25
$5,192.25
SKU GP514-LS

The G514 Series is a 600 mm modular gas cooktop range offering open burners, griddle, or combination surfaces. Each unit features stainless steel construction, flame failure safety, and high-performance 28 MJ/hr burners for heavy-duty commercial use.

  • Burner Outputs:

    • Open Burners: 28 MJ/hr each (dual flame ring)

    • Griddle Burners: 20 MJ/hr each

  • Total Power:

    • G514D – 112 MJ/hr (31 kW)

    • G514C – 76 MJ/hr (21 kW)

    • G514B – 40 MJ/hr (11 kW)

  • Griddle Plate Options: 300 mm or 600 mm wide, 12 mm thick mild steel

  • Dimensions (W × D × H): 600 × 812 × 315 mm (bench); 915 mm height with base

  • Gas Connection: R 3/4" BSP male

  • Gas Types: Natural Gas or LP Gas (conversion kits included)

  • Net Weight: ~80 kg



Apply for Finance
Simply Hospitality Notes
Product Guide
Brand Guide

G514 Series Gas Cooktops – 600 mm Range

The G514 Series offers a compact, heavy-duty gas cooktop range available in multiple configurations — open burners, griddle, or combination models. Built from 304 stainless steel, these cooktops provide exceptional durability, high heat performance, and flexible installation options to suit any commercial kitchen setup.

Key Features

  • Heavy-duty construction with fully welded 304 stainless steel panels

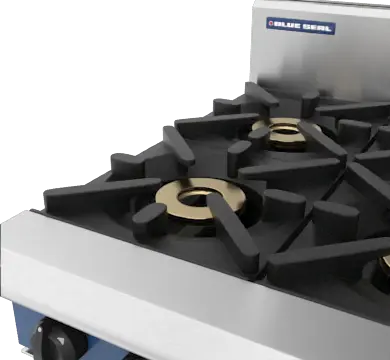

  • 28 MJ/hr open burners with dual flame rings for simmer control
  • 20 MJ/hr griddle burners with pilot, flame failure, and piezo ignition
  • Optional 300 mm or 600 mm griddle plate configurations
  • Flame failure protection as standard; optional pilot burners
  • Vitreous enamel potstands and burner covers for durability
  • Removable stainless steel spill trays for fast cleaning
  • Available as bench model, cabinet base, or leg stand model
  • Fully modular design for integration with other C and G series units

Construction & Cleaning

Each unit features a stainless steel exterior, vitreous enamel control panel, and removable burner components for easy servicing. The bench and stand models include adjustable stainless steel feet, while cabinet base models feature front feet and rear rollers for easy movement. Stainless steel spill trays and lift-off burner heads simplify cleaning and maintenance.

Available Models

  • G514D: 4 open burners (112 MJ/hr total, 31 kW)
  • G514C: 2 open burners + 300 mm griddle (76 MJ/hr total, 21 kW)
  • G514B: 600 mm griddle (40 MJ/hr total, 11 kW)

Brand

This range is part of a professional modular gas series designed for reliability, easy servicing, and long-term commercial performance — certified under ISO 9001 Quality Management standards.
