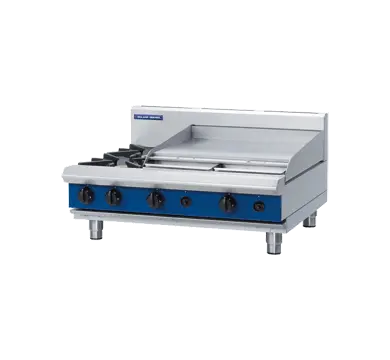

Blue Seal Evolution Series G516B-B - 900mm Gas Cooktop - Bench Model

Blue Seal Evolution Series G516B-B - 900mm Gas Cooktop - Bench Model

$7,176.00 - $7,176.00
$7,176.00
$7,176.00 - $7,176.00
$7,176.00
SKU G516B-B-NG

Blue Seal Evolution Series G516B-B - 900mm Gas Cooktop - Bench Model is a commercial cooktop for professional kitchens. Its 900mm format and Blue Seal heavy-duty construction make it a practical option for boiling, simmering, sauteing and day-to-day pan work.

  • 2 burners cooktop with 600mm griddle bench model
  • 2 x 28MJ/hr open burners, 2 x 20MJ/hr griddle burners
  • Heavy-duty stainless steel finish
  • Flame failure protection on all burners
  • Griddle fitted with push-button piezo ignition
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands
  • Heavy-duty reinforced control knobs
  • Four stainless steel bench legs with adjustable feet
Why Choose This Product.

G516B-B is a strong choice when the cook line needs flexible pan work without paying for an oven below. Its mixed burner-and-griddle top suits restaurant, hotel and production kitchens centred on boiling, simmering and sautéing, while it can sit on a suitable existing bench or chosen base. Choose it when the selected top layout mirrors the menu's real burner and griddle demand.
Simply Hospitality Notes

We'd specify G516B-B where the productive main-line format and mixed burner-and-griddle top match the real service pattern. Before ordering, confirm top configuration, services, gas type, extraction and base support, including the correct Natural Gas or LPG version.

Product Guide

Use G516B-B for restaurant, hotel and production kitchens centred on boiling, simmering and sautéing. Its mixed burner-and-griddle top works best where it can sit on a suitable existing bench or chosen base. Choose it when the selected top layout mirrors the menu's real burner and griddle demand; confirm top configuration, services, gas type, extraction and base support, including the correct Natural Gas or LPG version before purchase.

Brand Guide

About Blue Seal: Blue Seal Evolution is Moffat's heavy-duty modular cooking range for demanding professional kitchens. Its strength is configuration choice across gas, electric and induction equipment, allowing the cook line to be matched to the menu and service intensity. New Zealand-based Moffat support also strengthens the case for parts, servicing and technical guidance.

Blue Seal Evolution Series G516B-B - 900mm Gas Cooktop - Bench Model

Technical specifications

ModelG516B-B
Product categoryCooktops
BurnersOpen Burners 28MJ/hr dual flame ring with; simmer rate
GriddleBurners 20MJ/hr per 300mm section
Gas power96 MJ/hr, 26.6kW; Griddle Plate; 300mm Griddle cooking surface; 292mm x 475mm, 1387cm²; 600mm Griddle cooking surface; 592mm x 475mm, 2812cm²; 900mm Griddle cooking surface; 892mm x 475mm, 4237cm²
Gas connectionR 3/4 (BSP) male; All units supplied with Natural and LP gas regulator
Electrical connection220-240Vac, 50Hz, 1.8A, 1P+N+E; 3 pin 10A plug cordset fitted
Gas typesG516A; Available in Natural gas and LP gas, please specify when; ordering; Units supplied complete with gas type; conversion kits; Other gas types on request
DimensionsW: 900mm D: 812mm H: 485mm
Packed weight174kg
Packed volume0.55m³

Available options

  • Adjustable feet at rear
  • Simmer plates (replaces Potstand)
  • Ribbed griddle plates
  • Joining caps
  • Castors

Documents & downloads

Product documents
CAD & BIM files

  • Dimension W: 900mm D: 812mm H: 485mm
  • Weight 174kg packed
