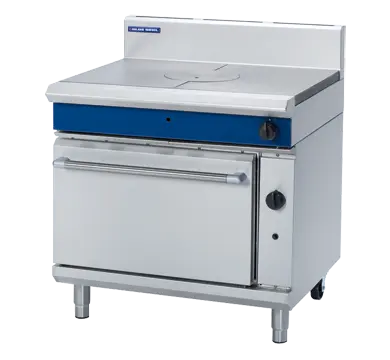

Blue Seal Evolution Series G570 - 900mm Gas Target Top Static Oven Range

Blue Seal Evolution Series G570 - 900mm Gas Target Top Static Oven Range

$12,814.29 - $12,814.29
$12,814.29
$12,814.29 - $12,814.29
$12,814.29
SKU G570-NG

Blue Seal Evolution Series G570 - 900mm Gas Target Top Static Oven Range is commercial target top oven ranges equipment for professional kitchens. Its 900mm format and Blue Seal heavy-duty construction make it a practical option for reliable commercial cooking in a demanding hospitality environment.

  • 900mm gas target top on gas range static oven
  • 45MJ/hr dual ring cast iron burner
  • 2/1 GN gas static oven
  • 30MJ oven burner
  • 80-300C thermostatic control
  • Flame failure protection and continuous pilot burner
  • Drop down door with welded frame
  • Fully welded and vitreous enamelled oven liner
Why Choose This Product.

G570 is a strong choice when several pots need graduated heat control while an oven remains productive below. Its graduated target-top cooking surface suits classical sauce, stockpot and hotel cook lines, while the oven below makes the same footprint work across two production tasks. Choose it when chefs will actively move pans between heat zones.
Simply Hospitality Notes

We'd specify G570 where the productive main-line format and graduated target-top cooking surface match the real service pattern. Before ordering, confirm gas, ventilation, top care, oven workflow and service access, including the correct Natural Gas or LPG version.

Product Guide

Use G570 for classical sauce, stockpot and hotel cook lines. Its graduated target-top cooking surface works best where the oven below makes the same footprint work across two production tasks. Choose it when chefs will actively move pans between heat zones; confirm gas, ventilation, top care, oven workflow and service access, including the correct Natural Gas or LPG version before purchase.

Brand Guide

About Blue Seal: Blue Seal Evolution is Moffat's heavy-duty modular cooking range for demanding professional kitchens. Its strength is configuration choice across gas, electric and induction equipment, allowing the cook line to be matched to the menu and service intensity. New Zealand-based Moffat support also strengthens the case for parts, servicing and technical guidance.

Blue Seal Evolution Series G570 - 900mm Gas Target Top Static Oven Range

Technical specifications

ModelG570
Product categoryTarget Top Oven Ranges
Burners45MJ dual ring cast iron - Target Top; 30MJ tubular - Oven
Gas power75MJ/hr, 20.8kW; Target Top
Cooking surface900mm x 625mm, 5625cm²; Centre 280mm diameter
Oven dimensionsWidth 665mm; Depth 590mm; Height 385mm
Racksize 660mm x 540mm
Gas connectionR 3/4 (BSP) male; Optional underside connection, please specify when; ordering; All units supplied with Natural and LP gas regulator
Gas typesAvailable in Natural gas and LP gas, please specify; when ordering; Units supplied complete with gas type; conversion kits; Other gas types on request
DimensionsW: 900mm D: 812mm H: 1085mm
Packed weight324kg
Packed volume1.03m³

Available options

  • Adjustable feet at rear
  • Joining caps
  • Castors

Documents & downloads

Product documents
CAD & BIM files

  • Dimension W: 900mm D: 812mm H: 1085mm
  • Weight 324kg packed
