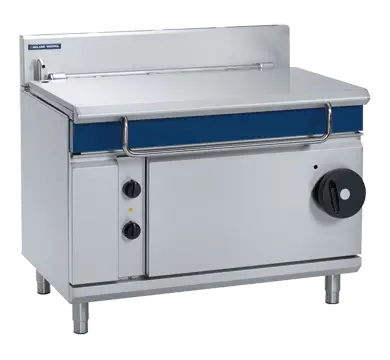

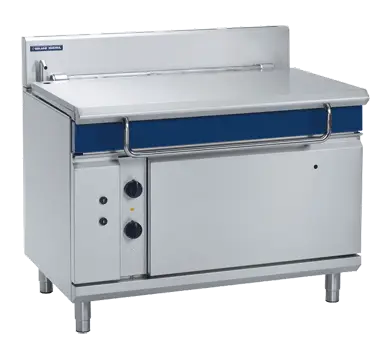

Blue Seal Evolution Series G580-12E - 1200mm Gas Tilting Bratt Pan

Original price $23,151.14 - Original price $23,151.14
Original price
$23,151.14
$23,151.14 - $23,151.14
Current price $23,151.14
SKU G580-12E-NG

Blue Seal Evolution Series G580-12E - 1200mm Gas Tilting Bratt Pan is a commercial bratt pan for professional kitchens. Its 1200mm format and Blue Seal heavy-duty construction make it a practical option for braising, boiling, sauteing and high-volume batch cooking.

  • 1200mm gas tilting bratt pan
  • 120 litre capacity
  • 90MJ/hr single 6 bar stainless steel burner
  • 50-320C electric thermostatic burner control
  • Electric power tilting mechanism
  • Fold away handle
  • Heavy-duty lid and hinge system
  • Galvanised steel chassis
Why Choose This Product.

G580-12E is a strong choice when one vessel must handle searing, simmering, braising and bulk discharge. Its tilting multi-purpose pan suits production kitchens preparing sauces, curries, braises and batch meal components, while its modular format integrates cleanly into a heavy-duty cook line. Choose it when versatility and labour savings matter more than multiple smaller pans.

Simply Hospitality Notes

We'd specify G580-12E where the full-width high-throughput format and tilting multi-purpose pan match the real service pattern. Before ordering, confirm tilt method, water and waste arrangements, ventilation and discharge clearance, including the correct Natural Gas or LPG version.

Product Guide

Use G580-12E for production kitchens preparing sauces, curries, braises and batch meal components. Its tilting multi-purpose pan works best where its modular format integrates cleanly into a heavy-duty cook line. Choose it when versatility and labour savings matter more than multiple smaller pans; confirm tilt method, water and waste arrangements, ventilation and discharge clearance, including the correct Natural Gas or LPG version before purchase.

Brand Guide

About Blue Seal: Blue Seal Evolution is Moffat's heavy-duty modular cooking range for demanding professional kitchens. Its strength is configuration choice across gas, electric and induction equipment, allowing the cook line to be matched to the menu and service intensity. New Zealand-based Moffat support also strengthens the case for parts, servicing and technical guidance.

Blue Seal Evolution Series G580-12E - 1200mm Gas Tilting Bratt Pan

Technical specifications

ModelG580-12E
Product categoryBratt Pans
BurnersSingle 8 bar stainless steel burner 25kW
Gas power(gross); 25kW, 85,300 Btu/hr
Cooking surface1080mm x 450mm, 4860cm²; 215mm deep
Gas connectionR 3/4 (BSP) male; All units supplied with Natural and LP gas regulator
Water connectionCold water connection; 1/2” tube connection via 15mm crox fitting; 550kPa, 80psi max water pressure
Electrical connection220-240Vac, 50/60Hz, 1A, 1P+N+E; 3 pin 10A plug cordset fitted
Gas typesAvailable in Natural gas and LP gas, please specify when ordering; Units supplied complete with gas type; conversion kits
DimensionsW: 1200mm D: 870mm H: 1255mm
Packed weight286kg
Packed volume1.36m³

Available options

  • Joining caps

Documents & downloads

Product documents
CAD & BIM files

  • Dimension W: 1200mm D: 870mm H: 1255mm
  • Weight 286kg packed
