Blue Seal Evolution Series G580-8E - 900mm Gas Tilting Bratt Pan

Original price $16,744.00 - Original price $16,744.00
Original price
$16,744.00
$16,744.00 - $16,744.00
Current price $16,744.00
SKU G580-8E-NG

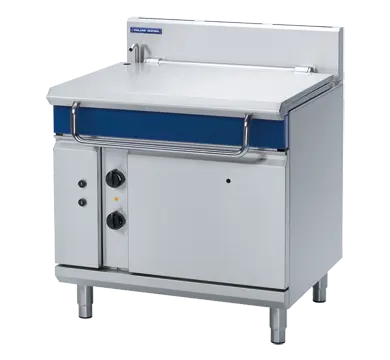

Blue Seal Evolution Series G580-8E - 900mm Gas Tilting Bratt Pan is a commercial bratt pan for professional kitchens. Its 900mm format and Blue Seal heavy-duty construction make it a practical option for braising, boiling, sauteing and high-volume batch cooking.

  • 900mm gas tilting bratt pan
  • 80 litre capacity
  • 75MJ/hr single 6 bar stainless steel burner
  • 50-320C electric thermostatic burner control
  • Electric power tilting mechanism
  • Fold away handle
  • Heavy-duty lid and hinge system
  • Galvanised steel chassis
Why Choose This Product.

G580-8E is a strong choice when one vessel must handle searing, simmering, braising and bulk discharge. Its tilting multi-purpose pan suits production kitchens preparing sauces, curries, braises and batch meal components, while its modular format integrates cleanly into a heavy-duty cook line. Choose it when versatility and labour savings matter more than multiple smaller pans.

Simply Hospitality Notes

We'd specify G580-8E where the productive main-line format and tilting multi-purpose pan match the real service pattern. Before ordering, confirm tilt method, water and waste arrangements, ventilation and discharge clearance, including the correct Natural Gas or LPG version.

Product Guide

Use G580-8E for production kitchens preparing sauces, curries, braises and batch meal components. Its tilting multi-purpose pan works best where its modular format integrates cleanly into a heavy-duty cook line. Choose it when versatility and labour savings matter more than multiple smaller pans; confirm tilt method, water and waste arrangements, ventilation and discharge clearance, including the correct Natural Gas or LPG version before purchase.

Brand Guide

About Blue Seal: Blue Seal Evolution is Moffat's heavy-duty modular cooking range for demanding professional kitchens. Its strength is configuration choice across gas, electric and induction equipment, allowing the cook line to be matched to the menu and service intensity. New Zealand-based Moffat support also strengthens the case for parts, servicing and technical guidance.

Blue Seal Evolution Series G580-8E - 900mm Gas Tilting Bratt Pan

Technical specifications

ModelG580-8E
Product categoryBratt Pans
BurnerSingle 6 bar stainless steel burner 72MJ/hr
Gas power72MJ/hr, 20kW
Cooking surface780mm x 450mm, 3510cm²; 215mm deep
Gas connectionR 3/4 (BSP) male; All units supplied with Natural and LP gas regulator
Water connectionCold water connection; 1/2” tube connection via 15mm crox fitting; 550kpa, 80psi max water pressure
Electrical connection220-240Vac, 50/60Hz, 1A, 1P+N+E; 3 pin 10A plug cordset fitted
Gas typesAvailable in Natural gas and LP gas, please specify; when ordering; Units supplied complete with gas type; conversion kits; Other gas types on request
DimensionsW: 900mm D: 812mm H: 1085mm
Packed weight236kg
Packed volume1.03m³

Available options

  • Joining caps

Documents & downloads

Product documents
CAD & BIM files

  • Dimension W: 900mm D: 812mm H: 1085mm
  • Weight 236kg packed
