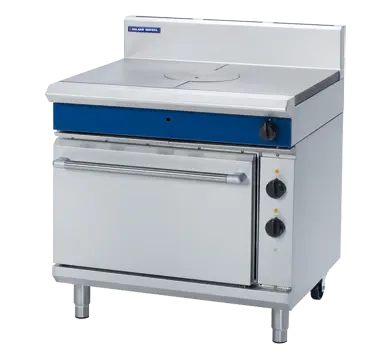

Blue Seal Evolution Series GE570 - 900mm Gas Target Top Electric Static Oven Range

Blue Seal Evolution Series GE570 - 900mm Gas Target Top Electric Static Oven Range

$14,095.71 - $14,095.71
$14,095.71
$14,095.71 - $14,095.71
$14,095.71
SKU GE570-NG

Blue Seal Evolution Series GE570 - 900mm Gas Target Top Electric Static Oven Range is commercial target top oven ranges equipment for professional kitchens. Its 900mm format and Blue Seal heavy-duty construction make it a practical option for reliable commercial cooking in a demanding hospitality environment.

  • 900mm gas target top on gas range electric static oven
  • 45MJ/hr dual ring cast iron burner
  • 2/1 GN electric static oven
  • 50-320C thermostatic control
  • Flame failure protection and continuous pilot burner
  • Drop down door with welded frame
  • Fully welded and vitreous enamelled oven liner
  • Cool touch stainless steel door handle
Why Choose This Product.

GE570 is a strong choice when several pots need graduated heat control while an oven remains productive below. Its graduated target-top cooking surface suits classical sauce, stockpot and hotel cook lines, while the oven below makes the same footprint work across two production tasks. Choose it when chefs will actively move pans between heat zones.
Simply Hospitality Notes

We'd specify GE570 where the productive main-line format and graduated target-top cooking surface match the real service pattern. Before ordering, confirm gas, ventilation, top care, oven workflow and service access, including the correct Natural Gas or LPG version.

Product Guide

Use GE570 for classical sauce, stockpot and hotel cook lines. Its graduated target-top cooking surface works best where the oven below makes the same footprint work across two production tasks. Choose it when chefs will actively move pans between heat zones; confirm gas, ventilation, top care, oven workflow and service access, including the correct Natural Gas or LPG version before purchase.

Brand Guide

About Blue Seal: Blue Seal Evolution is Moffat's heavy-duty modular cooking range for demanding professional kitchens. Its strength is configuration choice across gas, electric and induction equipment, allowing the cook line to be matched to the menu and service intensity. New Zealand-based Moffat support also strengthens the case for parts, servicing and technical guidance.

Blue Seal Evolution Series GE570 - 900mm Gas Target Top Electric Static Oven Range

Technical specifications

ModelGE570
Product categoryTarget Top Oven Ranges
Burners45MJ dual ring cast iron - Target Top
Elements4.5kW bottom heat element; 2.0kW top heat element
Gas power45MJ/hr, 12.5kW
Electrical requirements6.5kW; 1 phase connection:; 230-240Vac, 50/60hz, 1P+N+E, 27A; 3 phase connection:; 400-415Vac, 50/60hz, 3P+N+E; L1 9.4A; L2 9.4A; L3 8.3A; Target Top
Cooking surface900mm x 625mm, 5625cm²; Centre 280mm diameter
Oven dimensionsWidth 665mm; Depth 590mm; Height 385mm
Racksize 660mm x 540mm
Gas connectionR 3/4 (BSP) male; Optional underside connection, please specify when; ordering; All units supplied with Natural and LP gas regulator
DimensionsW: 900mm D: 812mm H: 1085mm
Packed weight340kg
Packed volume1.03m³
Gas typesNatural Gas or LPG

Available options

  • Adjustable feet at rear
  • Joining caps
  • Castors

Documents & downloads

Product documents
CAD & BIM files

  • Dimension W: 900mm D: 812mm H: 1085mm
  • Weight 340kg packed
