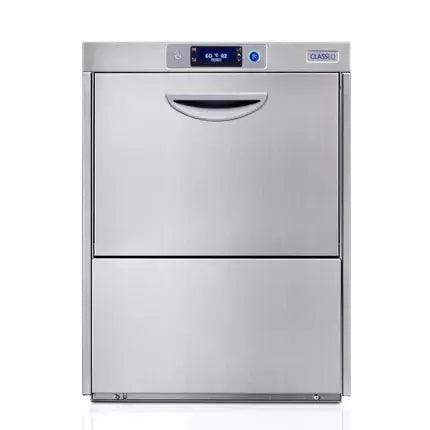

Classeq Series Under-Counter Dishwasher / D500 by Winterhalter  Undercounter Dishwasher

Classeq C500 Undercounter Dishwasher & Glasswasher

$6,079.00 - $6,079.00
$6,079.00
$6,079.00 - $6,079.00
$6,079.00
SKU 853V0004

A versatile 500mm-rack undercounter machine that can be commissioned for glass or dishwashing, giving busy bars and kitchens greater rack capacity without stepping up to a pass-through system.

  • 500 x 500mm rack with 352mm clear entry
  • Glass cycles of 1.5 or 2 minutes; dish cycles of 2, 3 or 5 minutes
  • Up to 1,000 glasses or 540 plates per hour theoretical
  • Low 2.1–2.75 litre rinse volume per cycle
  • Integral chemical, drain and rinse-booster pumps
  • Colour-led controls, Bluetooth support, filtration and removable wash arms

Why Choose This Product

Choose the C500 when the flexibility of one undercounter machine matters as much as capacity. Its 500mm rack accepts substantially larger loads than the C400, yet the machine remains approachable for staff and can be set up around either a glass-led bar or a plate-led kitchen workflow.
Simply Hospitality Notes

The C500 is often the best all-round undercounter choice when a venue wants one machine to handle both bar and kitchen demand. The important site decisions are the electrical configuration, water treatment, whether glass or dish programs dominate, and enough adjacent bench space to stage 500mm racks efficiently.

Product Guide

Choose the C500 over the C400 for 500mm rack compatibility, larger ware and greater theoretical output. Choose the C500DD if bakery trays, GN pans or crates need to pass through the chamber. Move to CP500 when hood operation, continuous rack movement and higher service throughput justify a pass-through layout.

Brand Guide

About Classeq: Classeq specialises in straightforward commercial warewashing built around reliable cleaning, simple operation and serviceable construction. The range progresses from compact undercounter machines through large-item double-door and high-throughput pass-through platforms. Colour-led controls, integrated pumps, accessible filtration and practical cleaning routines are designed to reduce operator complexity while supporting demanding hospitality service.

Operational Fit

The C500 is the general-purpose undercounter platform for venues that need a full 500mm rack without the space or volume requirement of a hood machine. It can anchor either a glass-led bar wash area or a plate-led kitchen station when the surrounding rack flow is planned correctly.

Technical Specifications

  • Dimensions (W x D x H): 600 x 600 x 820–850mm
  • Rack size: 500 x 500mm
  • Clear entry height: 352mm
  • Cycle times: Glass: 1.5 / 2 min; Dish: 2 / 3 / 5 min
  • Theoretical output: Up to 40 glass racks or 30 dish racks per hour; up to 1,000 glasses or 540 plates per hour
  • Typical rack capacity: Up to 25 pint glasses or 18 plates
  • Rinse water: 2.1–2.75L per cycle
  • Wash / rinse tank: 15L / 6.5L
  • Water connection: G3/4 BSP; 4L/min; 1–10 bar
  • Drain: 40mm; maximum waste height 600mm
  • Electrical options: 15A single phase standard; higher-output single- and three-phase configurations available
  • Net / gross weight: 52 / 60kg
  • Noise: Below 70dB

Operating Temperatures

  • Wash temperature: 60°C
  • Glass rinse temperature: 70°C
  • Dish rinse temperature: 82°C

Water & Drainage Requirements

  • Connection: G3/4 inch (3/4 inch BSP)
  • Incoming water temperature: 20-55°C
  • Required flow rate: 4L/min
  • Required flow pressure: 1-10 bar
  • Drain size: 40mm
  • Maximum waste height: 600mm from machine base

Electrical Requirements

  • Standard single phase: 15A, 2.5kW
  • Optional single phase: 30A, 6.5kW or 20A, 4.5kW
  • Optional three phase: 15A, 6.5kW
  • Configuration note: Confirm the ordered electrical build before arranging site services

Standard Inclusions

  • 1m water inlet hose
  • 1m flexible waste hose
  • Chemical bottle weights
  • Two 500 x 500mm racks; confirm the supplied rack and insert configuration on the final order

Compatible Baskets & Accessories

  • Classeq 500mm Universal Basket (SKU 30001197): Best flexible rack for cups, bowls, utensils and irregular mixed ware.
  • Classeq 500mm Plate Basket (SKU 30001198): Best for fast, repeatable plate-only loading.
  • Classeq 500mm Tall Glass Basket (SKU 30013206): Higher-sided support for varied tall glasses within the 352mm machine entry limit.
  • Classeq GR-500 Glass Relax Insert (SKU 30018551): Stabilises varied glass shapes in a compatible 500mm open basket.
  • Classeq 8-Compartment Cutlery Tray (SKU 3602258): Best for larger, sorted cutlery batches in a 500mm rack workflow.
  • Classeq CBS Cutlery Holder (SKU 30001167): Compact option for a smaller cutlery load within a compatible basket.
  • Classeq 500mm 49-Compartment Glass Rack (SKU 3802222): Best for repeatable loads of glasses that fit the 60 x 60mm cells and 352mm entry limit.

Controls & Standard Features

  • Drain pump
  • Rinse-booster pump
  • Detergent and rinse-aid pumps
  • Bluetooth connectivity for guides, settings and service information
  • Energy-saving standby mode
  • Colour-coded display
  • Double-skinned door and cabinet
  • Dual filtration and click-in / click-out wash arms
  • Hygiene and service reminders
  • Deep-clean mode, refresh cycle and descale program
  • Optional integral water softener
  • Range brochure states a two-year parts-and-labour warranty; confirm current New Zealand warranty terms

Installation & Operating Considerations

  • Commission for glass or dishwashing and set chemical dosing to the water quality and soil load.
  • Confirm the selected electrical configuration, incoming water conditions and 600mm maximum waste height before ordering.
  • Provide clean and dirty rack landing space so the larger 500mm capacity improves flow rather than creating congestion.
  • Check the largest plate and glass against the 352mm entry and select dedicated racks where protection or loading speed matters.
