Classeq Series Under-Counter Dishwasher / D500 by Winterhalter  Undercounter Dishwasher

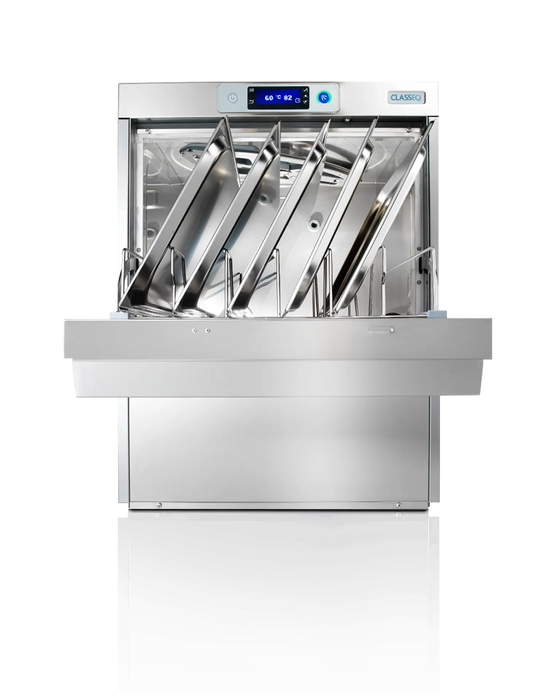

Classeq C500DD Double-Door Undercounter Warewasher

$8,184.00 - $8,184.00
$8,184.00
$8,184.00 - $8,184.00
$8,184.00
SKU 853V0013

A double-door undercounter warewasher engineered for bulky kitchen items, accepting 500mm racks plus compatible 400 x 600mm trays, 1/1 GN containers and crates that are awkward in a conventional front-opening machine.

  • Double-door access for bulky trays, containers and crates
  • Accepts items up to 400 x 600mm, including compatible 1/1 GN and bakery trays
  • 500 x 500mm rack format with 352mm clear entry
  • Glass and dish programs from 1.5 to 5 minutes
  • Integral chemical, drain and rinse-booster pumps
  • Supplied with plate basket, six-tray rack and cutlery holder

Why Choose This Product

Choose the C500DD when the wash problem is item shape, not simply rack volume. Its double-door opening gives trays, GN containers and crates a practical path into an undercounter machine, avoiding the need to hand-wash awkward items while retaining standard 500mm-rack capability for everyday ware.
Simply Hospitality Notes

This is the specialist undercounter model for awkward ware. If the venue only washes plates and glasses, the conventional C500 is simpler. The C500DD earns its place where bakery sheets, 1/1 GN containers or crates are frequent enough that hand washing is wasting labour or producing inconsistent results.

Product Guide

Choose the C500DD for large-format items within an undercounter footprint. Select the C500 for conventional 500mm glass and plate loads, or CP500 for sustained high-volume rack flow. Before quoting, verify the actual tray or container dimensions and include the correct rack package in the workflow.

Brand Guide

About Classeq: Classeq specialises in straightforward commercial warewashing built around reliable cleaning, simple operation and serviceable construction. The range progresses from compact undercounter machines through large-item double-door and high-throughput pass-through platforms. Colour-led controls, integrated pumps, accessible filtration and practical cleaning routines are designed to reduce operator complexity while supporting demanding hospitality service.

Operational Fit

The C500DD extends undercounter washing beyond ordinary plates and glasses. Double-door access and the dedicated tray rack make it suited to bakeries, production kitchens and foodservice sites regularly handling trays, 1/1 GN containers or compatible crates.

Technical Specifications

  • Dimensions (W x D x H): 600 x 671 x 820–850mm
  • Rack size: 500 x 500mm
  • Large-item capability: Compatible items up to 400 x 600mm, including 1/1 GN and 400 x 600 x 300mm bakery trays
  • Clear entry height: 352mm
  • Cycle times: Glass: 1.5 / 2 min; Dish: 2 / 3 / 5 min
  • Rinse water: 2.1–2.75L per cycle
  • Wash / rinse tank: 15L / 6.5L
  • Water connection: G3/4 BSP; 4L/min; 1–10 bar
  • Drain: 40mm; maximum waste height 600mm
  • Electrical: 15–30A single phase standard; optional 15A three phase; up to 6.58kW depending on configuration
  • Net / gross weight: 52 / 60kg
  • Noise: Below 70dB
  • Included racks: 500mm plate basket, six-tray rack and cutlery holder

Operating Temperatures

  • Wash temperature: 60°C platform setting
  • Glass rinse temperature: 70°C platform setting
  • Dish rinse temperature: 82°C platform setting

Water & Drainage Requirements

  • Connection: G3/4 inch (3/4 inch BSP)
  • Incoming water temperature: 20-55°C
  • Required flow rate: 4L/min
  • Required flow pressure: 1-10 bar
  • Drain size: 40mm
  • Maximum waste height: 600mm from machine base

Electrical Requirements

  • Standard single phase: 15A to 30A, depending on selected build
  • Optional three phase: 15A
  • Maximum published connected load: 6.58kW; confirm the selected configuration

Standard Inclusions

  • 1m water connection hose
  • 1m flexible waste hose
  • Chemical pump lines with bottle weights
  • One 500 x 500mm plate rack - SKU 30001198
  • One six-tray rack - SKU 30019192
  • One cutlery holder - SKU 30001167

Compatible Baskets & Accessories

  • Classeq 6 Tray Rack (SKU 30019192): Purpose-built for up to six compatible trays and included in the recorded standard rack package.
  • Classeq 500mm Plate Basket (SKU 30001198): Dedicated plate basket included in the recorded standard rack package.
  • Classeq CBS Cutlery Holder (SKU 30001167): Compact cutlery holder included in the recorded standard rack package.
  • Classeq 500mm Universal Basket (SKU 30001197): Best optional general rack for mixed ware and containers that do not need fixed supports.
  • Classeq 500mm Tall Glass Basket (SKU 30013206): Optional higher-sided glass support, subject to the 352mm clear entry.
  • Classeq GR-500 Glass Relax Insert (SKU 30018551): Optional stabilising insert for varied glassware in a compatible 500mm basket.

Controls & Standard Features

  • Drain pump
  • Rinse-booster pump
  • Integrated chemical pumps
  • Bluetooth connectivity
  • Energy-saving mode
  • Colour-coded display
  • Double-skinned door and cabinet
  • Hygiene and service reminders
  • Deep-clean mode and refresh cycle
  • Double-door access for compatible trays, 1/1 GN containers and crates

Installation & Operating Considerations

  • Measure the largest trays, GN pans and crates; the stated large-item envelope does not guarantee every rim, handle or depth will clear.
  • Allow door-opening clearance on both access sides and plan safe support for long trays during loading and unloading.
  • Confirm water, drain, chemical and electrical services, including the 600mm maximum waste height.
  • Use the dedicated tray rack for repeatable separation rather than leaning several trays together in a universal basket.
