Classeq CP500SR High Volume Passthrough Dishwasher with Steam RecoveryΒ  Passthrough Dishwashers

Classeq CP500SR Pass-Through Dishwasher with Steam Recovery

$12,922.00 - $12,922.00
$12,922.00
$12,922.00 - $12,922.00
$12,922.00
SKU 953V0125

A high-volume 500mm-rack pass-through dishwasher with integrated steam and heat recovery, designed to reduce the hot vapour released into the wash area while retaining CP500 throughput and workflow.

  • Integrated steam and heat recovery system
  • 500 x 500mm rack with 440mm clear entry
  • 1.5, 3, 5 and 7 minute programs
  • Up to 720 plates per hour theoretical
  • Straight-through or corner installation
  • Integrated chemical, drain and rinse-booster pumps with guided controls

Why Choose This Product

Choose the CP500SR when the wash area's heat and steam are genuine operational problems, not just minor discomforts. It preserves the throughput and rack flow of a CP500 while recovering energy and reducing vapour at hood openingβ€”particularly valuable in compact kitchens or sites where adding mechanical extraction is difficult.
Simply Hospitality Notes

The CP500SR is worth the premium where opening a conventional hood repeatedly would load the room with heat and vapour. It is not simply a higher-spec CP500: the site needs sufficient height, cold-water conditions and electrical capacity, and ventilation compliance should still be confirmed for the actual installation.

Product Guide

Choose CP500SR for high-volume pass-through washing where operator comfort, steam reduction and heat recovery materially improve the room. Choose CP500 when conventional ventilation and heat load are acceptable. Compare both on total installation requirementsβ€”not just machine priceβ€”and confirm the final table layout before ordering.

Brand Guide

About Classeq: Classeq specialises in straightforward commercial warewashing built around reliable cleaning, simple operation and serviceable construction. The range progresses from compact undercounter machines through large-item double-door and high-throughput pass-through platforms. Colour-led controls, integrated pumps, accessible filtration and practical cleaning routines are designed to reduce operator complexity while supporting demanding hospitality service.

Operational Fit

The CP500SR combines pass-through rack flow with an integrated steam-recovery stage. It suits higher-volume rooms where repeated hood opening would otherwise release unwanted heat and vapour into the operator's workspace.

Technical Specifications

  • Dimensions (W x D x H): 635 x 713 x 2012–2072mm including steam-recovery unit
  • Rack size: 500 x 500mm
  • Clear entry height: 440mm
  • Cycle times: 1.5 / 3 / 5 / 7 minutes
  • Theoretical output: Up to 720 plates per hour
  • Rinse water: 3L per cycle
  • Wash tank: 30L
  • Water inlet: Maximum 35Β°C; 4L/min
  • Drain: 40mm
  • Standard electrical supply: 415V three phase, 20A, approximately 9.5kW
  • Net / gross weight: 130 / 178kg
  • Noise: Approximately 70dB(A)
  • Installation layout: Straight-through or corner

Operating Temperatures

  • Dish wash temperature: 60Β°C
  • Utensil wash temperature: 62Β°C
  • Dish rinse temperature: 82Β°C
  • Utensil rinse temperature: 85Β°C

Water & Drainage Requirements

  • Connection: G3/4 inch (3/4 inch BSP)
  • Maximum incoming water temperature: 35Β°C
  • Required flow rate: 4L/min
  • Required pressure: 1-6 bar in the current range brochure
  • Drain size: 40mm
  • Maximum waste height: 700mm

Electrical Requirements

  • Standard supply: 415V three phase, 20A
  • Published connected load: Approximately 9.5-9.6kW depending on document revision; confirm supplied build
  • Connection lead: One three-phase lead is recorded as a standard inclusion

Standard Inclusions

  • One three-phase lead
  • 1m flexible water connection hose
  • 1m flexible waste hose
  • One 500 x 500mm flat cup basket
  • One 500 x 500mm peg plate basket
  • One eight-compartment cutlery basket

Compatible Baskets & Accessories

  • Classeq 500mm Universal Basket (SKU 30001197): Best general rack for cups, bowls and mixed ware; a flat 500mm cup basket is recorded as standard equipment.
  • Classeq 500mm Plate Basket (SKU 30001198): Best for repeatable plate loads; a 500mm peg plate basket is recorded as standard equipment.
  • Classeq 8-Compartment Cutlery Tray (SKU 3602258): Best for larger utensil batches and consistent sorting; an eight-compartment cutlery basket is recorded as standard equipment.
  • Classeq 500mm Tall Glass Basket (SKU 30013206): Useful for tall glassware where the rack-and-glass assembly remains within the 440mm entry.
  • Classeq GR-500 Glass Relax Insert (SKU 30018551): Supports varied glass shapes in a compatible 500mm open basket.
  • Classeq 500mm 49-Compartment Glass Rack (SKU 3802222): Best for standardised glasses fitting the 60 x 60mm cells and 440mm entry.

Controls & Standard Features

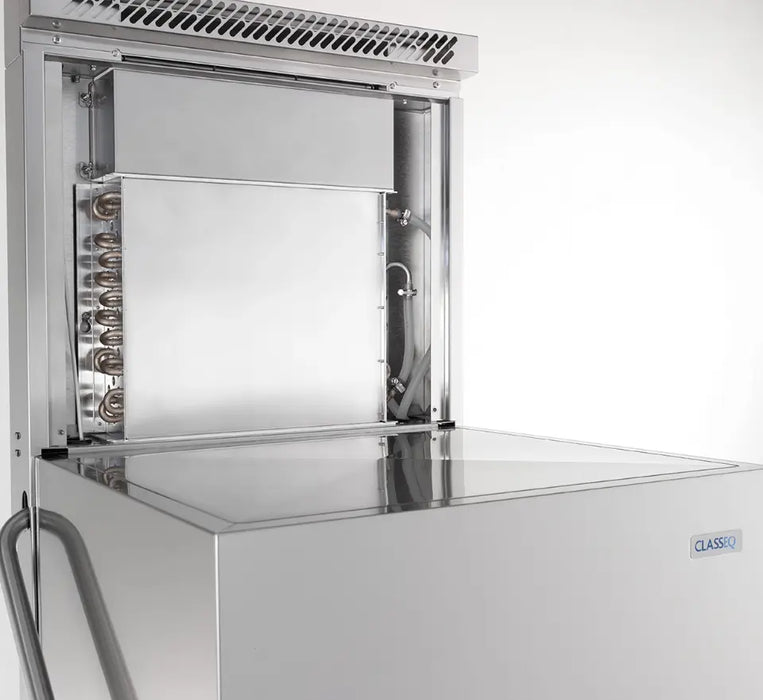

  • Exhaust-air heat and steam recovery

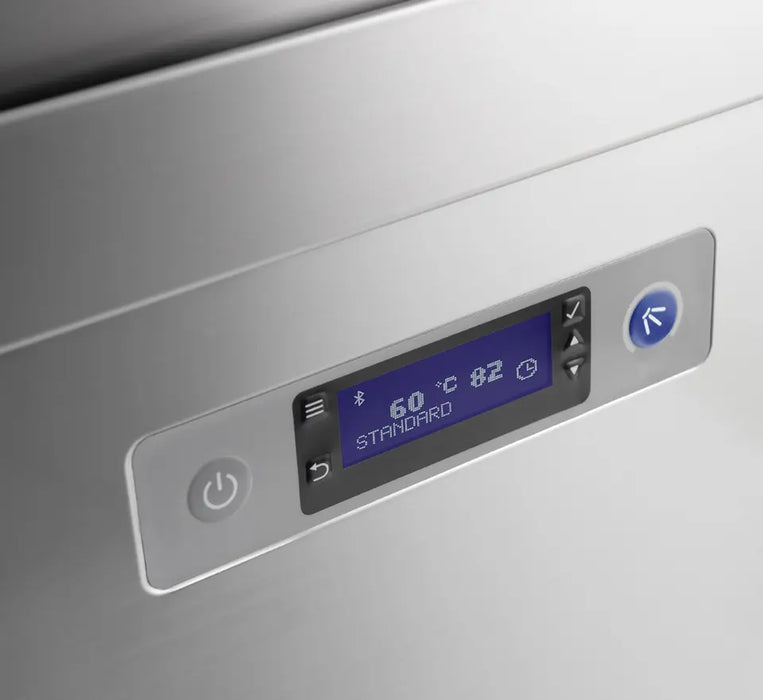

  • LCD wash and rinse temperature display
  • Integrated drain pump
  • Integrated rinse pump
  • Integrated detergent and rinse-aid pumps
  • Dual filtration
  • Click-in / click-out single-piece wash fields
  • WaterMark approval
  • Certified by the manufacturer for use without mechanical extraction; project compliance must still be confirmed
  • Straight-through or corner installation
  • Made in the United Kingdom

Installation & Operating Considerations

  • Allow the full published height of the steam-recovery assembly and check ceiling, duct, shelf and service obstructions.
  • The manufacturer's no-mechanical-extraction positioning does not replace project-specific compliance review; confirm ventilation requirements with the relevant consultant or authority.
  • Plan straight-through or corner tabling, clean and dirty rack landing areas, water treatment, drainage, chemicals and the specified three-phase supply.
  • Use a cold-water inlet within the published limit so the heat-recovery process can operate as intended.
