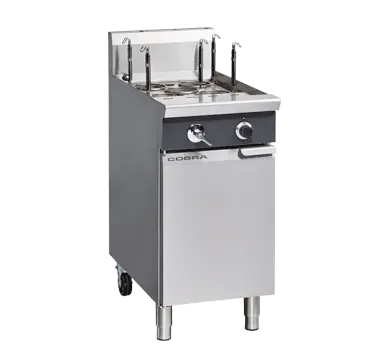

Cobra CN4 – 450 mm Single Pan Gas Noodle Cooker
The Cobra CN4 is a compact, high-performance gas noodle cooker built for professional kitchens. Its 40-litre stainless-steel pan, infra-red burner system, and five-basket configuration make it ideal for consistent, high-output noodle preparation. Designed for durability, efficiency, and easy cleaning, it’s a fully modular unit that integrates seamlessly into any Cobra cooking suite.
Key features
- High-performance single pan gas noodle cooker
- Patented infra-red burner system for even heat distribution
- 40 L water capacity stainless-steel pan
- Integrated water fill and starch skimming faucet
- Includes five stainless-steel noodle baskets
- Hinged basket drain tray for convenience
- Safety cut-out thermostat to prevent boil-out
- Easy-clean open pan design
- Fully modular with matching Cobra cooking equipment
- Available in Natural Gas or LPG (specify on order)
Construction & design
- 1.5 mm 316 grade stainless-steel pan
- Stainless-steel front, sides, and splashback
- Vitreous enamelled control panel for heat resistance
- Double-skin door with stainless-steel exterior
- 304 stainless-steel basket support tray and baskets
- 25 mm skimming overflow and pan drain valve
- 63 mm diameter stainless-steel adjustable legs (front) and rear rollers
Controls
- Heat-resistant control knob with variable settings
- High boil to simmer burner control
- Fine-adjustment water faucet for filling and starch skimming
- Safety cut-out thermostat for pan protection
- Millivolt gas valve system (no electrical supply needed)
- Flame-failure protection on pilot
- Piezo ignition to standing pilot burner
Specifications
- Model: CN4
- Pan Capacity: 40 L
- Burner Type: 1 × infra-red burner
- Gas Output: 47 MJ/hr (13 kW NG) | 46 MJ/hr (12.8 kW LPG)
- Basket Dimensions: Ø140 × 150 mm deep (each)
- Basket Quantity: 5 stainless-steel baskets
- Gas Connection: R ¾ (BSP) male – 50 mm LH side, 34 mm rear, 140 mm floor height
- Water Connection: R ½ (BSP) male – 50 mm LH side, 556 mm rear, 140 mm floor height
- Drain Connection: 1” BSP male – 118 mm LH side, 470 mm rear, 170 mm floor height
- Dimensions (W × D × H): 450 × 800 × 915 mm (1 085 mm incl. splashback)
- Net Weight: 78 kg | Packed Weight: 95.5 kg (0.587 m³)
- Gas Type: Natural or LPG
- Certification: AGA 7027G | ISO 9001 Quality Management Standard
Cleaning & maintenance
- Open stainless-steel pan for fast cleaning
- Hinged basket drain tray and removable support tray
- 25 mm drain valve for efficient emptying
- Easy-clean stainless-steel exterior
- Front access to serviceable components
