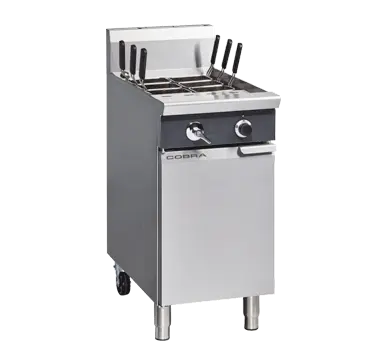

Cobra CP4 – 450 mm Single Pan Gas Pasta Cooker
The Cobra CP4 is a compact, high-performance gas pasta cooker built for demanding commercial kitchens. Featuring a 40-litre stainless-steel open pan, patented infra-red burner system, and integrated water fill and skimming faucet, it delivers consistent cooking results with minimal effort. Designed for reliability, speed, and hygiene, this unit is fully modular to fit seamlessly into your Cobra cooking line-up.
Key features
- High-performance single pan gas pasta cooker
- Patented infra-red burner system for even heating
- 40 L water capacity with open pan design
- Easy-clean 316 grade stainless-steel pan and exterior
- Integrated water fill and starch skimming faucet
- Supplied with six stainless-steel pasta baskets
- Hinged basket drain stand for convenience
- Safety cut-out thermostat prevents empty pan boil-out
- Fully modular to match other Cobra cooking units
- Available in Natural or LPG gas (specify when ordering)
Construction & design
- 1.5 mm 316 grade stainless-steel pan
- Stainless-steel front, sides, and splashback
- Vitreous enamelled control panel
- Double skin door with stainless-steel exterior
- 304 stainless-steel wire basket support grid
- Six stainless-steel perforated baskets with moulded handles
- 25 mm pan drain valve and skimming overflow
- 63 mm stainless-steel adjustable legs (front) and rear rollers
Controls
- Large heat-resistant control knob
- Variable high boil to standby simmer burner control
- Fine water faucet for pan filling and starch skimming
- Pan protection safety thermostat
- Millivolt gas valve system (no electrical supply required)
- Flame-failure protection on pilot
- Piezo ignition to standing pilot burner
Specifications
- Model: CP4
- Pan Capacity: 40 L
- Burner System: 1 × infra-red burner
- Gas Power (Gross): 47 MJ/hr (13 kW Natural Gas) | 46 MJ/hr (12.8 kW LPG)
- Basket Dimensions: 125 × 165 × 180 mm (each)
- Basket Quantity: 6 stainless-steel baskets
- Gas Connection: R ¾ (BSP) male – 50 mm LH side, 34 mm rear, 140 mm floor height
- Water Connection: R ½ (BSP) male – 50 mm LH side, 556 mm rear, 140 mm floor height
- Drain Connection: 1” BSP male – 118 mm LH side, 470 mm rear, 170 mm floor height
- Dimensions (W × D × H): 450 × 800 × 915 mm (1 085 mm incl. splashback)
- Net Weight: 78 kg | Packed Weight: 95.5 kg (0.587 m³)
- Gas Type: Natural or LPG
- Certification: AGA 7027G | ISO 9001 Quality Management Standard
Cleaning & maintenance
- Open stainless-steel pan for easy cleaning
- Hinged basket drain tray and removable basket support grid
- 25 mm drain valve for effective emptying
- Front service access for all components
- Stainless-steel exterior for fast wipe-down
