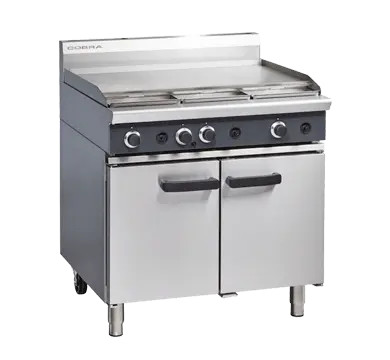

Cobra CR9A – 900 mm Griddle Gas Range with Static Oven
The Cobra CR9A delivers consistent, high-output performance with its full 900 mm griddle surface and high-crown static oven. Built for heavy-duty commercial use, it’s the perfect combination of reliability, versatility, and easy maintenance in a compact footprint.
Key Features
- Three griddle burners rated at 20 MJ/hr (5 kW each)
- Static oven rated at 28 MJ/hr (7.8 kW)
- Total gas output 88 MJ/hr (24.4 kW)
- 12 mm machined mild-steel griddle plate for even heat distribution
- High-crown static oven fits one 2/1 GN or two 1/1 GN pans
- Pilot, flame-failure and piezo ignition on griddle burners
- Vitreous-enamelled oven liner and spill tray for durability
- French-door oven system for easy access
- Adjustable front feet and rear rollers for positioning
- Fully modular design to match other Cobra units
Construction & Design
- 12 mm machined surface mild-steel griddle plate
- Stainless-steel front, sides and splashback finish
- Vitreous-enamel control panel and oven liner
- Supplied with one chrome-plated oven rack and vitreous-enamel spill tray
- Front-mounted grease tray for easy cleaning
Controls
- Large easy-use control knobs with variable high-to-low settings
- Pilot, flame-failure and piezo ignition standard on griddle burners
- Thermostatic oven control range 100 °C – 310 °C
- Piezo ignition to oven pilot with flame-failure safety
Specifications
- Model: CR9A
- Gas Power (Gross): 88 MJ/hr (24.4 kW total)
- Griddle Burners: 3 × 20 MJ/hr (5 kW each)
- Oven Burner: 1 × 28 MJ/hr (7.8 kW)
- Oven Dimensions (W × D × H): 760 × 615 × 365 mm
- Rack Size: 750 × 590 mm (4 positions)
- Overall Dimensions (W × D × H): 900 × 800 × 915 mm (1085 mm with splashback)
- Net Weight: 136 kg | Packed Weight: 176 kg (1.21 m³)
- Gas Connection: R 3/4 (BSP) male – 130 mm RHS, 20 mm rear, 655 mm from floor
- Gas Type: Natural or LPG (specify on order)
- Certification: AGA 7225G | ISO 9001 manufacture
Cleaning & Servicing
- Stainless-steel exterior for easy wipe-down maintenance
- Removable grease trays and burner assemblies
- Front access to all service components
