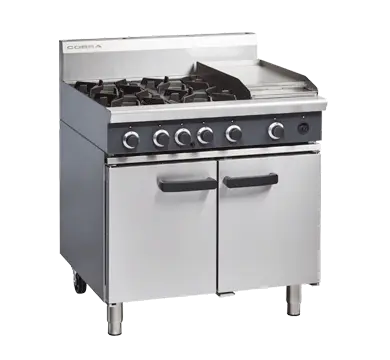

Cobra CR9C – 900 mm Four Burner + Griddle Gas Range with Static Oven
The Cobra CR9C offers the versatility of four open burners and a 300 mm griddle plate, paired with a high-crown static oven. Built for performance, precision and durability, this 900 mm range is ideal for commercial kitchens needing reliable, consistent results every day.
Key Features
- Four open burners rated at 22 MJ/hr (5.5 kW each)
- One griddle burner rated at 20 MJ/hr (5 kW)
- Static oven rated at 28 MJ/hr (7.8 kW)
- Total gas output 136 MJ/hr (37.8 kW)
- 12 mm machined mild-steel griddle plate for even heat distribution
- High-crown oven fits one 2/1 GN or two 1/1 GN pans
- Flame-failure protection standard on open burners
- Pilot, flame-failure and piezo ignition system on griddle burner
- French-door oven system for easy access
- Vitreous-enamelled oven liner and pot stands for durability
- Stainless-steel front, sides and splashback finish
- Adjustable front feet with rear rollers for easy positioning
Construction & Design
- Cast-iron open burner heads with vitreous-enamel caps
- 12 mm machined surface mild-steel griddle plate (right-hand side standard)
- Vitreous-enamel control panel, pot stands and oven liner
- Stainless-steel front, sides, doors and splashback
- Supplied with one chrome-plated oven rack and vitreous-enamel spill tray
- Fully modular design to match other Cobra units
Controls
- Large easy-use front control knobs
- Variable high-to-low adjustment on open and griddle burners
- Flame-failure protection standard on open burners
- Pilot, flame-failure and piezo ignition on griddle burner
- Thermostatic oven control range 100 °C – 310 °C
- Piezo ignition to oven pilot with flame-failure safety
Specifications
- Model: CR9C
- Gas Power (Gross): 136 MJ/hr (37.8 kW total)
- Open Burners: 4 × 22 MJ/hr (5.5 kW each)
- Griddle Burner: 1 × 20 MJ/hr (5 kW)
- Oven Burner: 1 × 28 MJ/hr (7.8 kW)
- Oven Dimensions (W × D × H): 760 × 615 × 365 mm
- Rack Size: 750 × 590 mm (4 positions)
- Overall Dimensions (W × D × H): 900 × 800 × 915 mm (1085 mm with splashback)
- Net Weight: 127.5 kg | Packed Weight: 168 kg (1.21 m³)
- Gas Connection: R 3/4 (BSP) male – 130 mm from RHS, 20 mm rear, 655 mm from floor
- Gas Type: Natural or LPG (specify when ordering)
- Certification: AGA 7225G | ISO 9001 manufacture
Cleaning & Servicing
- Easy-clean stainless-steel exterior
- Lift-off burner caps and removable burners for maintenance
- Removable stainless-steel spill and grease trays
- Front access to all serviceable components
