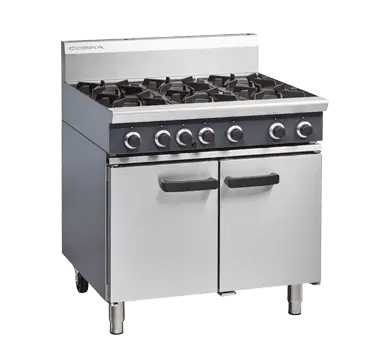

Cobra CR9D – 900 mm Six Burner Gas Range with Static Oven
The Cobra CR9D is a heavy-duty 900 mm gas range combining six powerful open burners with a high-crown static oven. Designed for commercial performance and daily reliability, it delivers flexibility, even heat distribution, and long-term durability in stainless steel construction.
Key Features
- Six open burners rated at 22 MJ/hr each (5.5 kW per burner)
- Static oven rated at 28 MJ/hr (7.8 kW)
- Total output: 160 MJ/hr (44.4 kW)
- Flame-failure protection standard on open burners
- Optional pilot and flame-failure system on open burners available on request
- High-crown static oven with 2/1 GN or dual 1/1 GN capacity
- Thermostatic oven control from 100°C to 310°C
- Piezo ignition to oven pilot with flame-failure protection
- Vitreous-enamelled pot stands and oven liner for durability
- Stainless-steel front, sides, splashback and spill trays
- French-door oven system for safe and efficient access
- Adjustable front legs and rear rollers for easy positioning
- Fully modular design to integrate with other Cobra Series equipment
Construction & Design
- Cast-iron open burner heads with vitreous-enamelled caps
- Vitreous-enamelled pot stands and control panel
- Vitreous-enamelled oven liner with four rack positions
- One chrome-plated oven rack supplied as standard
- Removable stainless-steel spill and grease trays for easy cleaning
- Stainless-steel front, sides, splashback and doors
- 63 mm stainless-steel adjustable front legs with rear rollers
Controls
- Large front-mounted control knobs for precise heat adjustment
- Variable high-to-low burner settings on all open burners
- Flame-failure protection on all burners
- Thermostatic oven control from 100°C to 310°C
- Piezo ignition to oven pilot with flame-failure safety
Specifications
- Model: CR9D
- Gas Power (Gross): 160 MJ/hr (44.4 kW total)
- Open Burners: 6 × 22 MJ/hr (5.5 kW each)
- Oven Burner: 1 × 28 MJ/hr (7.8 kW)
- Oven Dimensions (W × D × H): 760 × 615 × 365 mm
- Rack Size: 750 × 590 mm (4 rack positions)
- Dimensions (W × D × H): 900 × 800 × 915 mm (1085 mm with splashback)
- Net Weight: 121.5 kg | Packed Weight: 162 kg (1.21 m³)
- Gas Connection: R 3/4 (BSP) male – 130 mm from RH side, 20 mm from rear, 655 mm from floor
- Gas Type: Natural or LPG (specify when ordering)
- Certification: AGA 7225G | ISO 9001 manufacture
Cleaning & Servicing
- Stainless-steel exterior for easy cleaning and durability
- Lift-off open burner caps and removable burners
- Removable stainless-steel spill trays for quick maintenance
- Front service access to all internal components
