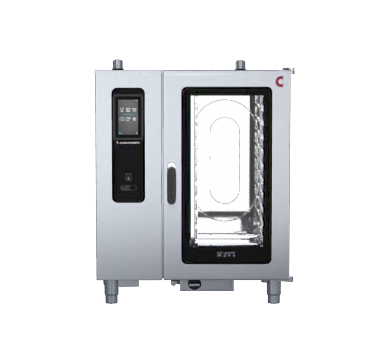

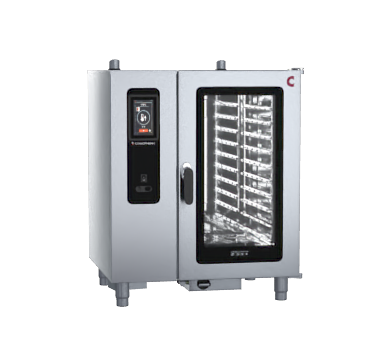

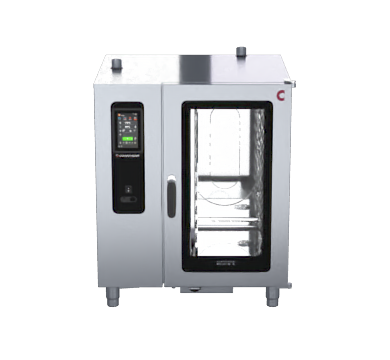

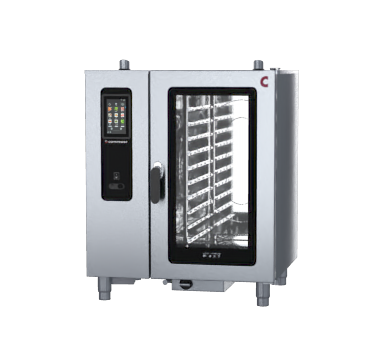

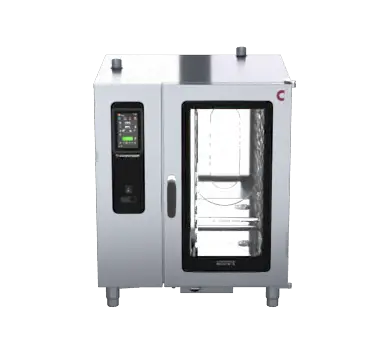

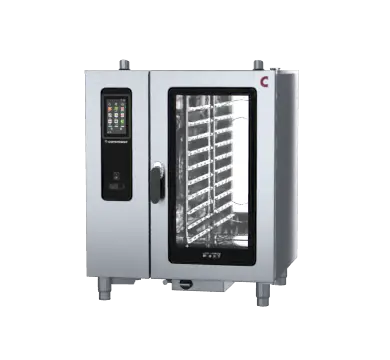

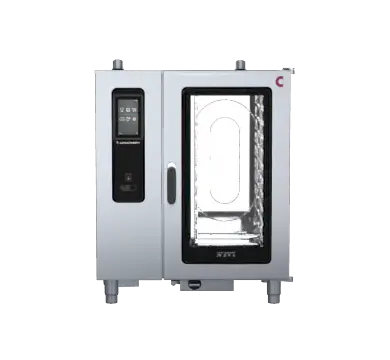

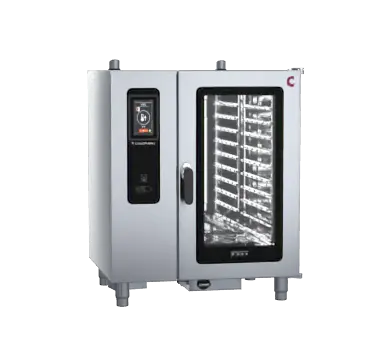

Convotherm CMAXX10.10 - 11 Tray Electric Combi-Steamer Oven

Convotherm CMAXX10.10 - 11 Tray Electric Combi-Steamer Oven

$26,568.29 - $26,568.29
$26,568.29
$26,568.29 - $26,568.29
$26,568.29
SKU CMAXX10.10

Convotherm CMAXX10.10 - 11 Tray Electric Combi-Steamer Oven is a 11 x 1/1 GN capacity electric direct-steam combi designed around the essential Convotherm functions: guided touchscreen operation, repeatable climate management, baking support and automatic cleaning. It is the value-focused Convotherm choice where broad everyday capability matters more than the wider maxx pro configuration range.

  • 11 x 1/1 GN tray capacity electric direct steam combi oven system.

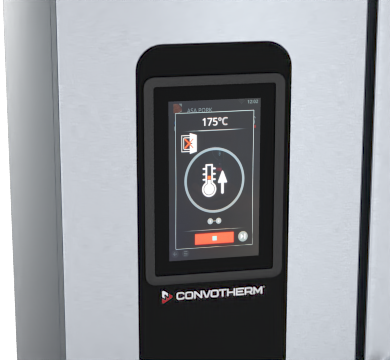

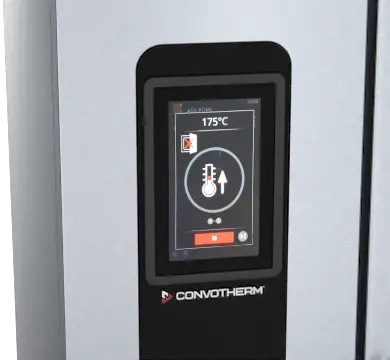

  • EasyTouch - 7" capacitive glass full touchscreen control.
  • Crisp&Tasty - 3 moisture removal settings.
  • BakePro - 3 levels of traditional baking.
  • Fully Automatic cleaning system with 2x cleaning programs (lightly soiled, heavy soiled), rinse and express mode.
  • WiFi and Ethernet interface (LAN).
  • 68mm shelf distance.
Why Choose This Product.

Choose CMAXX10.10 when eleven 1/1 GN levels provide the right balance between batch capacity and a counter-depth footprint. It gives a busy restaurant or production kitchen more headroom than the seven-level maxx without moving to a roll-in oven. Choose CXESD10.10 instead when the wider maxx pro feature and configuration set will be actively used.
Simply Hospitality Notes

Our advice: treat CMAXX10.10 as a services-and-workflow decision as well as an oven. Verify electric supply, water treatment, drainage, ventilation, cleaning-chemical access and door clearances before ordering. Confirm stand height and clear loading space. A menu demonstration is the best check that the selected steam system and capacity are justified.

Product Guide

Best suited to restaurants, hotels and production kitchens needing a versatile medium-capacity combi. Confirm 11 x 1/1 GN capacity, 1/1 GN pan compatibility, electric, water treatment, drainage, extraction and door clearance against the project plan. Closest decisions within the range: CMAXX6.10 for lower peak capacity.

Brand Guide

About Convotherm: Convotherm is a German-engineered commercial cooking platform built around precise climate control, repeatable programmes and automated cleaning. The range spans narrow mini pro ovens, value-focused maxx models, highly configurable maxx pro combis and Flexx Pro multi-pan systems. Moffat supports the range in New Zealand with demonstrations, technical knowledge, spare parts and service capability.

Capacity, cooking and controls

  • 11 x 1/1 GN tray capacity electric direct steam combi oven system.
  • EasyTouch - 7" capacitive glass full touchscreen control.
  • Crisp&Tasty - 3 moisture removal settings.
  • BakePro - 3 levels of traditional baking.
  • HumidityPro - 3 humidity settings.
  • Controllable fan - 3 speed settings.
  • Steam generated by injecting water into the cooking chamber.
  • Fully Automatic cleaning system with 2x cleaning programs (lightly soiled, heavy soiled), rinse and express mode.
  • Multi-point core temperature probe.
  • HACCP data storage.

Cleaning, construction and service

  • Triple glass right-hinged appliance door.
  • Door handle with sure-shut function.
  • Accessories: Retractable hand shower, Stainless steel stand and stacking kit, Kitchenconnect (WiFi/LAN), cloud-based and real time networking solution from Convotherm to update and monitor your appliances from anywhere, ConvoVent 4 condensation hood with grease filter and ConvoVent 4+ condensation hood with grease and odour filter, Care products for the fully automatic cleaning system (multiple measure dispensing).

Installation and included equipment

  • WiFi and Ethernet interface (LAN).
  • USB port built into the control panel.

Additional details

  • 68mm shelf distance.
  • 399 cooking profiles each containing up to 20 steps.
  • Preheat and cool down function.

Dimensions and planning data

ModelCMAXX10.10
Equipment typeCombi-Steamer Ovens
Overall dimensionsW 875mm x D 797mm x H 1066mm
Packed weight161.5kg

Documents

Product documents
CAD & BIM files

  • Dimension W: 875mm D: 797mm H: 1066mm
  • Weight 161.5kg packed
