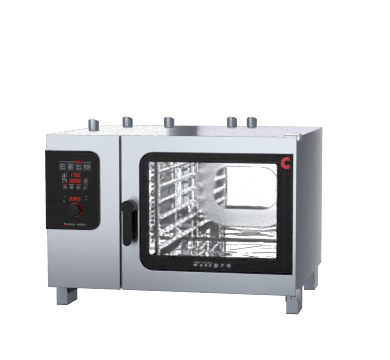

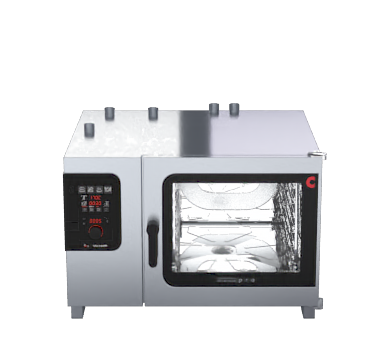

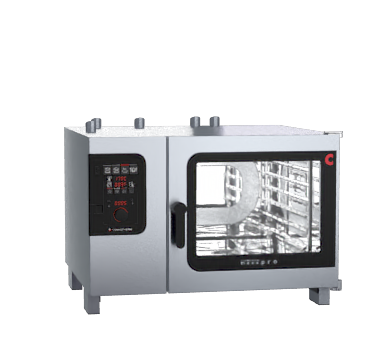

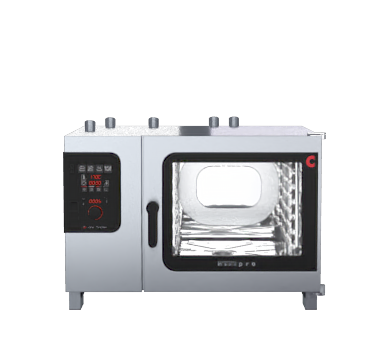

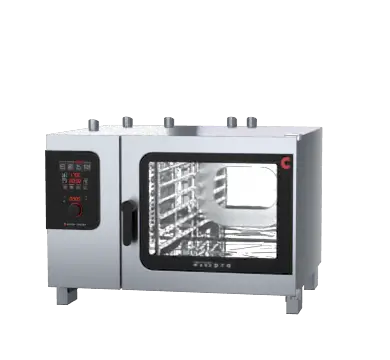

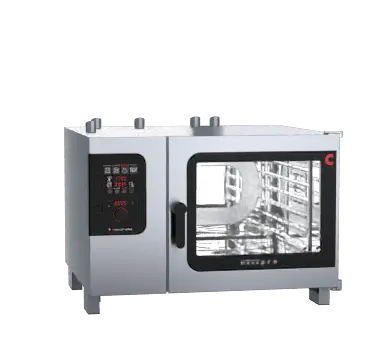

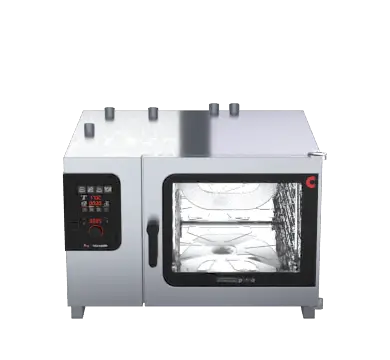

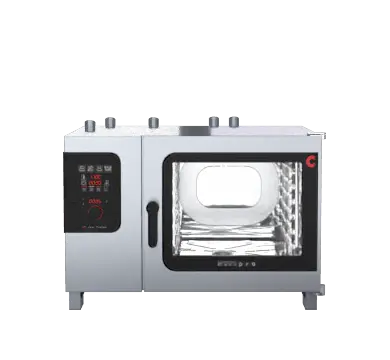

Convotherm CXGBD6.20 - 14 Tray Gas Combi-Steamer Oven - Boiler System

Original price $50,488.29 - Original price $50,488.29
Original price
$50,488.29
$50,488.29 - $50,488.29
Current price $50,488.29
SKU CXGBD6.20-NG

Convotherm CXGBD6.20 - 14 Tray Gas Combi-Steamer Oven - Boiler System is a 7 x 2/1 GN capacity gas combi-steamer using boiler-generated steam. The maxx pro platform is built for repeatable steam, combination and convection production, with programmable controls, climate management and automatic cleaning supporting consistent results across changing teams.

  • Natural Smart Climate (ACS+) cooking methods: Steam, Combi-steam, Convection.
  • Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings.
  • Quality Management: Airflow Management, BakePro, Multi-point core temperature probe.
  • Cleaning Management: ConvoClean: fully automated cleaning system including optional single-measure dispensing, integrated recoil hand shower.
  • Production Management: 99 cooking profiles containing up to 9 steps, HACCP data storage, regenerating function, preheat and cool down function.
  • 14 x 1/1 or 7 x 2/1 GN tray gas boiler combi oven system.
  • 68mm shelf distance.
Why Choose This Product.

Choose CXGBD6.20 when 7 x 2/1 GN capacity matches the kitchen's peak production and gas is the preferred site service. The boiler system is the better fit for frequent, sustained steaming; CXGSD6.20 is the direct-steam counterpart for broader mixed cooking and a simpler steam system. The conventional hinged door suits installations with sufficient aisle clearance and avoids paying for a disappearing-door mechanism that the layout does not need. Choose CXGBD10.20 when peak loads regularly exceed 14 trays.

Simply Hospitality Notes

Our advice: treat CXGBD6.20 as a services-and-workflow decision as well as an oven. Verify gas supply, water treatment, drainage, ventilation, cleaning-chemical access and door clearances before ordering. Confirm stand height and clear loading space. A menu demonstration is the best check that the selected steam system and capacity are justified.

Product Guide

Best suited to busy kitchens using 2/1 GN pans or double-width 1/1 GN loading for larger batches. Confirm 7 x 2/1 GN capacity, 2/1 GN pan compatibility, gas, water treatment, drainage, extraction and door clearance against the project plan. Closest decisions within the range: CXGSD6.20 for the alternative steam-generation system; CXEBD6.20 for electric services; CXGBD10.20 for higher peak capacity.

Brand Guide

About Convotherm: Convotherm is a German-engineered commercial cooking platform built around precise climate control, repeatable programmes and automated cleaning. The range spans narrow mini pro ovens, value-focused maxx models, highly configurable maxx pro combis and Flexx Pro multi-pan systems. Moffat supports the range in New Zealand with demonstrations, technical knowledge, spare parts and service capability.

Capacity, cooking and controls

  • 14 x 1/1 or 7 x 2/1 GN tray gas boiler combi oven system.
  • Steam generated by high-performance boiler outside the cooking chamber.
  • Steam mode: (30-130C) with guaranteed steam saturation, Combi-steam mode: (30-250C) with automatic humidity adjustment, Convection mode: (30-250C) with optimised heat transfer.
  • Climate Management: Crisp&Tasty - 5 moisture-removal settings, BakePro - 5 levels of traditional baking, HumidityPro - 5 humidity settings, controllable fan - 5 speed settings.
  • Quality Management: Airflow Management, BakePro, Multi-point core temperature probe.
  • Production Management: 99 cooking profiles containing up to 9 steps, HACCP data storage, regenerating function, preheat and cool down function.
  • Steam and vapour removal (build-in condensation hood), Ethernet / LAN interface, Sous-vide sensor or Core temperature sensor with external socket.

Cleaning, construction and service

  • Cleaning Management: ConvoClean: fully automated cleaning system including optional single-measure dispensing, integrated recoil hand shower.
  • HygieniCare.
  • Triple glass right-hinged appliance door.
  • Door handle with safety latch and sure-shut function.

Installation and included equipment

  • USB port integrated in the control panel.

Additional details

  • 68mm shelf distance.

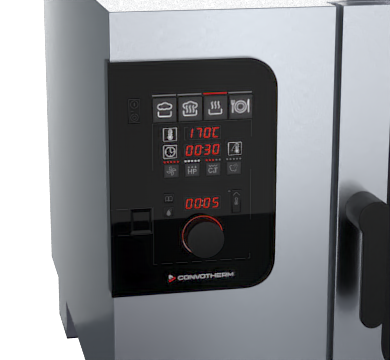

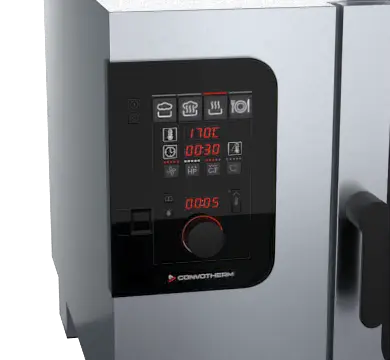

  • EasyDial: all functions can be set on one operating level with digital display control panel.
  • TriColour indicator ring - indicates the current operating status.
  • LED lighting in oven cavity.

Dimensions and planning data

ModelCXGBD6.20
Equipment typeCombi-Steamer Ovens
Overall dimensionsW 1120mm x D 992mm x H 786mm
Packed weight203kg

Documents

Product documents
CAD & BIM files

  • Dimension W: 1120mm D: 992mm H: 786mm
  • Weight 203kg packed
