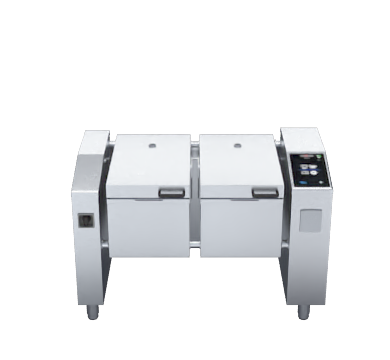

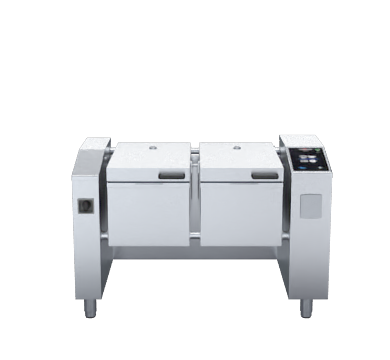

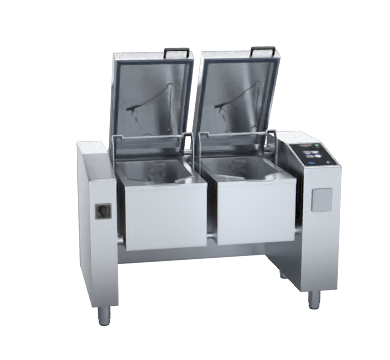

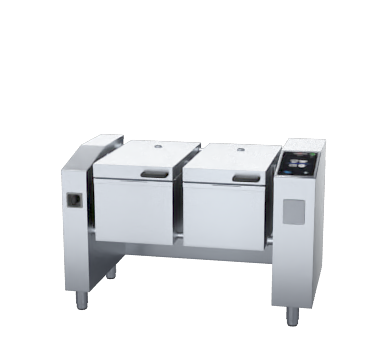

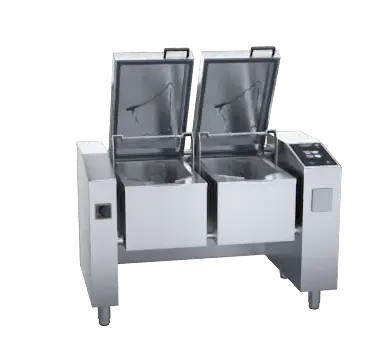

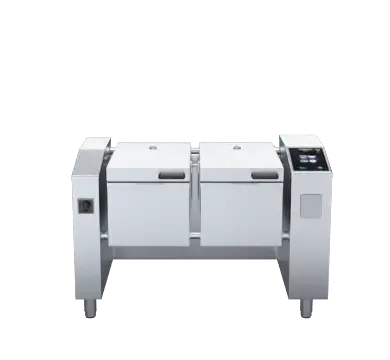

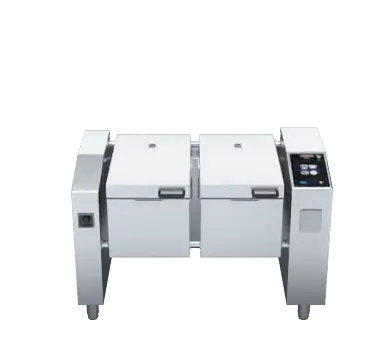

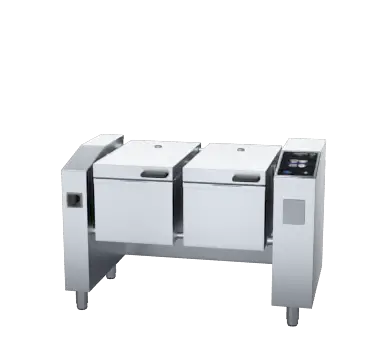

Convotherm flexx pro CFXP 101DM Twin Pan Electric Multi Pan

Original price $65,609.14 - Original price $65,609.14
Original price
$65,609.14
$65,609.14 - $65,609.14
Current price $65,609.14
SKU CFXP 101DM

Convotherm flexx pro CFXP 101DM Twin Pan Electric Multi Pan is a programmable twin-pan production system with 2 x 49-litre capacity and a 220mm pan depth. It combines wet and dry batch cooking with automatic filling, controlled tilting and guided programmes to reduce transfers between separate appliances.

  • 2x 49 litre capacity with 2 x 1/1 GN pan size.
  • 220mm depth pan with 2x 25dm cooking surface.

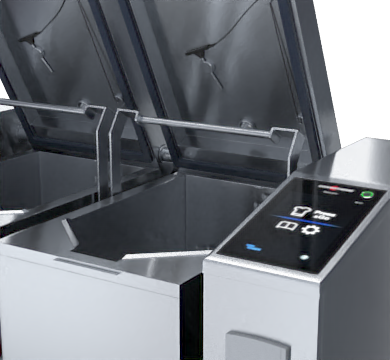

  • 12" colour touch screen for intuitive operation and cook progress display.
  • Automatic and manual meal preparation mode with memory for 800 programs with 12 steps.
  • 1580mm electromechanical tray tilting at variable speed.
  • Automatic water filling system with accuracy of 1 decilitre.
  • Multi pan for cooking, frying, braising, grilling, searing, broiling and sous-vide cooking.
Why Choose This Product.

Choose CFXP 101DM when production must run two independent jobs at once and its 2 x 49-litre split capacity matches the required batch size. Twin pans protect flexibility and allergen or menu separation better than one large vessel, while a single-pan model is superior for uninterrupted bulk batches. CFXP 101DL adds deeper pans for larger parallel batches.

Simply Hospitality Notes

Our advice: demonstrate CFXP 101DM with your actual recipes and largest batch before committing. Confirm electrical load, water quality, drainage, extraction, floor loading and the route for safely tilting and decanting product into trolleys or containers. Pressure models also require disciplined recipe and safety training.

Product Guide

Use CFXP 101DM for kitchens consolidating frying, searing, braising, boiling and other batch processes into a programmable pan system. Its 2 x 49-litre split capacity and 220mm depth define the real application. Compare pan layout, depth and pressure capability before comparing overall width, then demonstrate the menu's largest and most frequent batches.

Brand Guide

About Convotherm: Convotherm is a German-engineered commercial cooking platform built around precise climate control, repeatable programmes and automated cleaning. The range spans narrow mini pro ovens, value-focused maxx models, highly configurable maxx pro combis and Flexx Pro multi-pan systems. Moffat supports the range in New Zealand with demonstrations, technical knowledge, spare parts and service capability.

Capacity, cooking and controls

  • 1580mm electromechanical tray tilting at variable speed.
  • 2x 49 litre capacity with 2 x 1/1 GN pan size.
  • 220mm depth pan with 2x 25dm cooking surface.
  • 12" colour touch screen for intuitive operation and cook progress display.
  • Automatic and manual meal preparation mode with memory for 800 programs with 12 steps.
  • Automatic water filling system with accuracy of 1 decilitre.
  • HACCP recording with USB port for data backup.
  • Multipoint point core temperature probe.
  • Temperature range 30C - 250C.
  • Tray with 3mm 316 grade stainless steel.

Cleaning, construction and service

  • Base and frame cover with 304 grade stainless steel.

Installation and included equipment

  • Integrated retractable hand shower.

Additional details

  • Multi pan for cooking, frying, braising, grilling, searing, broiling and sous-vide cooking.
  • Independent automatic arm for lifting / lowering of baskets.
  • Safety sensor for basket arm detection.

Dimensions and planning data

ModelCFXP 101DM
Equipment typeMulti Pans
Overall dimensionsW 1580mm x D 850mm x H 1050mm
Packed weight475kg

Documents

Product documents
CAD & BIM files

  • Dimension W: 1580mm D: 850mm H: 1050mm
  • Weight 475kg packed
