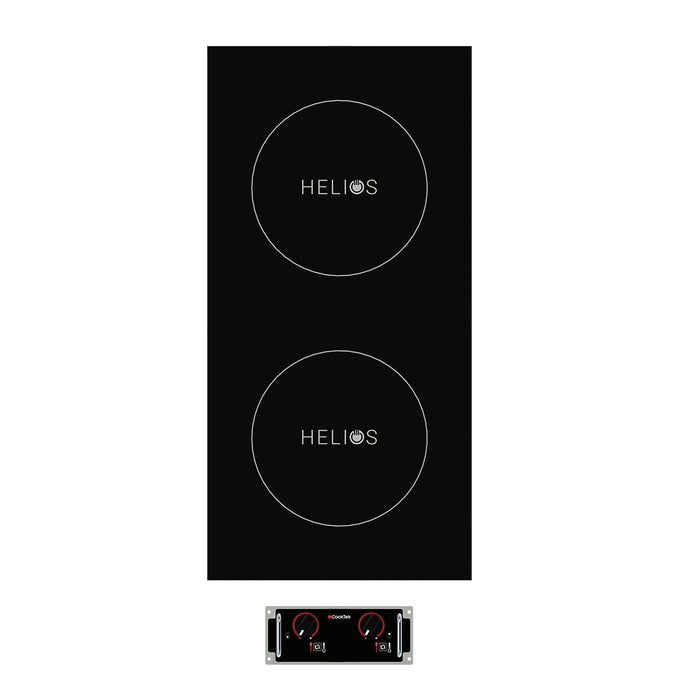

CookTek Helios Dual Drop-In Induction Cooktop - HRD.9500.FB25.4

CookTek Helios Dual Drop-In Induction Cooktop

$10,796.47 - $10,891.18
$10,796.47
$10,796.47 - $10,891.18
$10,796.47
SKU HRD.9500.FB25.4

The CookTek Helios dual drop-in range integrates two commercial induction zones into a fabricated bench in narrow front-to-back or wide side-by-side arrangements.

Key Features

  • High-impact Schott Ceran glass-ceramic cooking surface
  • Automatic pan detection transfers energy only when compatible cookware is present
  • Temperature control from approximately 29°C to 218°C on current Helios models
  • Integral diagnostics monitor operating and power-supply conditions
  • Induction avoids an exposed flame and reduces wasted heat around the station
  • Current Helios warranty: 24 months parts and 12 months labour

Why Choose This Product

Choose the drop-in format when a permanent cooking line needs a flush, easy-clean surface. Front-to-back models conserve frontage; side-by-side versions provide equal pan access and a more conventional two-zone workflow.
Simply Hospitality Notes

Do not treat the FB and SS models as the same cut-out rotated after fabrication; cable, controls and service access must follow the current drawing.

Product Guide

Lock the exact SKU before bench fabrication. Orientation, cut-out and electrical load all change with the variant, and underbench ventilation and controller access must be retained.

Brand Guide

About CookTek: CookTek specialises in commercial induction technology for cooking, hot holding and heated food delivery. Its systems use automatic pan or load detection to apply energy only when compatible equipment is present, supporting responsive control, cooler surrounding surfaces and repeatable operation without an open flame. The range extends from Helios countertop and drop-in cooktops to concealed Incogneeto holding systems and induction-charged delivery bags. Correct specification depends on the electrical supply, control style, mounting format, cookware compatibility and the complete operating system—not simply the nominal wattage.

Product Details

The front-to-back layout uses a 334 × 683 mm cut-out, while the side-by-side layout uses 683 × 334 mm. Each is available with two 2.5 or two 3.5 kW hobs and a separate Helios Standard control arrangement.

Variant Selection

ModelConfigurationDimensions / WeightElectrical Load
HRD.9500.FB25.4Dual Hob - Drop-In — Front to back unit, 2 x 2500W Hobs — Cut-out size: 334W x 683D (mm)343 x 692 x 95 / Weight: 13.6kg4.8kW / 20A, Plug & Lead
HRD.9500.FB35.4Dual Hob - Drop-In — Front to back unit, 2 x 3500W Hobs — Cut-out size: 334W x 683D (mm)343 x 692 x 95 / Weight: 13.6kg7kW / 1 phase + N + E 240V / Lead only (1.8m) / 32A plug required
HRD.9500.SS25.4Dual Hob - Drop-In — Side by side unit, 2 x 2500W Hobs — Cut-out size: 683W x 334D (mm)692 x 343 x 95 / Weight: 13.6kg4.8kW / 20A, Plug & Lead
HRD.9500.SS35.4Dual Hob - Drop-In — Side by side unit, 2 x 3500W Hobs — Cut-out size: 683W x 334D (mm)692 x 343 x 95 / Weight: 13.6kg7kW / 1 phase + N + E 240V / Lead only (1.8m) / 32A plug required

Installation and Operation

Confirm the exact voltage, amperage and phase before ordering. Induction requires magnetic cookware with a flat, appropriately sized base. Drop-in models also require the stated cut-out, ventilation and access to the remote control or service components.

Technical Documents

CAD & BIM Files
