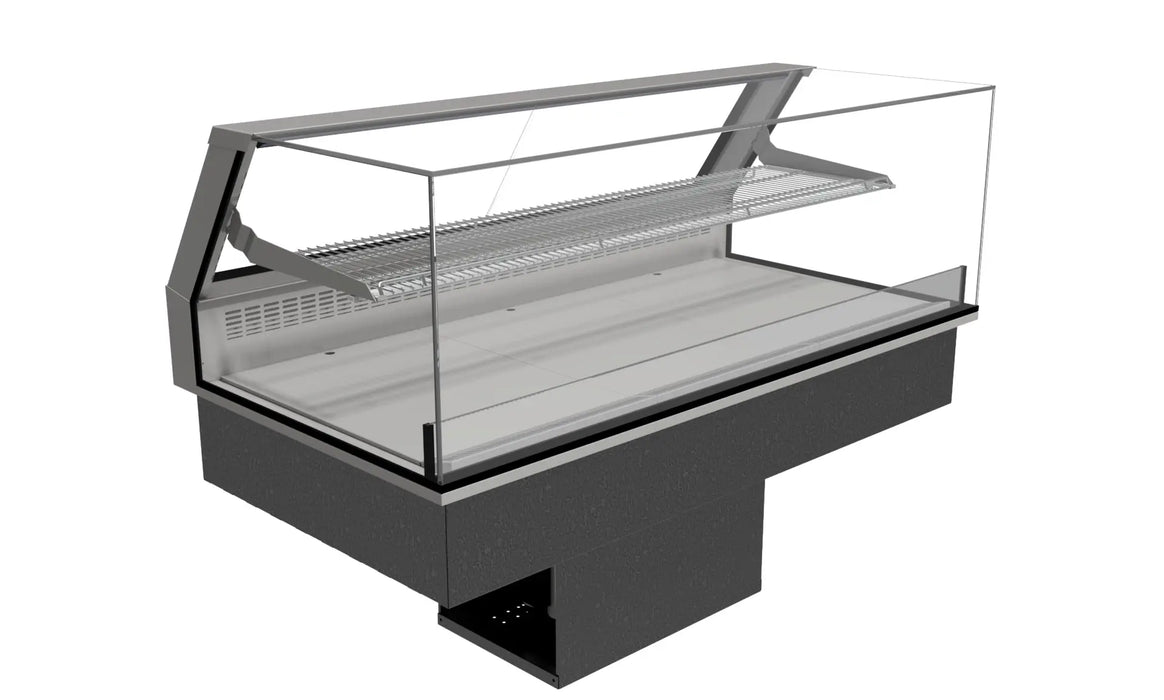

Festive Avon HI Chilled Drop-In (with removable shelf)

Original price $9,328.00 - Original price $15,217.00
Original price
$9,328.00
$9,328.00 - $15,217.00
Current price $9,328.00
SKU ACDH9/SB

The Avon drop-in chilled display is an architectural single-level chilled display for delicatessen, patisserie and plated-food presentation, configured for a purpose-built counter where the display deck and refrigeration are integrated into the joinery.

Key Features

  • Frameless single-glazed canopy with UV-bonded seams.
  • Square-back and angled-back configurations.
  • Rear sliding doors on low-wear tracks, removable for cleaning.
  • Single-level fan-assisted cold-air blanket across the display floor.
  • Integral condenser supplied in a cradle.
  • Frameless glass canopy with rear sliding doors.
  • DuraCoat coil protection and SureVap condensate management.
  • SlimLED lighting from the top rear rail.

Why Choose This Product

Choose Avon when a single, generous display deck and an almost frameless glass profile are more important than multi-tier capacity. LO versions keep the sightline especially low; HI versions add presentation height and a removable ambient shelf, making them better where feature items need elevation. Drop-In creates the most architectural counter installation, but its advantage depends on coordinating the condenser, ventilation, access and cut-outs with the cabinetmaker.


Length: 900mm
Depth*: 830mm
Height: 520mm
Available Display Area: 0.54m²
Power: 10A Plug

Length: 1200mm
Depth*: 830mm
Height: 520mm
Available Display Area: 0.72m²
Power: 10A Plug

Length: 1530mm
Depth*: 830mm
Height: 520mm
Available Display Area: 0.92m²
Power: 10A Plug

Length: 1770mm
Depth*: 830mm
Height: 520mm
Available Display Area: 1.1m²
Power: 10A Plug

Length: 2370mm
Depth*: 830mm
Height: 520mm
Available Display Area: 1.44m²
Power: 10A Plug

Length: 900mm
Depth*: 830mm
Height: 520mm
Available Display Area: 0.54 m²
Power: 10A Plug

Length: 1200mm
Depth*: 830mm
Height: 520mm
Available Display Area: 0.72m²
Power: 10A Plug

Length: 1530mm
Depth*: 830mm
Height: 520mm
Available Display Area: 0.92m²
Power: 10A Plug

Length: 1770mm
Depth*: 830mm
Height: 520mm
Available Display Area: 1.1m²
Power: 10A Plug

Length: 2370mm
Depth*: 830mm
Height: 520mm
Available Display Area: 1.44m²
Power: 10A Plug
Simply Hospitality Notes

Our advice: Coordinate the cabinet, condenser cradle, ventilation, cable exit and service-removal path with the cabinetmaker before the bench is manufactured. Square-back and angled-back options change the presentation and rear working clearance; confirm the selected suffix on the order and drawings.

Product Guide

Use the LO version for the lowest sightline and cleanest single-level presentation. Choose HI when greater glass height or the removable ambient shelf supports the merchandising plan. Select square-back or angled-back configuration deliberately, then confirm the exact joinery cut-out and ventilation requirements. Avon is a single-deck architectural display: LO protects the lowest sightline, HI adds presentation height and an ambient shelf, Compact is self-contained and Drop-In is joinery integrated.

Brand Guide

About Festive: Festive specialises in high-performance commercial food display cabinets designed to minimise frame and maximise glass so the food remains the visual focus. The cabinets are manufactured in New Zealand, with standard families covering countertop, floor-standing, self-service and joinery-integrated applications. Festive also supports project-specific dimensions, finishes, glazing and joinery, making correct early specification as important as the cabinet model itself.

Product Details

Avon is designed as a distinct part of the Festive display family: an architectural single-level chilled display for delicatessen, patisserie and plated-food presentation. The selected drop-in chilled display determines the correct service style, environmental requirements and installation planning.

Model Selection

ModelLengthConfigurationPower
ACDH9/SB900mmsquare back, high profile10A plug
ACDH12/SB1200mmsquare back, high profile10A plug
ACDH15/SB1530mmsquare back, high profile10A plug
ACDH18/SB1770mmsquare back, high profile10A plug
ACDH24/SB2370mmsquare back, high profile10A plug
ACDH9/AB900mmangled back, high profile10A plug
ACDH12/AB1200mmangled back, high profile10A plug
ACDH15/AB1530mmangled back, high profile10A plug
ACDH18/AB1770mmangled back, high profile10A plug
ACDH24/AB2370mmangled back, high profile10A plug

Specifications

RangeAvon
Display functiondrop-in chilled display
Overall depth830mm
Overall / canopy heightvaries by LO or HI configuration
Installation formatJoinery-integrated / drop-in
Published operating rangeApproximately 3–5°C in controlled room conditions; see specification sheet

Planning and Operation

Coordinate the cabinet, condenser cradle, ventilation, cable exit and service-removal path with the cabinetmaker before the bench is manufactured. Square-back and angled-back options change the presentation and rear working clearance; confirm the selected suffix on the order and drawings.

Technical Documents

CAD and Revit Downloads

ACDH93D CAD  |  Revit
ACDH123D CAD  |  Revit
ACDH153D CAD  |  Revit
ACDH183D CAD  |  Revit
ACDH243D CAD  |  Revit
