Friginox MX1LSTS7-C 1-Trolley Roll-In Blast Chiller - product image

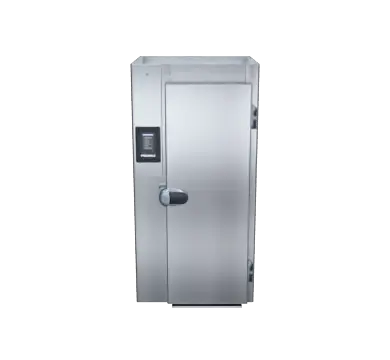

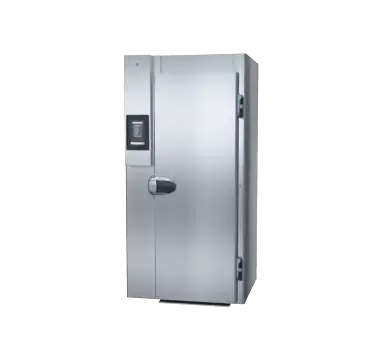

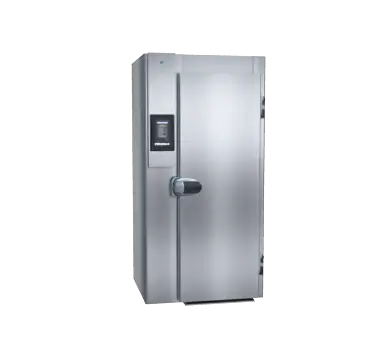

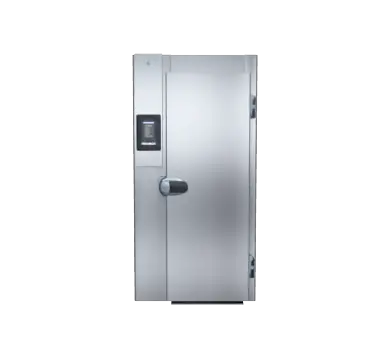

Friginox MX1LSTS7-C 1-Trolley Roll-In Blast Chiller

$53,084.00 - $53,084.00
$53,084.00
$53,084.00 - $53,084.00
$53,084.00
SKU MX1LSTS7-C

The Friginox MX1LSTS7-C is a 1-trolley roll-in blast chiller for high-volume production kitchens. It processes 80kg per stated cycle capacity and is built around direct trolley loading, hygienic stainless construction and programmable probe- or timer-led operation. Trolleys and the remote condensing unit are not included.

  • 1 x 1/1GN trolley (trolley not included)
  • Rated load capacity: 80kg

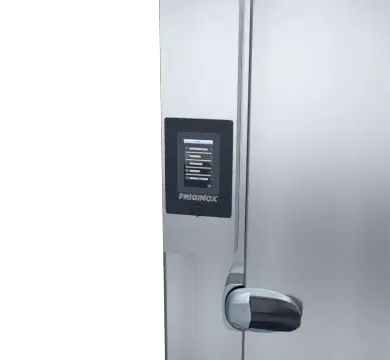

  • 7-inch touchscreen with soft/hard chill modes, probe or timer control and self-adaptive chilling
  • Remote condensing-unit configuration using R452A; condensing unit not included
  • USB HACCP recording and three-point core probe for production traceability
  • Single-access or optional passthrough configuration; door arrangement must be specified at order
  • 304 stainless steel interior and exterior with insulated construction and heated door frame

Why Choose This Product

The MX1L is the better single-trolley chill-only choice when a deeper loading geometry or optional passthrough workflow fits the production line. It supports cleaner one-way movement through high-care areas than a standard single-door cabinet.
Simply Hospitality Notes

Match the cabinet to the actual trolley fleet and heaviest batch. Trolleys and remote condensing plant are excluded, and door arrangement is an order-time decision. For passthrough models, design the room around one-way food movement rather than treating the second door as an afterthought.

Product Guide

Start with trolley count, then compare cabinet geometry: UMX is the narrow single-trolley option; MX1S is the conventional single-access format; MX1L adds a deeper loading geometry and passthrough option; MX2, MX27 and MX29 offer different two-trolley footprints; MX3, MX4 and MX6 scale throughput. Select -C for chilling only and -CF for combined chill/freeze duty.

Brand Guide

About Friginox: Friginox specialises in rapid chilling, freezing and controlled cold-chain equipment for professional kitchens. The range extends from compact reach-in cabinets to full-trolley roll-in rooms and contractor-integrated refrigeration systems. Its strength is process control at scale: probe-led cycles, programmable operation, hygienic stainless construction and configurations that can be designed around real kitchen flow. Selection should be based on batch weight, tray or trolley format, required chill/freeze duty, site ambient, electrical supply and whether refrigeration is self-contained or remote.

Operational Fit

Roll-in equipment earns its space when whole trolley loads move through production on a repeatable schedule. Plan the hot-side approach, ramp, door swing and cooled-side exit before finalising the room. Where passthrough is available, it can support one-way movement between cooking and high-care zones; where it is not, allow sufficient manoeuvring space for safe entry and withdrawal.

Technical Specifications

  • Model: MX1LSTS7-C
  • Configuration: Trolley roll-in
  • Function: Blast chiller only
  • Capacity: 1 x 1/1GN trolley (trolley not included)
  • Rated batch capacity: 80kg
  • External dimensions (W x D x H): W 1080mm x D 1030mm x H 2170mm
  • Usable internal dimensions: W 650mm x D 790mm x H 1885mm (A1) W 650mm x D 820mm x H 1885mm (A2)
  • Electrical connection: 1P+N+E, 230-240V, 50/60Hz, 20A, 2.7kW
  • Refrigeration: Remote condensing configuration; R452A
  • Ambient requirement: +15°C — +43°C
  • Net weight: 200kg
  • Controls: 7-inch touchscreen; probe or timer control; programmable cycles
  • Construction: 304 stainless steel interior and exterior

Installation & Ordering Considerations

  • Remote condensing unit is not included; refrigeration duty, line sizing and pump-down control require specialist design.
  • Trolley is not included. Confirm trolley width, height, wheel path and ramp approach against the drawings.
  • Door configuration must be stated at order; confirm single-access or passthrough arrangement.
  • Published load capacities vary with food thermal conductivity, thickness and container selection; validate the intended batch with production testing.
