Friginox MX20AENCT7R 5-Tray Built-In Blast Chiller / Freezer - product image

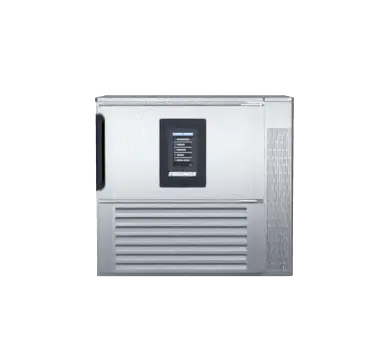

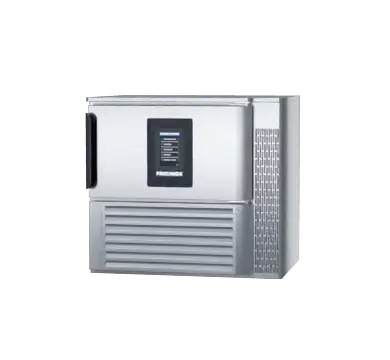

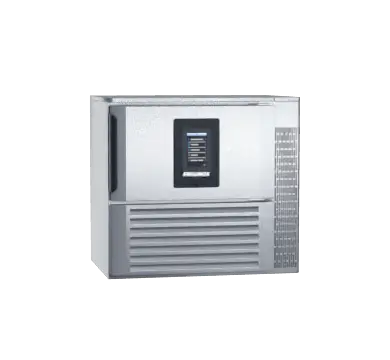

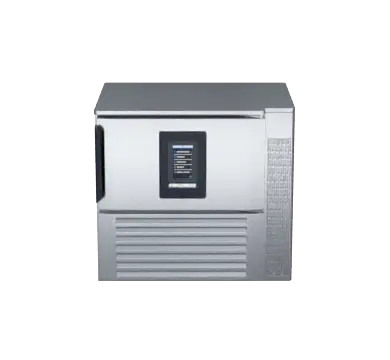

Friginox MX20AENCT7R 5-Tray Built-In Blast Chiller / Freezer

$24,656.00 - $24,656.00
$24,656.00
$24,656.00 - $24,656.00
$24,656.00
SKU MX20AENCT7R

The Friginox MX20AENCT7R is a five-tray blast chiller / freezer designed to be built in on five sides. It delivers 20kg chill / 10kg freeze capacity with TS7 touchscreen control in a low W 900mm x D 695mm x H 820mm format, allowing rapid cooling to be integrated into a planned equipment line.

  • 5 x 1/1GN trays with 64mm clearance
  • Rated load capacity: 20kg chill / 10kg freeze

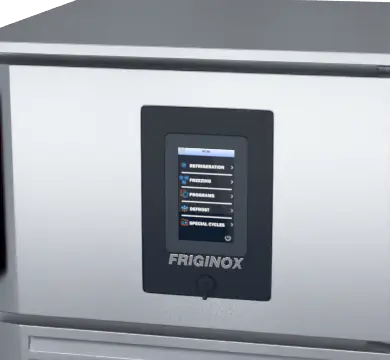

  • 7-inch touchscreen with soft/hard chill and freeze modes, probe or timer control and self-adaptive chilling
  • Self-contained air-cooled refrigeration using R455A
  • Three-point core temperature probe with automatic hold after the cycle
  • Designed for five-side built-in installation
  • 304 stainless steel interior and exterior with insulated construction and heated door frame

Why Choose This Product

Choose the built-in model when the blast chiller must sit cleanly within a planned equipment line or under compatible joinery. It retains the MX20's intelligent 20kg / 10kg performance while trading freestanding flexibility for a lower, five-side built-in format.
Simply Hospitality Notes

Built-in does not mean ventilation-free. Keep the condenser air path and service-removal route open, and have the cabinetmaker work from the current technical drawing. Choose the freestanding MX20AT7R if future relocation or bakery-tray compatibility is more important.

Product Guide

Choose this model when five 1/1 GN trays must be integrated into a low equipment line. Select the freestanding MX20AT7R for mixed GN and 600 x 400mm bakery trays or easier relocation. Move to MX30 or MX45 when ten tray positions or heavier batches are required.

Brand Guide

About Friginox: Friginox specialises in rapid chilling, freezing and controlled cold-chain equipment for professional kitchens. The range extends from compact reach-in cabinets to full-trolley roll-in rooms and contractor-integrated refrigeration systems. Its strength is process control at scale: probe-led cycles, programmable operation, hygienic stainless construction and configurations that can be designed around real kitchen flow. Selection should be based on batch weight, tray or trolley format, required chill/freeze duty, site ambient, electrical supply and whether refrigeration is self-contained or remote.

Operational Fit

The five-side built-in format suits a coordinated equipment line, but the surrounding structure must not compromise condenser airflow or service removal. Resolve ventilation, clearances and access before fabrication. It accepts 1/1 GN trays rather than the mixed GN/bakery-tray format offered by the freestanding MX20AT7R.

Technical Specifications

  • Model: MX20AENCT7R
  • Configuration: Reach-in
  • Function: Blast chiller / blast freezer
  • Capacity: 5 x 1/1GN trays
  • Rated batch capacity: 20kg chill / 10kg freeze
  • External dimensions (W x D x H): W 900mm x D 695mm x H 820mm
  • Tray clearance: 64mm
  • Electrical connection: 1P+N+E, 230-240V, 50/60Hz, 10A, 1.82kW
  • Refrigeration: Self-contained air-cooled; R455A
  • Ambient requirement: +15Β°C β€” +32Β°C
  • Net weight: 125kg
  • Controls: 7-inch touchscreen; probe or timer control; programmable cycles
  • Construction: 304 stainless steel interior and exterior

Installation & Ordering Considerations

  • Install within the stated ambient operating range of +15Β°C β€” +32Β°C and keep condenser airflow unobstructed.
  • Provide the specified electrical supply and any required trapped waste connection before delivery.
  • Do not enclose the cabinet until ventilation and service-removal requirements have been confirmed from the drawings.
  • Confirm door handing and tray format at order; optional extras must be specified before manufacture.
  • Published load capacities vary with food thermal conductivity, thickness and container selection; validate the intended batch with production testing.
