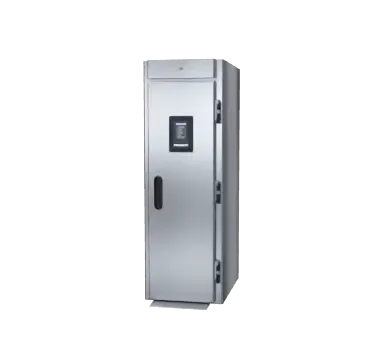

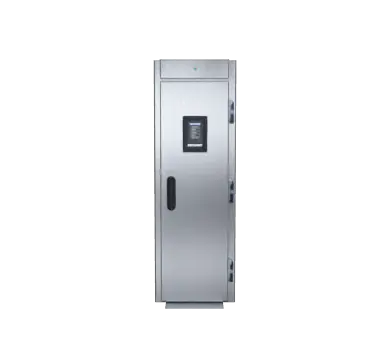

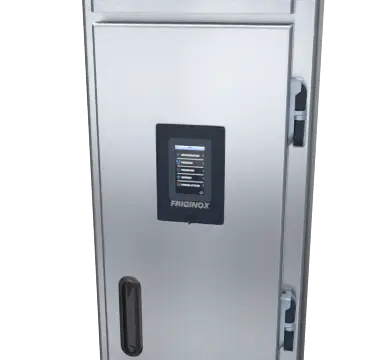

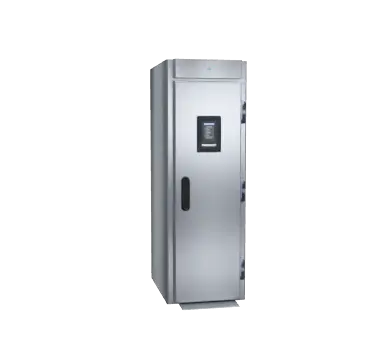

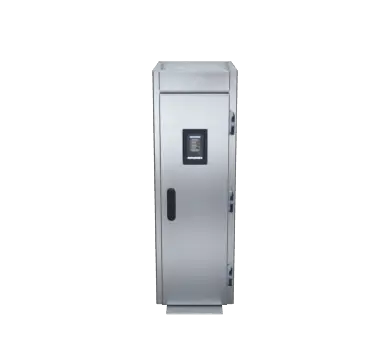

Friginox UMX1STS7-CF 1-Trolley Roll-In Blast Chiller / Freezer - product image

Friginox UMX1STS7-CF 1-Trolley Roll-In Blast Chiller / Freezer

$48,852.00 - $48,852.00
$48,852.00
$48,852.00 - $48,852.00
$48,852.00
SKU UMX1STS7-CF

The Friginox UMX1STS7-CF is a 1-trolley roll-in blast chiller / freezer for high-volume production kitchens. It processes 80kg chill / 40kg freeze per stated cycle capacity and is built around direct trolley loading, hygienic stainless construction and programmable probe- or timer-led operation. Trolleys and the remote condensing unit are not included.

  • 1 x 1/1GN trolley (trolley not included)
  • Rated load capacity: 80kg chill / 40kg freeze
  • 7-inch touchscreen with soft/hard chill and freeze modes, probe or timer control and self-adaptive chilling
  • Remote condensing-unit configuration using R452A; condensing unit not included
  • USB HACCP recording and three-point core probe for production traceability
  • Supplied assembled; door handing must be confirmed at order
  • 304 stainless steel interior and exterior with insulated construction and heated door frame

Why Choose This Product

The UMX combines an unusually narrow 710mm cabinet width with full 80kg chill / 40kg freeze capability. It is especially valuable where a single trolley must pass through a restricted back-of-house route without giving up freezing flexibility.
Simply Hospitality Notes

Match the cabinet to the actual trolley fleet and heaviest batch. Trolleys and remote condensing plant are excluded, and door arrangement is an order-time decision. For passthrough models, design the room around one-way food movement rather than treating the second door as an afterthought.

Product Guide

Start with trolley count, then compare cabinet geometry: UMX is the narrow single-trolley option; MX1S is the conventional single-access format; MX1L adds a deeper loading geometry and passthrough option; MX2, MX27 and MX29 offer different two-trolley footprints; MX3, MX4 and MX6 scale throughput. Select -C for chilling only and -CF for combined chill/freeze duty.

Brand Guide

About Friginox: Friginox specialises in rapid chilling, freezing and controlled cold-chain equipment for professional kitchens. The range extends from compact reach-in cabinets to full-trolley roll-in rooms and contractor-integrated refrigeration systems. Its strength is process control at scale: probe-led cycles, programmable operation, hygienic stainless construction and configurations that can be designed around real kitchen flow. Selection should be based on batch weight, tray or trolley format, required chill/freeze duty, site ambient, electrical supply and whether refrigeration is self-contained or remote.

Operational Fit

Roll-in equipment earns its space when whole trolley loads move through production on a repeatable schedule. Plan the hot-side approach, ramp, door swing and cooled-side exit before finalising the room. Where passthrough is available, it can support one-way movement between cooking and high-care zones; where it is not, allow sufficient manoeuvring space for safe entry and withdrawal.

Technical Specifications

  • Model: UMX1STS7-CF
  • Configuration: Trolley roll-in
  • Function: Blast chiller / blast freezer
  • Capacity: 1 x 1/1GN trolley (trolley not included)
  • Rated batch capacity: 80kg chill / 40kg freeze
  • External dimensions (W x D x H): W 710mm x D 1070mm x H 2120mm
  • Usable internal dimensions: W 500mm x D 650mm x H 1860mm
  • Electrical connection: 1P+N+E, 230-240V, 50/60Hz, 20A, 2.7kW
  • Refrigeration: Remote condensing configuration; R452A
  • Ambient requirement: +15°C — +32°C
  • Net weight: 170kg
  • Controls: 7-inch touchscreen; probe or timer control; programmable cycles
  • Construction: 304 stainless steel interior and exterior

Installation & Ordering Considerations

  • Remote condensing unit is not included; refrigeration duty, line sizing and pump-down control require specialist design.
  • Trolley is not included. Confirm trolley width, height, wheel path and ramp approach against the drawings.
  • Door configuration must be stated at order.
  • Published load capacities vary with food thermal conductivity, thickness and container selection; validate the intended batch with production testing.
