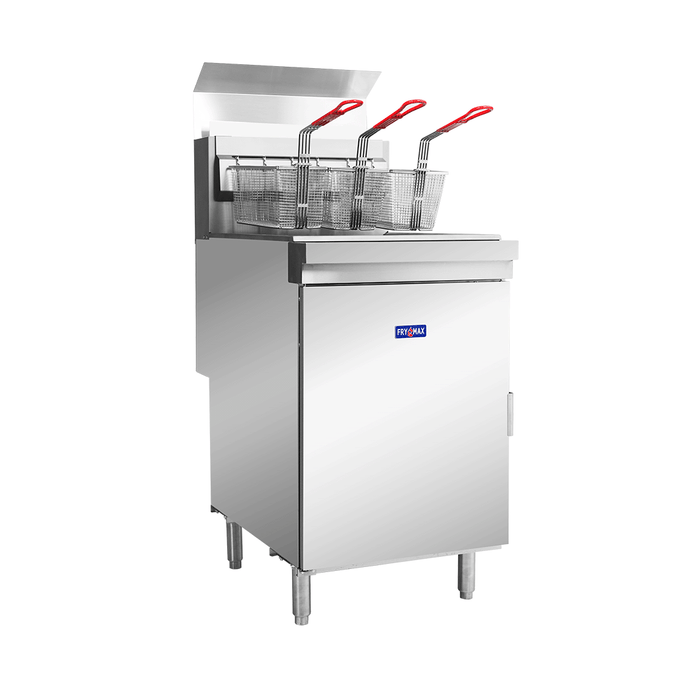

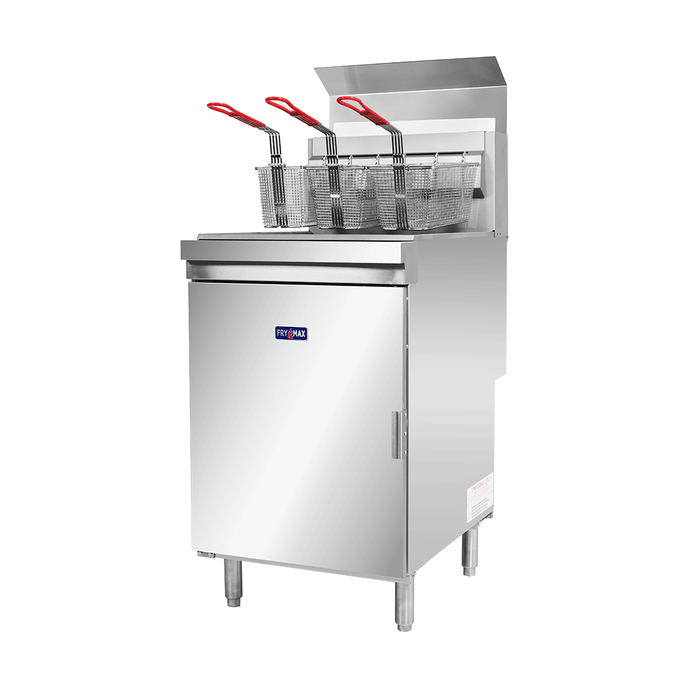

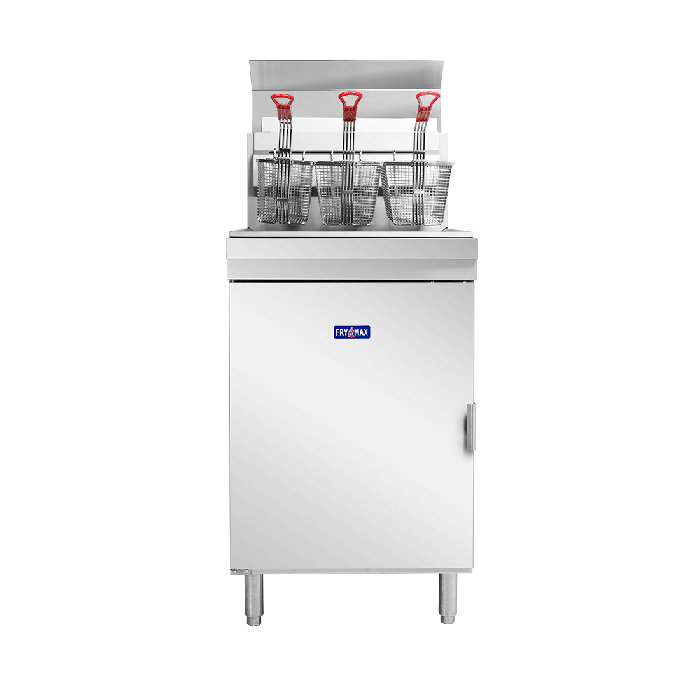

Frymax RC500 Commercial Gas Tube Fryer

Frymax RC500 Commercial Gas Tube Fryer

$3,607.59 - $3,607.59
$3,607.59
$3,607.59 - $3,607.59
$3,607.59
SKU RC500E

Frymax RC500 Commercial Gas Tube Fryer is a freestanding commercial gas tube fryer designed for dependable high-volume frying, with the tube-fired tank concentrating heat into the oil while leaving a cooler sediment zone below.

Key Features

  • Commercial tube-fired fry tank
  • Thermostatic temperature control
  • Cool zone for crumbs and sediment
  • Stainless-steel front and tank area
  • Drain valve for oil management
  • Flame-failure safety system
  • Natural Gas and LPG model options
  • 150MJ/h stated input/output

Why Choose This Product

Choose the RC500 when peak throughput and recovery are the purchasing drivers. The larger frying system is intended for operations that can keep it productively loaded; it avoids the queueing and temperature drop that occur when a smaller fryer is continually overloaded.

Apply for Finance
Apply for Finance
Simply Hospitality Notes

RC500E and RC500ELPG: Frying performance and oil cost are inseparable. Filter before carbonised crumbs damage the oil, avoid overloading baskets, and confirm gas, extraction, fire suppression, clearances and safe drain access before installation. Gas commissioning must be completed for the selected fuel. The supplier states 150MJ/h; have this service requirement checked against the site before ordering.

Product Guide

Select fryer size from peak kilograms per hour, product load and oil recovery—not tank volume alone. Keep allergen separation, filtration frequency, basket loading and hood capacity in the decision. A larger fryer only pays when trade uses its recovery and working area. RC500E and RC500ELPG are the exact Natural Gas and LPG model codes; select the fuel only after the site supply is confirmed.

Brand Guide

About Frymax: Frymax concentrates on the frying station, with commercial gas and electric fryers, oil-management equipment and complementary holding solutions. Its appeal is practical throughput: equipment designed to help busy takeaway, restaurant and production kitchens cook, filter and hold fried food with a clear, serviceable workflow.

Model Selection

ModelConfigurationDimensionsServices / OutputNet Weight
RC500ENatural Gas534 W × 759 D × 1195 H mm150MJ/h—
RC500ELPGLPG534 W × 759 D × 1195 H mm137.5 MJ/h—

Construction and Operation

  • Product features
  • Oil Capacity 37 Litre
  • Tank Capacity 44 Litre
  • Dimensions 1195(H) x 533(W) x 759(D)mm
  • All Stainless steel Front, door, tank and trim
  • Temperature Range 120°C to 200°C
  • Nett Weight 55kg
  • 43kg/hr production rate
  • 150MJ multi-jet burner system
  • Reliable Millivolt Mechanical controls

Technical Specifications

RC500E Specifications

SpecificationDetail
ModelRC500E
Gas / Power TypeNatural Gas
External Dimensions534 W × 759 D × 1195 H mm
Packed Dimensions800 W × 600 D × 1200 H mm
Power150MJ/h

RC500ELPG Specifications

SpecificationDetail
ModelRC500ELPG
Gas / Power TypeLPG
External Dimensions534 W × 759 D × 1195 H mm
Packed Dimensions800 W × 600 D × 1200 H mm
Power137.5 MJ/h

Installation and Care

Frying performance and oil cost are inseparable. Filter before carbonised crumbs damage the oil, avoid overloading baskets, and confirm gas, extraction, fire suppression, clearances and safe drain access before installation. Gas commissioning must be completed for the selected fuel.

Warranty

2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice

  • Dimension 534 W × 759 D × 1195 H mm
  • Weight
