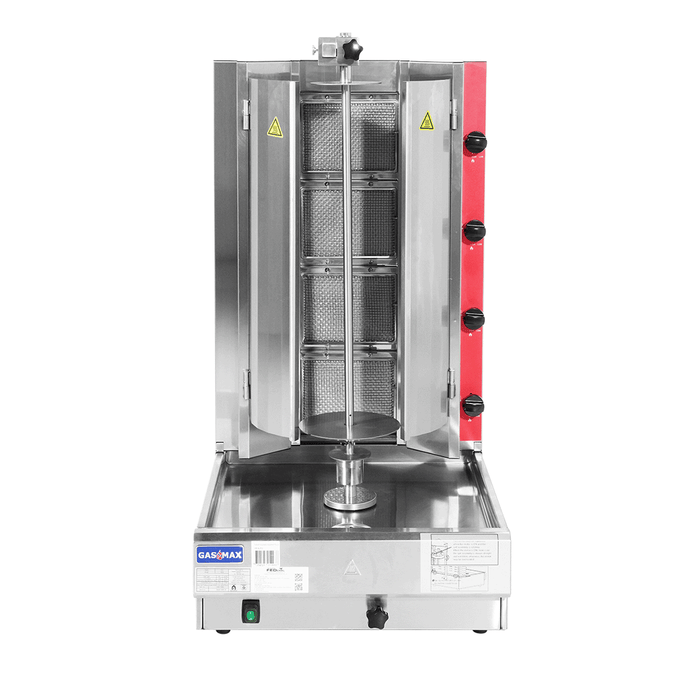

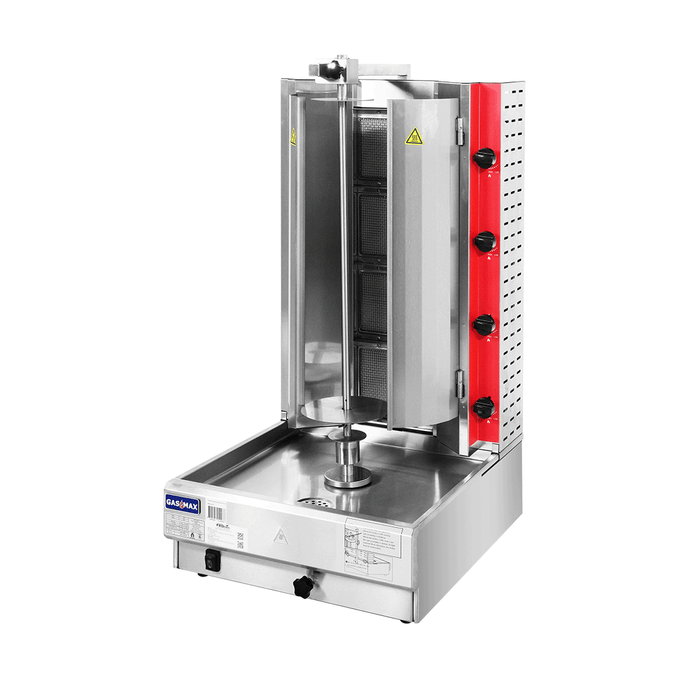

Gasmax KB-4 4 Burner Semi-Automatic Kebab Machine

$2,071.35 - $2,071.35
$2,071.35
$2,071.35 - $2,071.35
$2,071.35
SKU KB-4LPG

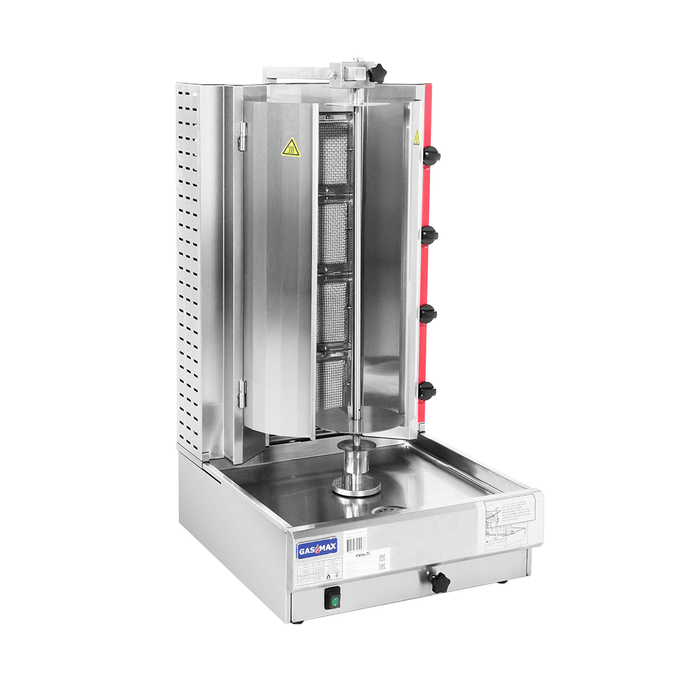

Gasmax KB-4 4 Burner Semi-Automatic Kebab Machine is a semi-automatic vertical gas kebab machine for controlled roasting of stacked meat cones, with multiple burners allowing heat to be matched to the height and load.

Key Features

  • Vertical rotisserie format

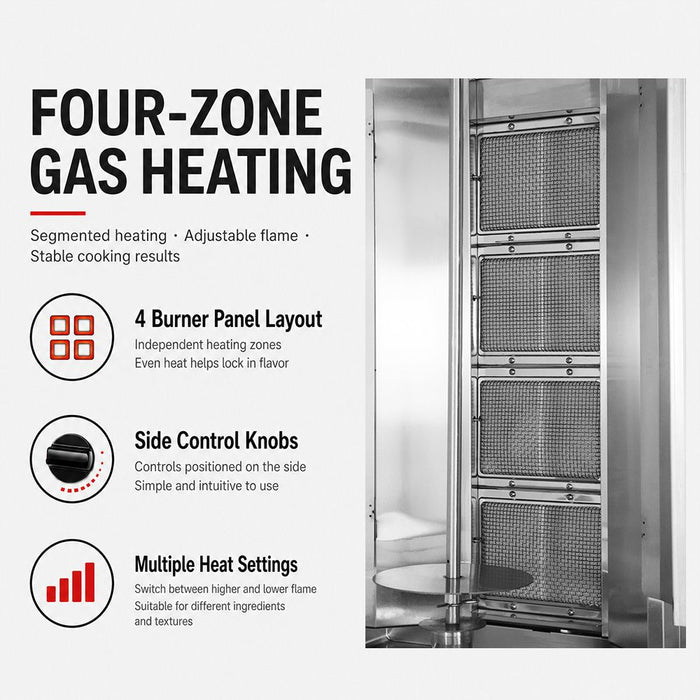

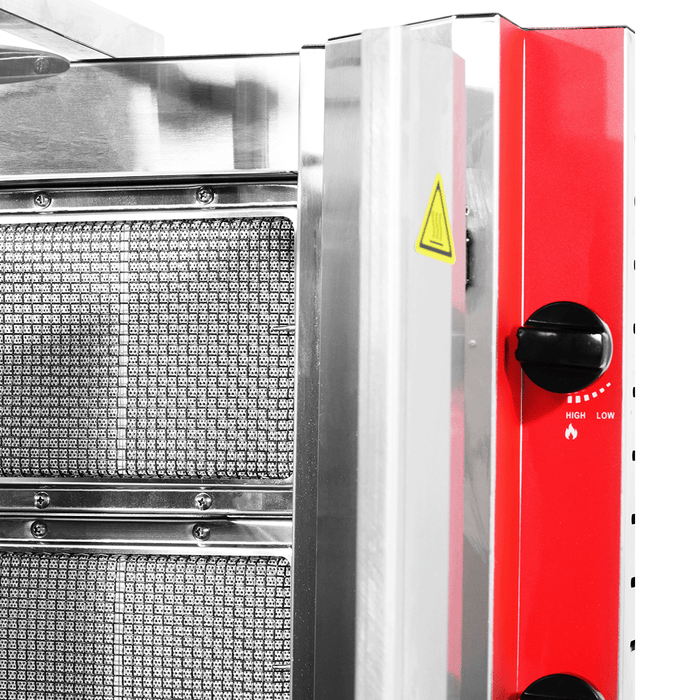

  • Independently controlled gas burners
  • Motorised rotation

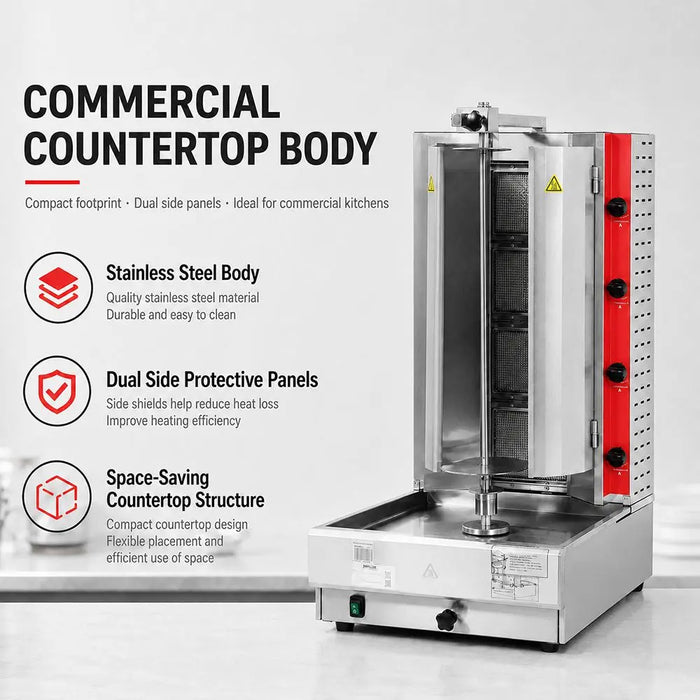

  • Stainless-steel commercial construction
  • Adjustable heat-to-product positioning

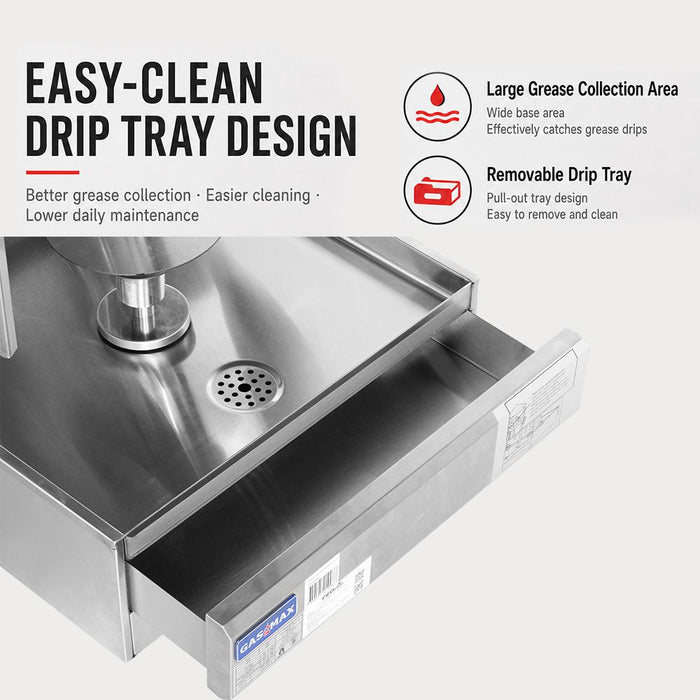

  • Removable drip collection
  • Natural Gas and LPG model options
  • 10A plug stated input/output

Why Choose This Product

Choose the four-burner model for the most broadly useful balance of cone height, output and footprint. It offers more roasting coverage than a compact machine while remaining easier to load and manage than the tallest five-burner format.
Simply Hospitality Notes

KB-4 and KB-4LPG: Vertical rotisserie cooking requires disciplined food-safety procedures. Maintain safe surface cooking and slicing rates, protect the lower product from raw juices, clean the motor/rod/drip area daily and confirm gas and ventilation requirements with the installer. The supplier states 10A plug; have this service requirement checked against the site before ordering.

Product Guide

Size the machine to the normal cone, not the largest cone used once a year. The burner bank should cover the working meat height without excessive unused flame. Confirm motor capacity, daily production, extraction and safe slicing workflow, and plan how cooked surfaces will be managed as the cone diameter reduces. KB-4 and KB-4LPG are the exact Natural Gas and LPG model codes; select the fuel only after the site supply is confirmed.

Brand Guide

About Gasmax: Gasmax offers practical commercial gas cooking equipment built around strong output, straightforward controls and task-specific formats. The range suits operators who value dependable day-to-day performance, accessible ownership costs and a broad choice of cooktop, grill, fryer, wok and speciality configurations.

Model Selection

ModelConfigurationDimensionsServices / OutputNet Weight
KB-4Natural Gas537 W × 639 D × 1013 H mm10A plug—
KB-4LPGLPG537 W × 639 D × 1013 H mm10A plug—

Construction and Operation

  • Gas Type: LPG
  • Capacity: 45 kg
  • Consumption (MJ/h) 48

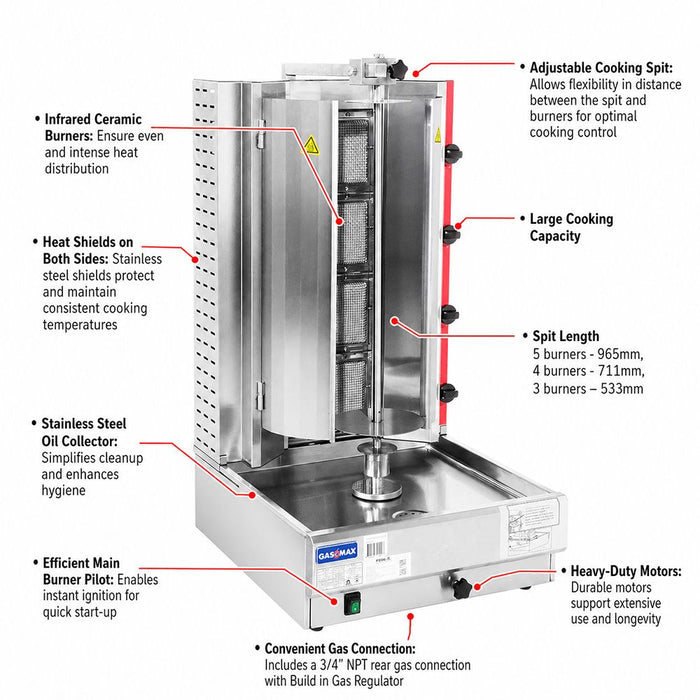

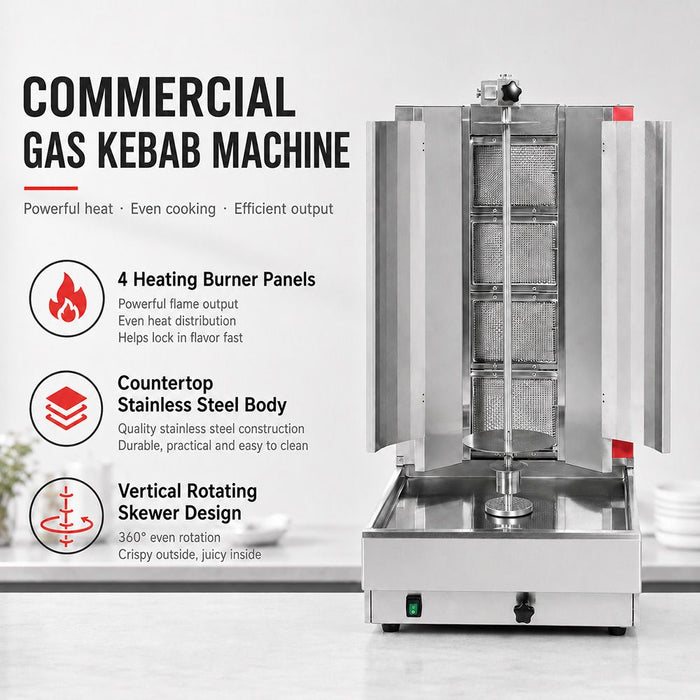

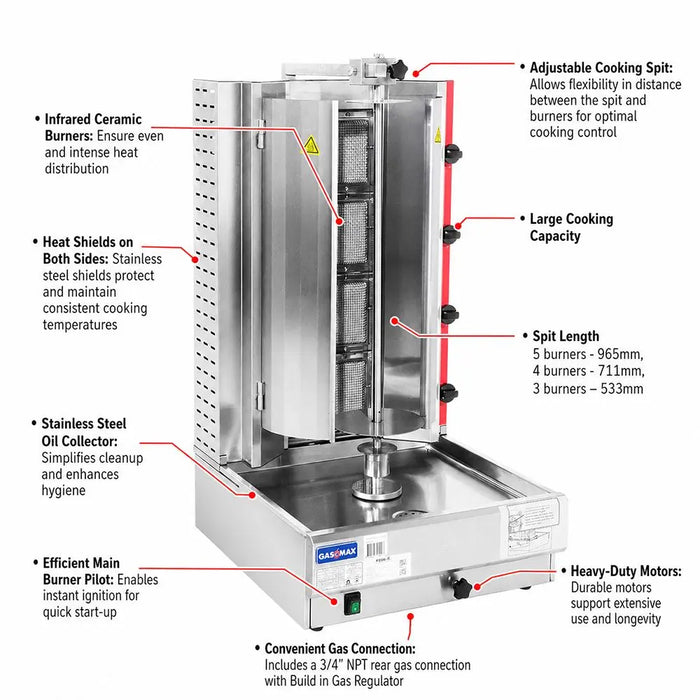

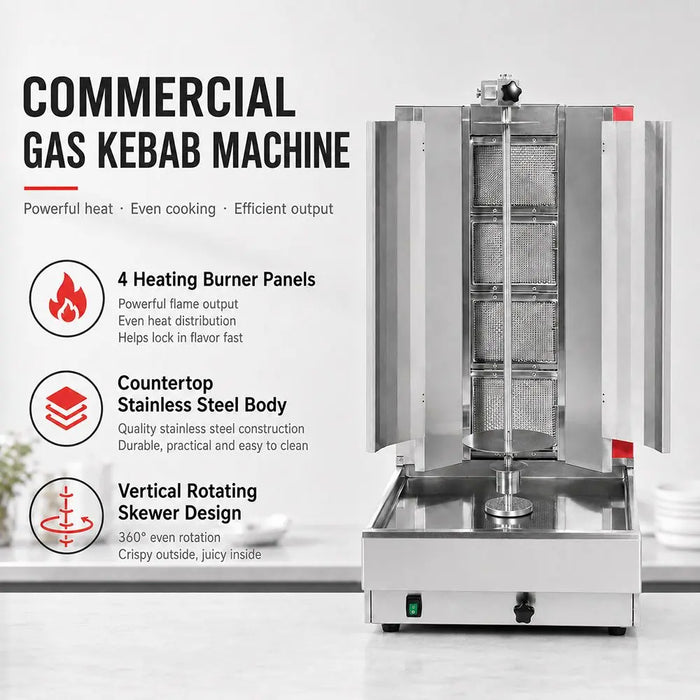

  • Infrared Ceramic Burners: Ensure even and intense heat distribution
  • Sturdy Stainless Steel Structure
  • Large Cooking Capacity

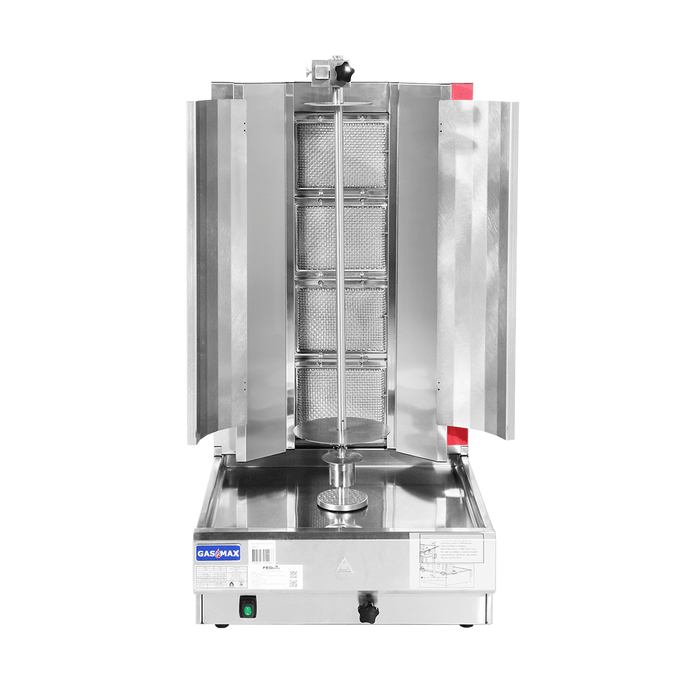

  • Heat Shields on Both Sides: Stainless steel shields protect and maintain consistent cooking temperatures

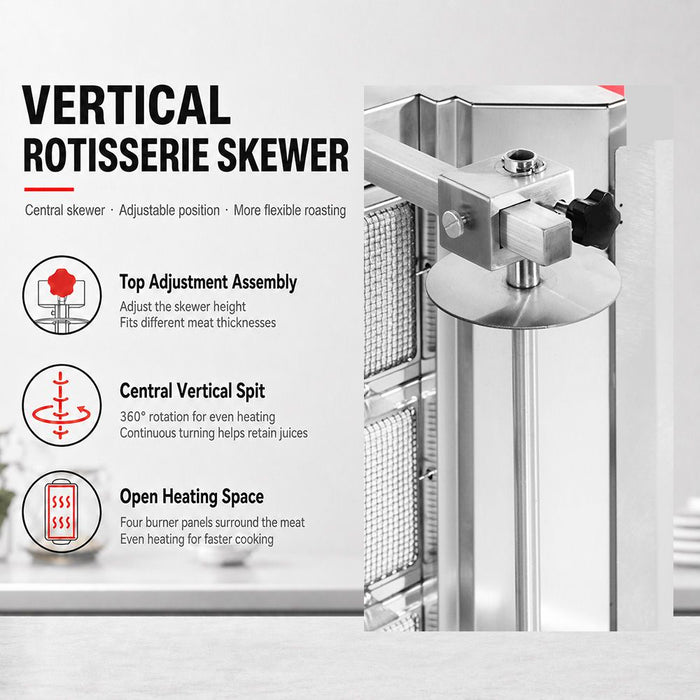

  • Adjustable Cooking Spit: Allows flexibility in distance between the spit and burners for optimal cooking control
  • Spit Length 5 burners - 965mm, 4 burners - 711mm, 3 burners – 533mm
  • Efficient Main Burner Pilot: Enables instant ignition for quick start-up hygiene

Technical Specifications

KB-4 Specifications

SpecificationDetail
ModelKB-4
Gas / Power TypeNatural Gas

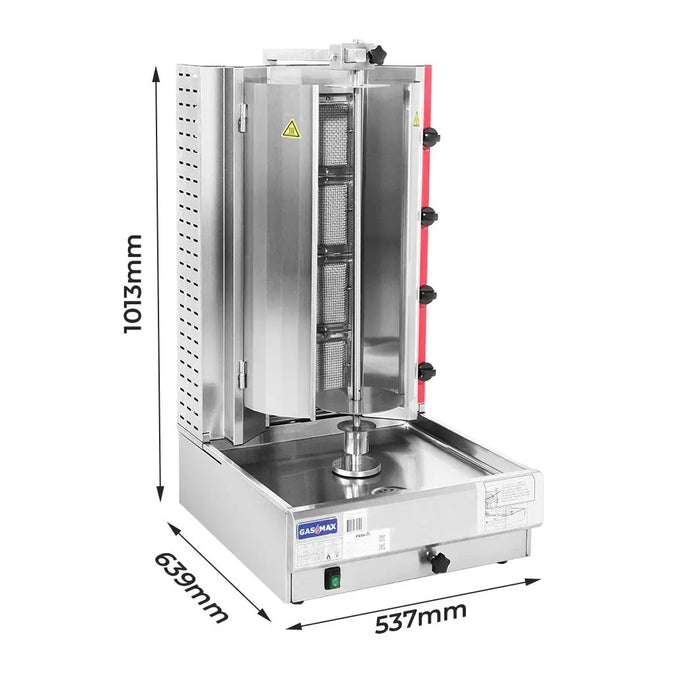

External Dimensions537 W × 639 D × 1013 H mm
Packed Dimensions650 W × 780 D × 1200 H mm
Power10A plug

KB-4LPG Specifications

SpecificationDetail
ModelKB-4LPG
Gas / Power TypeLPG
External Dimensions537 W × 639 D × 1013 H mm
Packed Dimensions650 W × 780 D × 1200 H mm
Power10A plug

Installation and Care

Vertical rotisserie cooking requires disciplined food-safety procedures. Maintain safe surface cooking and slicing rates, protect the lower product from raw juices, clean the motor/rod/drip area daily and confirm gas and ventilation requirements with the installer.

Warranty

2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice

Downloads & Technical Documents

Review the model-specific documents below when planning Gasmax KB-4 4 Burner Semi-Automatic Kebab Machine for installation, operation or servicing. Confirm site services, clearances and commissioning requirements with the appropriate qualified tradesperson before installation.

KB-4LPG - LPG

  • Dimension 537 W × 639 D × 1013 H mm
  • Weight
