Gasmax QR-14 350mm commercial chargrill countertop model - Simply Hospitality NZ

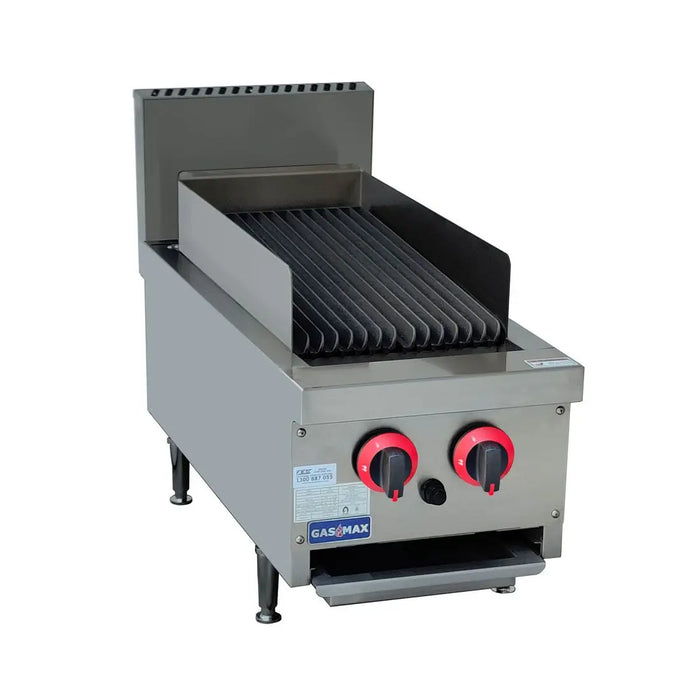

Gasmax QR-14 350mm Commercial Chargrill - Countertop or Freestanding

$1,701.21 - $2,134.24
$1,701.21
$1,701.21 - $2,134.24
$1,701.21
SKU QR-14E

The Gasmax QR-14 is a compact 350mm commercial chargrill for kitchens that want genuine flame-grilled character without dedicating a wide section of the cookline. Choose the countertop unit for installation on a suitable commercial bench, or the freestanding package supplied with the dedicated stainless steel QR-14-SEN stand and solid undershelf.

Key Features

  • Countertop and freestanding configurations
  • Natural Gas and LPG model options
  • Heavy-duty cast-iron bar burner and radiant cover
  • Flame-failure protection and ignition
  • Stainless steel front and sides
  • Bottom oil collector for grease management
  • Dedicated freestanding stand includes a solid storage undershelf
  • Narrow 354mm chargrill width suits compact cooklines

Why Choose This Product

Choose the QR-14 when grilled flavour and clear sear marking matter, but a wider chargrill would consume space needed for other cooking equipment. The countertop version gives maximum placement flexibility; the freestanding package creates a complete, correctly matched floor-standing station with useful storage below.
Simply Hospitality Notes

The freestanding option is a package containing the same QR-14 chargrill plus the dedicated QR-14-SEN stand; it is not a higher-output grill. Confirm Natural Gas or LPG, extraction capacity, the 3/4-inch rear connection route and the installed working height before ordering. For compact kitchens, the stand is useful because it avoids occupying bench space and adds a solid storage shelf beneath the grill.

Product Guide

Choose Countertop when a suitable non-combustible equipment bench is already available and the grill needs to sit within an existing line. Choose Freestanding when you need a complete floor-standing station or want to preserve bench space. Select gas type only after checking the site supply: QR-14E is Natural Gas at 44MJ/h, while QR-14ELPG is LPG at 39MJ/h. Both cook on the same 350mm-class chargrill format.

Brand Guide

About Gasmax: Gasmax offers practical commercial gas cooking equipment built around strong output, straightforward controls and task-specific formats. The range is well suited to operators seeking dependable day-to-day performance and accessible ownership costs across cooktops, grills, fryers, woks and specialty gas equipment.

Product Details

The QR-14 uses a cast-iron bar burner and radiant cover to deliver the direct, high-temperature cooking character expected from a commercial chargrill. The narrow format is particularly useful for restaurants, cafΓ©s and takeaway kitchens that need a focused grill station for steaks, skewers, seafood, vegetables or burger proteins without installing an oversized appliance.

Choose Your Configuration

ConfigurationGasSupplied ComponentsCombined SKU
CountertopNatural GasQR-14E chargrillQR-14E
CountertopLPGQR-14ELPG chargrillQR-14ELPG
FreestandingNatural GasQR-14E chargrill + QR-14-SEN standQR-14E + QR-14-SEN
FreestandingLPGQR-14ELPG chargrill + QR-14-SEN standQR-14ELPG + QR-14-SEN

The freestanding options use exactly the same chargrill as the countertop versions. The stand changes the installation format and adds undershelf storage; it does not alter burner output or cooking capacity.

Chargrill Construction and Operation

  • Stainless steel front and sides
  • Heavy-duty cast-iron bar burner
  • Cast-iron radiant cover retains and distributes heat
  • Flame-failure protection
  • Ignition for straightforward start-up
  • Stainless steel adjustable heavy-duty legs
  • Oil collector positioned beneath the cooking area
  • 3/4-inch rear gas connection

Chargrill Specifications

SpecificationQR-14EQR-14ELPG
Gas typeNatural GasLPG
Dimensions354(W) Γ— 773(D) Γ— 475(H)mm354(W) Γ— 773(D) Γ— 475(H)mm
Packed dimensions480(W) Γ— 580(D) Γ— 590(H)mm480(W) Γ— 580(D) Γ— 590(H)mm
Gas input44MJ/h39MJ/h

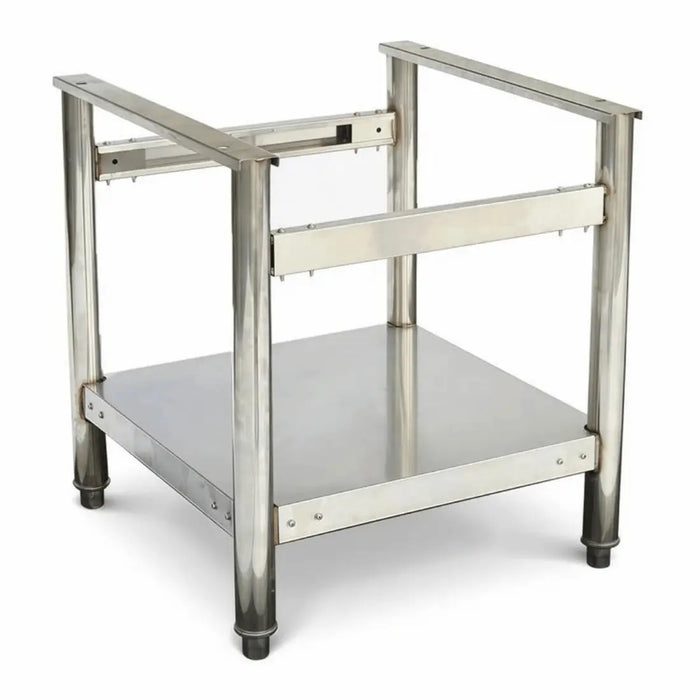

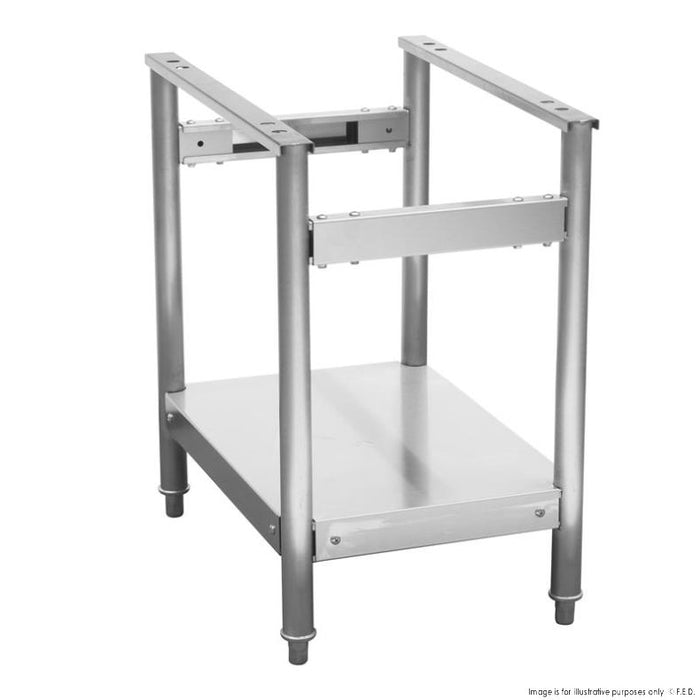

QR-14-SEN Stand Specifications

CompatibilityQR-14E and QR-14ELPG chargrills
ConstructionStainless steel stand with solid undershelf
Dimensions352(W) Γ— 600(D) Γ— 659(H)mm
Packed dimensions580(W) Γ— 760(D) Γ— 190(H)mm

The manufacturer publishes the component dimensions separately. Confirm the final installed working height and mounting arrangement during installation rather than adding the two component heights together.

Installation and Ventilation

Gas connection, commissioning and any conversion work must be completed by a suitably qualified gasfitter. Confirm the selected gas type before ordering, check the rear service route and allow access for cleaning and maintenance. Chargrilling fatty proteins can create a significant smoke and vapour load, so the extraction system must be assessed against the actual menu and peak productionβ€”not only the appliance width.

Cleaning and Care

Remove grease and food debris from the bars, radiants and oil collector every day. Keep burner ports clear, allow components to cool before cleaning and avoid directing water into gas controls or ignition components. A disciplined cleaning routine protects heat distribution, ignition reliability and ventilation performance.

Warranty

2 years parts and labour plus an additional 2 years parts-only warranty when registered within 14 days of invoice, subject to the supplier's warranty terms.

  • Dimension Chargrill: 354(W) Γ— 773(D) Γ— 475(H)mm; stand: 352(W) Γ— 600(D) Γ— 659(H)mm
  • Weight
