Gasmax GG-24 600mm Commercial Griddle - GG-24LPG LPG - Simply Hospitality NZ

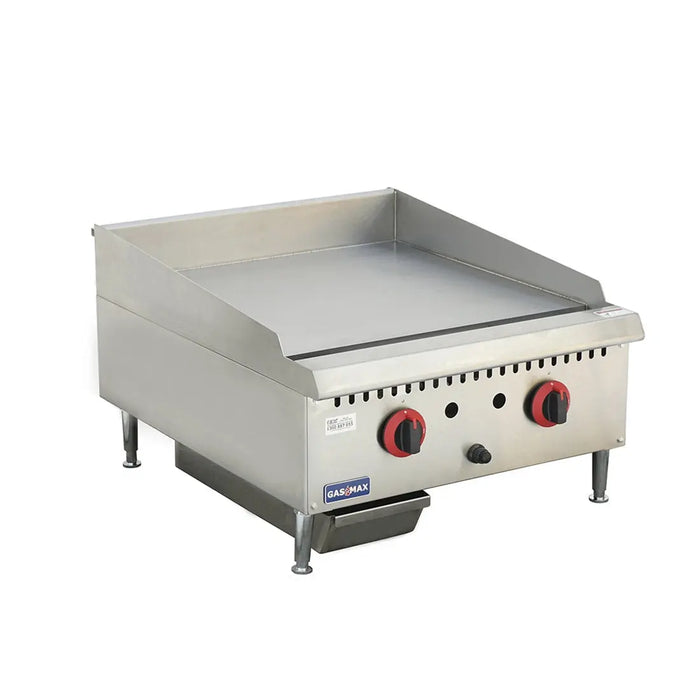

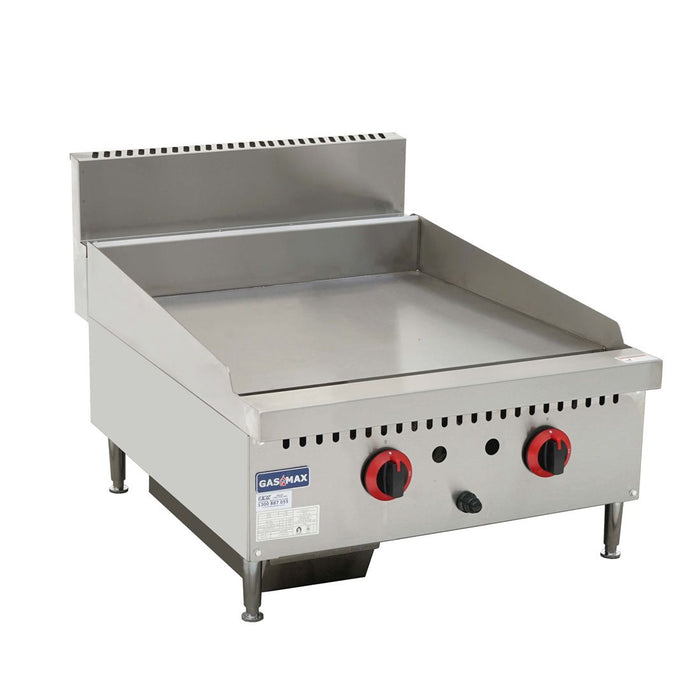

Gasmax GG-24 600mm Commercial Griddle

$2,061.04 - $2,061.04
$2,061.04
$2,061.04 - $2,061.04
$2,061.04
SKU GG-24LPG

Gasmax GG-24 600mm Commercial Griddle is a mid-width commercial gas griddle for all-day breakfast, burger, protein and batch-cooking work, with a broad steel plate that turns the available frontage into a productive flat cooking surface.

Key Features

  • Heavy-duty flat cooking plate
  • Independent commercial gas controls
  • Stainless-steel body and splash protection
  • Front grease channel and removable collection tray
  • Flame-failure safety system
  • Natural Gas and LPG model options
  • 60MJ/h stated input/output
  • 610 W × 824 D × 546 H mm external dimensions

Why Choose This Product

Choose this width for the most useful balance between cooking area and line space. It can establish separate heat zones for breakfast, burgers or proteins without the cleaning burden and gas demand of a larger plate that may spend part of service under-used.
Simply Hospitality Notes

GG-24 and GG-24LPG: A thick commercial plate needs proper preheating and controlled temperature changes; repeatedly driving every burner at maximum can create unnecessary hot spots. Confirm gas capacity, ventilation and required clearances, and establish a daily scrape, empty and seasoning routine before the unit enters service. The supplier states 60MJ/h; have this service requirement checked against the site before ordering.

Product Guide

Size the griddle from peak simultaneous cooking, not average trade. Allow room for separate raw, cooking and finishing zones, then confirm the plate can be fully used beneath the available extraction. A mid-width model is most valuable when its working area matches the real menu rather than simply the available bench width. GG-24 and GG-24LPG are the exact Natural Gas and LPG model codes; select the fuel only after the site supply is confirmed.

Brand Guide

About Gasmax: Gasmax offers practical commercial gas cooking equipment built around strong output, straightforward controls and task-specific formats. The range suits operators who value dependable day-to-day performance, accessible ownership costs and a broad choice of cooktop, grill, fryer, wok and speciality configurations.

Model Selection

ModelConfigurationDimensionsServices / OutputNet Weight
GG-24Natural Gas610 W × 824 D × 546 H mm60MJ/h—
GG-24LPGLPG610 W × 824 D × 546 H mm66MJ/h—

Construction and Operation

  • Stainless Steel Construction
  • Two Heavy Duty Burners
  • Steel u-shape burner, each 30mj/hr for better heat distribution
  • Flame failure system for safety
  • Adjustable heavy-duty legs
  • Grease through the channel at the front
  • Stainless steel oil collector at the bottom
  • Durable brass control valve
  • Easy gas conversion in the field
  • 3/4-inch rear gas connection

Technical Specifications

GG-24 Specifications

SpecificationDetail
ModelGG-24
Gas / Power TypeNatural Gas
External Dimensions610 W × 824 D × 546 H mm
Packed Dimensions890 W × 890 D × 520 H mm
Power60MJ/h

GG-24LPG Specifications

SpecificationDetail
ModelGG-24LPG
Gas / Power TypeLPG
External Dimensions610 W × 824 D × 546 H mm
Packed Dimensions890 W × 890 D × 520 H mm
Power66MJ/h

Installation and Care

A thick commercial plate needs proper preheating and controlled temperature changes; repeatedly driving every burner at maximum can create unnecessary hot spots. Confirm gas capacity, ventilation and required clearances, and establish a daily scrape, empty and seasoning routine before the unit enters service.

Warranty

2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice

Downloads & Technical Documents

Review the model-specific documents below when planning Gasmax GG-24 600mm Commercial Griddle for installation, operation or servicing. Confirm site services, clearances and commissioning requirements with the appropriate qualified tradesperson before installation.

GG-24 - Natural Gas

GG-24LPG - LPG

  • Dimension 610 W × 824 D × 546 H mm
  • Weight
