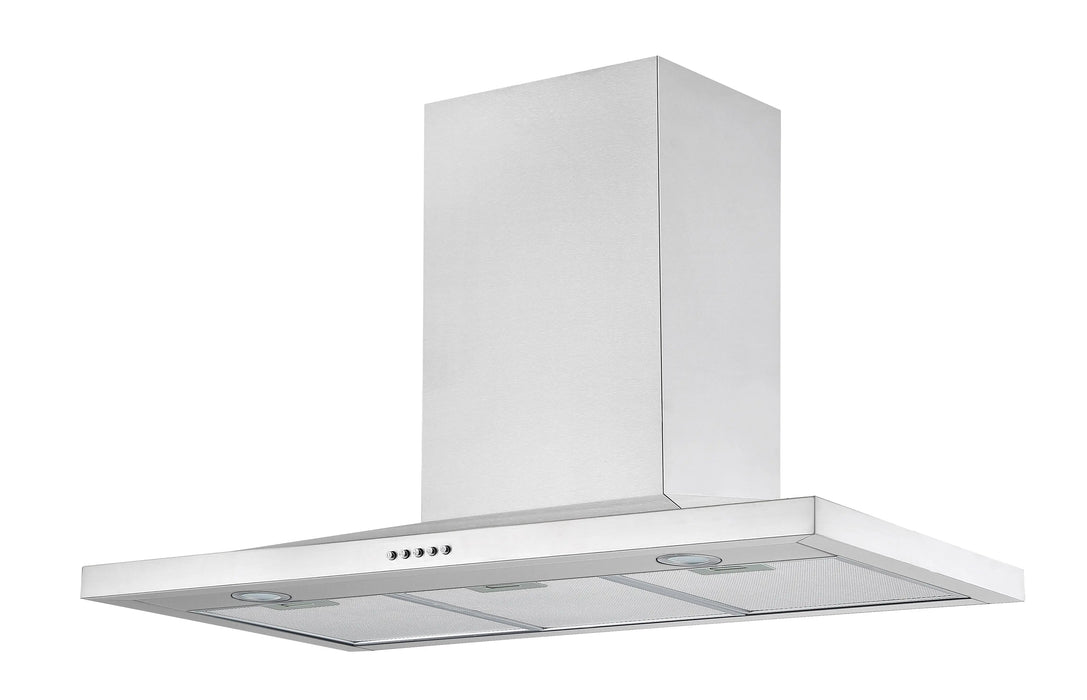

Award Low Profile 90cm Canopy RangehoodΒ  Rangehoods

Award Low Profile 90cm Canopy Rangehood

$918.47 - $918.47
$918.47
$918.47 - $918.47
$918.47
SKU CS9-900S

Award Low Profile 90cm Canopy Rangehood is designed to manage everyday cooking vapour while fitting the stated canopy, powerpack or built-in format. A key distinction is quiet turbo motor for efficient extraction, helping match extraction performance and visual impact to the way the kitchen is designed.

  • 90cm wall-mounted low profile canopy rangehood
  • Quiet turbo motor for efficient extraction
  • Three fan speed settings
  • Maximum extraction rate of 1000 mΒ³/hr
  • Operating noise level of 54 dB(A)
  • Aluminium grease filters
Why Choose This Product

Choose this model when its visible form suits the kitchen and you want extraction positioned directly over the cooking surface. The quiet turbo motor for efficient extraction gives it a clear practical advantage, but the real purchase decision is the complete system: canopy width, capture area, duct route and make-up air should all work together.
Simply Hospitality Notes

Simply Hospitality note: Real extraction performance depends heavily on installation. Keep ducting as short, smooth and correctly sized as possible, minimise sharp bends and confirm where replacement air will enter the room. Match any recirculating filter or remote motor to the exact model code. Model reference: CS9-900S.

Product Guide

Use this model above a cooktop of compatible width and plan the hood, motor and duct path as one system. Size the capture area for the cooking styleβ€”high-output gas and wok cooking need more attention than light induction use. Start extraction before cooking, leave it running briefly afterwards, clean grease filters on schedule and replace or regenerate recirculating filters exactly as specified.

Brand Guide

About Award: Award Appliances is a New Zealand family-owned appliance business established in 1946. Its range is designed around the needs of New Zealand kitchens, with practical cooking, ventilation, refrigeration, dishwashing and laundry solutions supported locally. Award Advance is the brand’s more specialised ventilation collection, created for customers and designers who want stronger architectural integration and greater flexibility around motor placement and kitchen acoustics.

Product Details

This model uses the stated canopy or concealed format to establish the capture zone immediately above the cooktop. A defining characteristic is quiet turbo motor for efficient extraction, while grease filtration, duct geometry and outlet position determine how well the system performs once installed. A larger airflow figure cannot compensate for a restrictive duct run or a hood positioned poorly over the cooking surface.

Technical Specifications

  • Appliance type: Wall-mounted low profile canopy rangehood
  • Width: 90 cm
  • Motor type: Turbo motor
  • Fan speeds: 3
  • Maximum extraction: 1000 mΒ³/hr
  • Operating noise level: 54 dB(A)
  • Filters: Aluminium grease filters
  • Lighting: LED
  • Timer: Yes
  • Ducting requirement: 150 mm diameter
  • Recirculation option: Optional CF110 filters

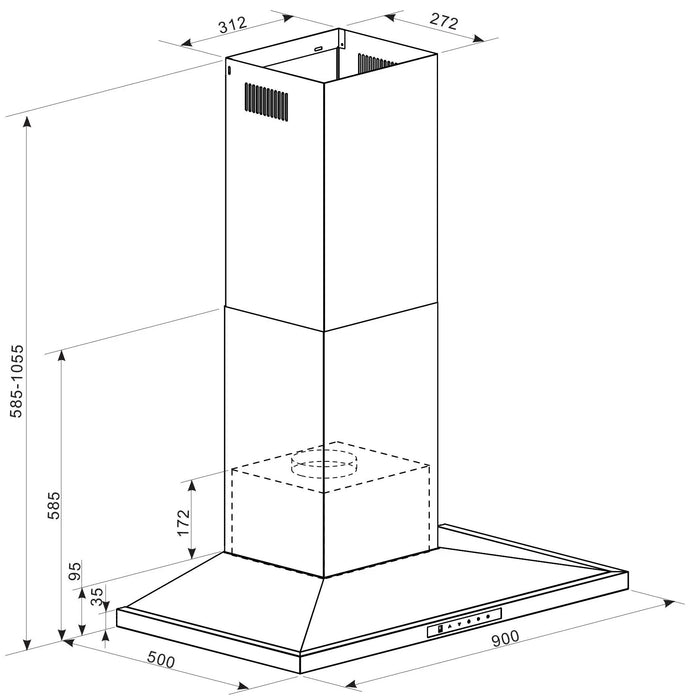

  • Dimensions: 900 mm (W) Γ— 585–1055 mm (H) Γ— 500 mm (D)
