Merrychef conneX16 HP High Speed Cook Oven  Ovens

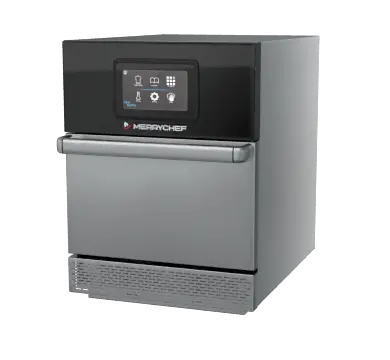

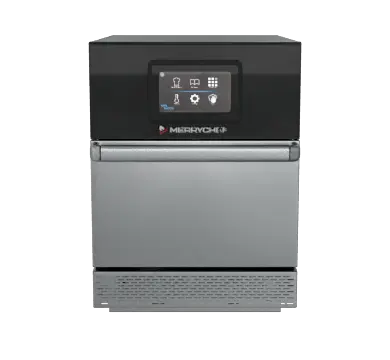

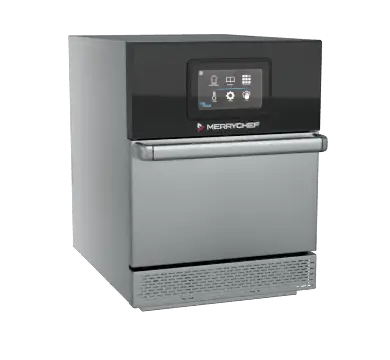

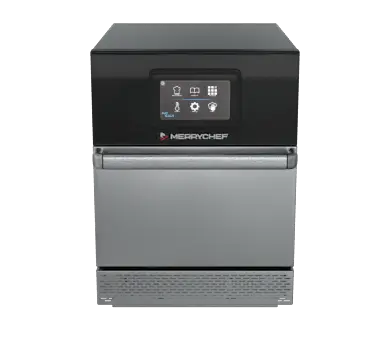

Merrychef conneX16 HP High-Speed Oven

$34,868.00 - $34,868.00
$34,868.00
$34,868.00 - $34,868.00
$34,868.00
SKU CONNEX16HP

The Merrychef conneX16 HP High-Speed Oven combines microwave energy, convection heat and impingement to deliver up to 20 times faster than conventional cooking methods. It is designed for high-volume kitchens serving full pizzas, larger plated items, multi-portion loads and menus that outgrow the working area of a 12-inch speed oven.

  • 405 x 405 mm plate capacity for 16-inch products and larger batches
  • 3.2 kW convection output for strong browning across the wider cavity
  • 2.0 kW microwave output for high-speed internal heating
  • Connected 7-inch touchscreen with six-stage programs
  • Internal catalytic filtration and quiet operation below 48 dB(A)

Why Choose This Product

Choose the conneX16 HP because the menu genuinely benefits from its wider cooking platform. It accepts 16-inch plates and creates more usable area for larger products or multiple portions, while 3.2 kW convection supports colour and crispness across that space. It is not simply a conneX12 with a larger door; it is the better production tool when product size or batch layout is the limiting factor.
Simply Hospitality Notes

Measure the whole station before choosing conneX16: the oven is 459 mm wide, 684 mm deep and intended for a 700 mm bench. It also requires the 400-415V, 20A 5-pin supply. If every menu item fits comfortably on the conneX12 plate, the narrower oven may create a more efficient counter.

Product Guide

Choose conneX16 HP for 16-inch plates, larger products or multi-item batches. Choose conneX12 HP for the same microwave power in a narrower footprint, conneX12 SP for 15A installation, or conneX16 B HP when the larger oven will be visible to customers and black is the better finish.

Brand Guide

About Merrychef: Merrychef builds specialist high-speed ovens for foodservice operators who need conventional-oven quality in service times measured in seconds or minutes. Its ovens combine microwave energy for rapid internal heating, convection for controlled cooking and impingement for browning and crispness. The range spans compact plug-in models through higher-powered conneX ovens for greater throughput. The right choice depends on menu size, plate format, peak-hour demand, electrical supply and how many recipes need to be standardised across the team.

Product Specifications

  • Model: conneX16 HP
  • Finish: Stainless steel
  • Maximum plate format: Up to 405 x 405 mm (16-inch)
  • External dimensions: 459W x 684D x 619H mm
  • Product weight: 67.2 kg
  • Bench planning: 700 mm bench depth
  • Temperature range: 100°C to 275°C in 1°C steps
  • Microwave output: 2.0 kW
  • Convection output: 3.2 kW
  • Electrical requirement: 400-415V, 50Hz, 2P+N+E; 5.8 kW; 20A 5-pin plug

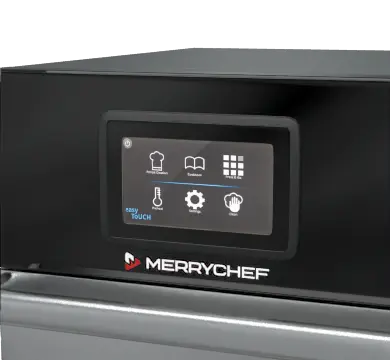

  • Controls: 7-inch HD easyTouch 2.0 touchscreen; six-stage cooking profiles; written and pictorial instructions
  • Menu transfer / connectivity: USB menu transfer plus Wi-Fi and Ethernet connectivity
  • Noise level: Less than 48 dB(A)

How It Delivers Speed

Microwave energy heats the centre of the food rapidly, convection controls the cooking environment and tuned impingement drives hot air across the surface for browning and crispness. Multi-stage recipes can vary time, temperature, microwave power and on-screen instructions so the result is repeatable across operators rather than dependent on individual judgement.

Best Suited To

high-volume kitchens serving full pizzas, larger plated items, multi-portion loads and menus that outgrow the working area of a 12-inch speed oven.

Included Accessories

  • Flat cook plate
  • Guarded paddle with sides
  • Full-size cooking tray
  • Cool-down pan
  • Two cook-plate liners
  • Oven cleaner and oven protector

Installation and Daily Care

  • Ventilation: EPA 202-tested ventless capability with internal catalytic filtration; final local ventilation approval remains site-specific.
  • Minimum planning clearance: 0 mm at sides and rear; 50 mm above; not intended for built-in installation.
  • Confirm the specified supply, plug, isolator and type D circuit protection with a qualified electrician before delivery.
  • Keep the front air filter clean and unobstructed; cooling airflow is essential to component life.
  • Use the approved oven cleaner and protector, cool-down routine and non-abrasive tools described in the supplied documentation.

Choosing the Right Merrychef

Choose conneX16 HP for 16-inch plates, larger products or multi-item batches. Choose conneX12 HP for the same microwave power in a narrower footprint, conneX12 SP for 15A installation, or conneX16 B HP when the larger oven will be visible to customers and black is the better finish.

Documentation
