Product Specifications

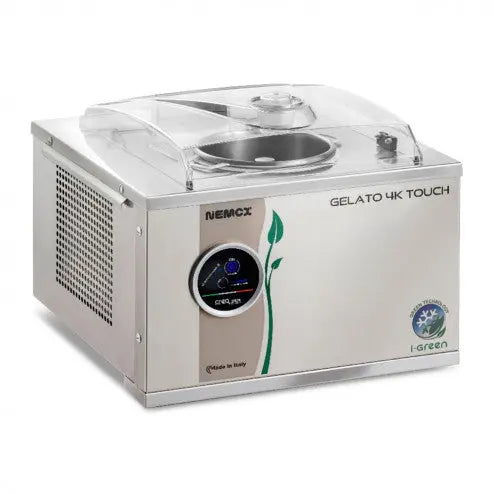

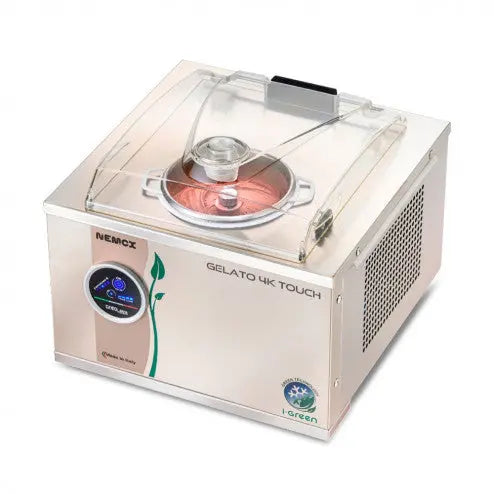

- Model: GELATO 4K TOUCH I-GREEN
- Machine format: Fully automatic professional countertop gelato machine
- Production per cycle: 1 kg / approximately 1.4-1.5 L
- Average cycle time: 12-15 minutes
- Maximum hourly production: 4 kg / approximately 5.6-6 L
- Bowl configuration: 2.5 L fixed stainless-steel bowl plus 2.5 L removable stainless-steel bowl
- Controls: Touchscreen, automatic production and storage cycle, timeline display, pause function and electronic density control
- Storage / holding: Automatic storage for up to 8 hours with five selectable consistency levels
- Paddle speed: 65 rpm induction mixing motor
- Refrigeration: Air-cooled R290 refrigeration
- Electrical requirement: 220-240V, 50Hz, single phase, 320W
- External dimensions: 415W x 430D x 310H mm
- Net weight: 26.2 kg
- Construction: Stainless-steel case, bowls and paddle with removable scraper inserts
Production Workflow
The stated output assumes correctly chilled mix, accurate batch loading and normal ambient conditions. Electronic density control monitors resistance at the paddle and protects the mixing system as the product firms. Automatic models reduce the need for an operator to judge the finishing point, while manual control remains useful for recipe development and products that need a particular extraction texture.
Best Suited To
restaurants, cafés, pastry kitchens and dessert bars that need repeatable daily production without a specialist operator watching every batch.
Included Accessories
- 2.5 L stainless-steel removable bowl
- Paddle for fixed bowl
- Removable paddle scraper set
- Gelato spatula
- Measuring cup
Installation and Care
- Allow free airflow around the air-cooled refrigeration system; do not enclose the ventilation openings.
- Confirm the supply, plug and local electrical requirements before delivery.
- Pre-chill the mix within the temperature range recommended in the data sheet and never exceed the stated ingredient weight.
- Clean and sanitise the bowl, paddle, scrapers and lid after production; follow the model-specific drain routine where fitted.
- R290 is a flammable natural refrigerant. Refrigeration servicing must be carried out by appropriately qualified personnel.
Choosing the Right Nemox
Select 4K Touch for fully automatic 1 kg batches, faster cycling and minimal operator oversight. Chef 5L is less automated and better for planned lower-volume prep. Choose 5K CREA SC when hourly output and programmed product styles need to increase, or 6K CREA for the highest countertop output and variable paddle speed.
