Product Specifications

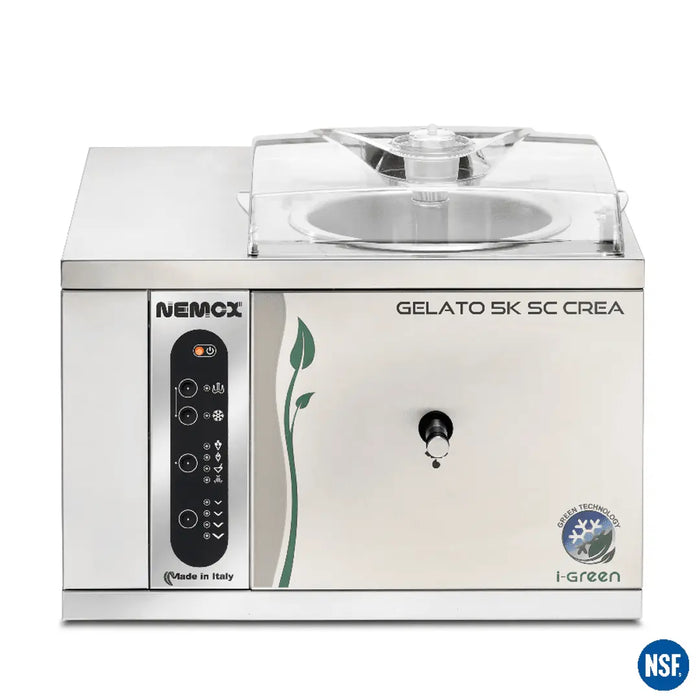

- Model: GELATO 5K CREA SC I-GREEN
- Machine format: Automatic professional countertop batch freezer
- Production per cycle: 1.25 kg / approximately 1.75 L
- Average cycle time: 12-15 minutes
- Maximum hourly production: 5 kg / approximately 7 L
- Bowl configuration: Fixed professional batch-freezer bowl
- Controls: Manual control or four automatic production programs: classic gelato, semi-soft gelato, granita and fast cooling
- Storage / holding: Four automatic storage programs matched to the selected product program
- Paddle speed: 65 rpm
- Refrigeration: Air-cooled i-Green refrigeration
- Electrical requirement: 220-240V, 50Hz, single phase, 500W
- External dimensions: 465W x 480D x 395H mm
- Net weight: 35.3 kg
- Construction: Stainless-steel body and 18/10 stainless-steel paddle with removable technopolymer scrapers
Production Workflow
The stated output assumes correctly chilled mix, accurate batch loading and normal ambient conditions. Electronic density control monitors resistance at the paddle and protects the mixing system as the product firms. Automatic models reduce the need for an operator to judge the finishing point, while manual control remains useful for recipe development and products that need a particular extraction texture.
Best Suited To
restaurants, pastry shops, caterers, coffee shops and small gelato operations that need dependable 5 kg-per-hour production from a countertop machine.
Included Accessories
- Stainless-steel mixing paddle
- Removable scraper set
- Gelato spatula
- Drain-cleaning brush
Installation and Care
- Allow free airflow around the air-cooled refrigeration system; do not enclose the ventilation openings.
- Confirm the supply, plug and local electrical requirements before delivery.
- Pre-chill the mix within the temperature range recommended in the data sheet and never exceed the stated ingredient weight.
- Clean and sanitise the bowl, paddle, scrapers and lid after production; follow the model-specific drain routine where fitted.
- R290 is a flammable natural refrigerant. Refrigeration servicing must be carried out by appropriately qualified personnel.
Choosing the Right Nemox
Select 5K CREA SC for approximately 5 kg per hour, four recipe styles and automatic storage. Choose 4K Touch for smaller fully automated batches with a removable bowl. Move to 6K CREA when 7 kg hourly output and variable-speed inverter control will materially improve production.
