Product Specifications

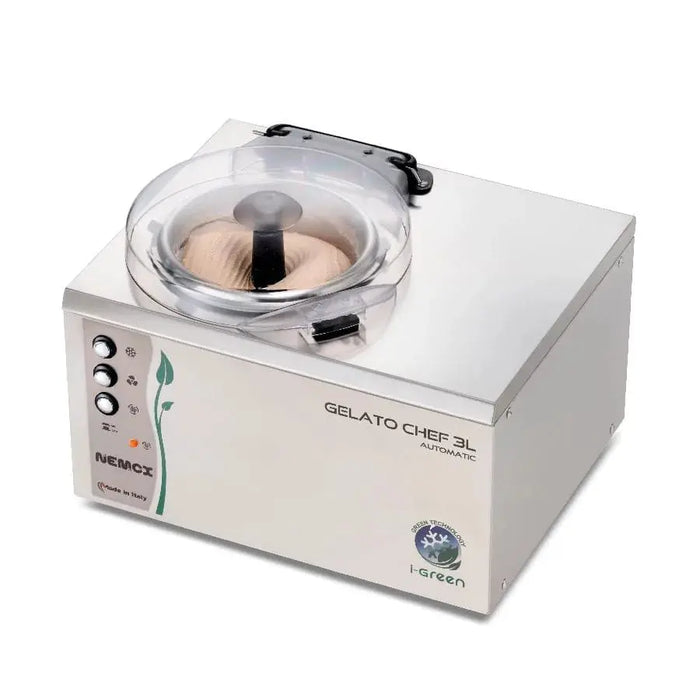

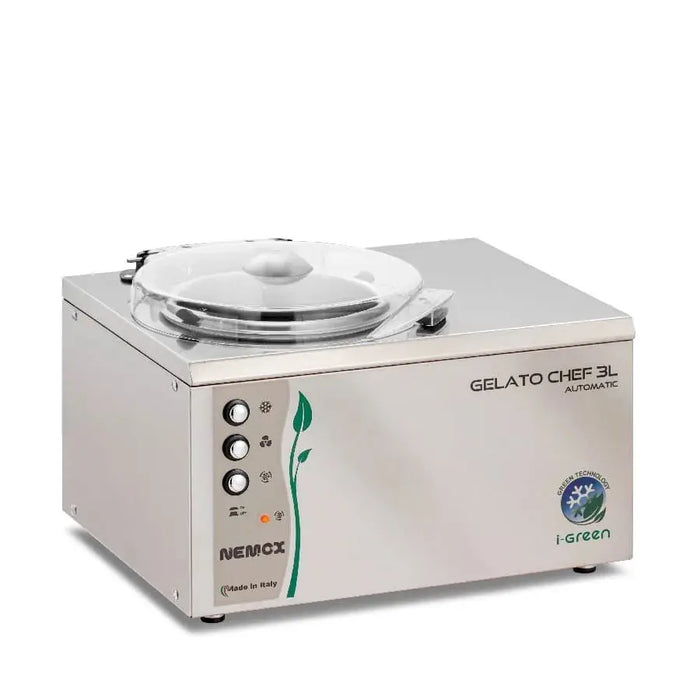

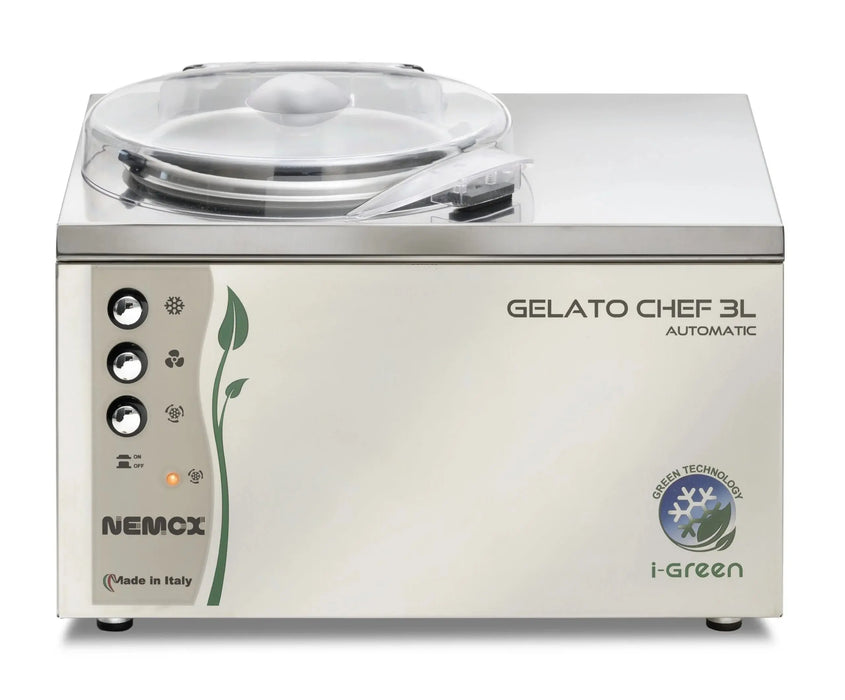

- Model: GELATO CHEF 3L AUTOMATIC I-GREEN
- Machine format: Compact semi-professional countertop gelato machine
- Production per cycle: 0.85 kg / approximately 1.5 L
- Average cycle time: 25-30 minutes
- Maximum hourly production: 1.7 kg / approximately 3 L
- Bowl configuration: 2 L fixed stainless-steel bowl plus 2 L removable stainless-steel bowl
- Controls: Manual or automatic operation with electronic density control
- Storage / holding: Operator-selectable storage mode; recommended maximum holding period 8 hours
- Paddle speed: 30 rpm
- Refrigeration: Air-cooled R290 refrigeration
- Electrical requirement: 220-240V, 50-60Hz, single phase, 160W
- External dimensions: 400W x 345D x 310H mm
- Net weight: 15.6 kg
- Construction: Steel body with stainless-steel fixed and removable bowls
Production Workflow
The stated output assumes correctly chilled mix, accurate batch loading and normal ambient conditions. Electronic density control monitors resistance at the paddle and protects the mixing system as the product firms. Automatic models reduce the need for an operator to judge the finishing point, while manual control remains useful for recipe development and products that need a particular extraction texture.
Best Suited To
restaurants, small cafés and chefs testing a short house-made gelato or sorbet menu without committing to a production-scale batch freezer.
Included Accessories
- 2 L stainless-steel removable bowl
- Paddle for fixed bowl
- Paddle for removable bowl
- Gelato spatula
- Measuring cup
Installation and Care
- Allow free airflow around the air-cooled refrigeration system; do not enclose the ventilation openings.
- Confirm the supply, plug and local electrical requirements before delivery.
- Pre-chill the mix within the temperature range recommended in the data sheet and never exceed the stated ingredient weight.
- Clean and sanitise the bowl, paddle, scrapers and lid after production; follow the model-specific drain routine where fitted.
- R290 is a flammable natural refrigerant. Refrigeration servicing must be carried out by appropriately qualified personnel.
Choosing the Right Nemox
Select Chef 3L for limited production, the smallest footprint and the lowest connected load. Chef 5L shortens the cycle and nearly doubles hourly output. Gelato 4K Touch is the better step when repeated daily production, touchscreen automation and continuous flavour turnover are operational requirements.
