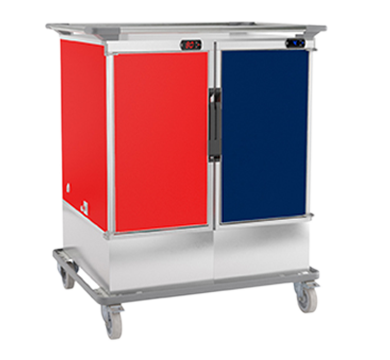

SDX KF240R 8+8-Tray Compressor-chilled & convection-heated Thermobox - product image

SDX KF240R 8+8-Tray Compressor-chilled & convection-heated Thermobox

$23,307.56 - $23,307.56
$23,307.56
$23,307.56 - $23,307.56
$23,307.56
SKU KF240R

The SDX KF240R 8+8-Tray Compressor-chilled & convection-heated Thermobox is a side-by-side cabinet with 8+8 x 1/1 GN capacity for professional food transport and meal delivery. Its compressor-chilled & convection-heated configuration combines polyurethane insulation, hygienic internal surfaces and commercial mobility around a clearly defined temperature workflow.

  • 8 + 8 x 1/1 GN tray capacity compressor chilling and convection heating side by side Thermobox
  • 80mm tray spacing
  • Cooling section 230V/190W AC
  • Heated section 230V/550W, CE and S mark
  • Efficient compressor cooling with electronic temperature control 230V/245W
  • Efficient convection heating system with electronic temperature control foil element

Why Choose This Product

Choose the KF240R when one journey must carry hot and cold food in independent zones. It combines compressor cooling for stronger sustained cold holding with convection heat for faster, more even recovery; the side-by-side layout keeps both zones at an accessible working height, avoiding separate trolleys while preserving distinct temperature workflows.
Simply Hospitality Notes

Do not select this model on tray count alone. Confirm the 930 x 750 x 1245mm footprint, loaded weight, doorway and lift clearances, GN pan depth, food temperature on loading and realistic journey or staging time. Allow extra turning room for the wide cabinet.

Product Guide

For hot food, E models use static heat and suit stable preheated loads; F models circulate heated air and are preferable where even recovery and repeated access matter. For cold food, S models rely on insulation, C combinations use compact active chilling, and K models use compressor refrigeration for the strongest sustained cold control. Stacked combinations save floor width; side-by-side models improve access but need wider doors, lifts and turning circles. Size the cabinet from actual GN format, tray count, pan depth, route duration and access—not litres or model number alone.

Brand Guide

About SDX Thermobox: SDX Thermobox develops modular food-transport equipment for professional meal-delivery, healthcare, catering and production environments. Its system is organised by temperature technology and cabinet format: passive insulated, static heated, convection heated, active chilled and compressor chilled modules can be selected alone or combined into stacked and side-by-side trolleys. Fully welded interiors, polyurethane insulation, deep-drawn guides and service-friendly transport frames are designed around hygiene, temperature control and repeated movement rather than decorative front-of-house display.

Operational Fit

The side-by-side cabinet is intended for 8+8 x 1/1 GN capacity within professional meal-delivery and catering workflows. Its wider two-zone layout favours access and separation, but requires more doorway and turning clearance.

Technical Specifications

  • External dimensions (W x D x H): 930 x 750 x 1245mm
  • Capacity / configuration: 8 + 8 x 1/1 GN tray capacity compressor chilling and convection heating side by side Thermobox
  • Feature: 80mm tray spacing
  • Feature: Cooling section 230V/190W AC
  • Feature: Heated section 230V/550W, CE and S mark
  • Feature: Efficient compressor cooling with electronic temperature control 230V/245W
  • Feature: Efficient convection heating system with electronic temperature control foil element
  • Feature: ABS plastic external walls with stainless steel all-welded inner container
  • Feature: Polyurethane foam insulation
  • Feature: Bolt lock and door mounted handle for single-handed grip
  • Feature: Trolley frame galvanised steel coated with PVC
  • Feature: 160mm castors with rubber track
  • Feature: 2x each brakes and fixed castors
  • Feature: Deep drawn guides, easy cleaning and increased safety

Installation & Operating Considerations

  • Confirm the loaded route, doorway and lift clearances before ordering; published dimensions do not include operator turning space.
  • Confirm the stated 230V load, plug arrangement and where the cabinet will remain connected during staging.
  • Pre-condition the cabinet, load food at the correct starting temperature and validate holding time against the venue's food-safety plan.
  • Keep door openings brief and clean the welded interior, guides, door gasket and castors as part of the route turnaround.
