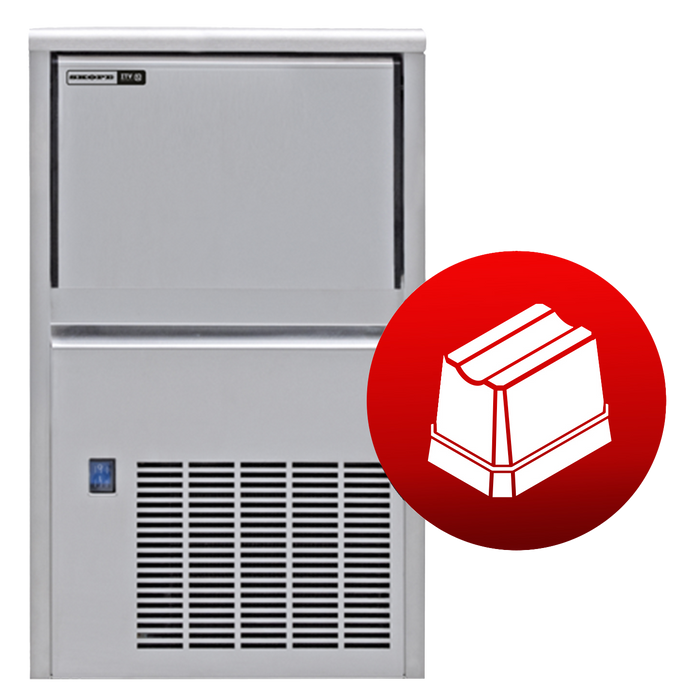

ITV ALFA NDP20 Self-contained Ice Maker - ALFA NDP20 A product image

ITV ALFA NDP20 Self-contained Ice Maker - ALFA NDP20 A

$2,843.85 - $2,843.85
$2,843.85
$2,843.85 - $2,843.85
$2,843.85
SKU ITV-NDP20 A-R290

The ALFA NDP20 A is an ITV ice system supplied by SKOPE for commercial ice production matched to the required ice format and peak service demand, with production and storage selected around its specific service role. This exact configuration is supplied with stainless steel.

Key Features

  • Nominal cycle yield: 23 kg
  • Approximate ice production: 23 kg per 24 hours
  • 1 door configuration with solid swing door
  • Rated for ambient temperatures up to 43°C
  • Stainless steel 304 AISI cabinet construction
  • R290 refrigerant
  • Integrated ice storage: 6 kg
  • Individual ice weight: 17 g

Why Choose This Product

Choose this ITV model for the particular ice format and service pattern it was engineered to support, not simply for its headline daily output. The right machine balances recovery, usable reserve, drink or display performance and site services; SKOPE-backed New Zealand support gives the purchase a stronger ownership proposition than an unsupported commodity ice maker.

Apply for Finance
Simply Hospitality Notes

Confirm the finished opening against the 350 x 475 x 593 mm cabinet dimensions and allow the clearances stated in the installation documents. Protect condenser airflow and preserve service access; enclosing a self-contained unit too tightly can reduce performance and increase running cost. Treat filtration, potable-water quality and a continuously falling drain as part of the installation, then size reserve storage around the busiest demand peak.

Product Guide

Size ALFA NDP20 A from the busiest service window rather than average daily demand. Confirm the required ice format, realistic production at local water and ambient conditions, usable bin capacity, water treatment, drainage and ventilation. A separate storage bin, drain pump or filtration kit is only included when expressly stated for the exact ordering code.

Brand Guide

About ITV: ITV specialises in commercial ice-making systems for hospitality, food display and institutional applications. In New Zealand, the range is supplied and supported through SKOPE, giving operators access to application-specific ice formats with established local commercial refrigeration support.

Product Details

Supplied with built-in lined storage bin, 6mm feet, water inlet hose, drain hose, water inlet filter gasket, medium scoop, and backflow prevention device. Please note, filter systems must be installed on this model to validate the warranty.

Best Suited To

  • Bars, restaurants and foodservice sites with a defined ice requirement
  • Applications matched to the stated ice format
  • Installations with suitable water, drainage and ventilation

Technical Specifications

  • Model: ALFA NDP20 A
  • Ordering code: ITV-NDP20 A-R290
  • Series: ITV
  • Application: Ice
  • Refrigeration: Self Contained
  • Doors / drawers: 1
  • Door finish: Solid swing door
  • Construction: Stainless steel 304 AISI
  • Maximum ambient: 43°C
  • Climate class: Exempt from SchemeExempt from Scheme
  • Refrigeration-system location: Bottom
  • Refrigerant: R290
  • Electrical: 220-240 V, Single, 50 Hz, 1.41 A
  • Dimensions: 350 x 475 x 593 mm
  • Net weight: 32 kg
  • Ice production: 23 kg/24h
  • Ice storage: 6 kg
  • Ice weight: 17 g
  • Cycle yield: 23 kg
  • Warranty: 2 Year Warranty

Installation & Operating Considerations

Confirm the finished opening against the 350 x 475 x 593 mm cabinet dimensions and allow the clearances stated in the installation documents. Protect condenser airflow and preserve service access; enclosing a self-contained unit too tightly can reduce performance and increase running cost. Treat filtration, potable-water quality and a continuously falling drain as part of the installation, then size reserve storage around the busiest demand peak.

Warranty

2 Year Warranty

Downloads & Documentation

  • Model ALFA NDP20 A
  • Ice Production 23 kg/24h
  • Dimensions 350 x 475 x 593 mm
  • Warranty 2 Year Warranty
  • Dimension 350 x 475 x 593 mm
  • Weight 32 kg
