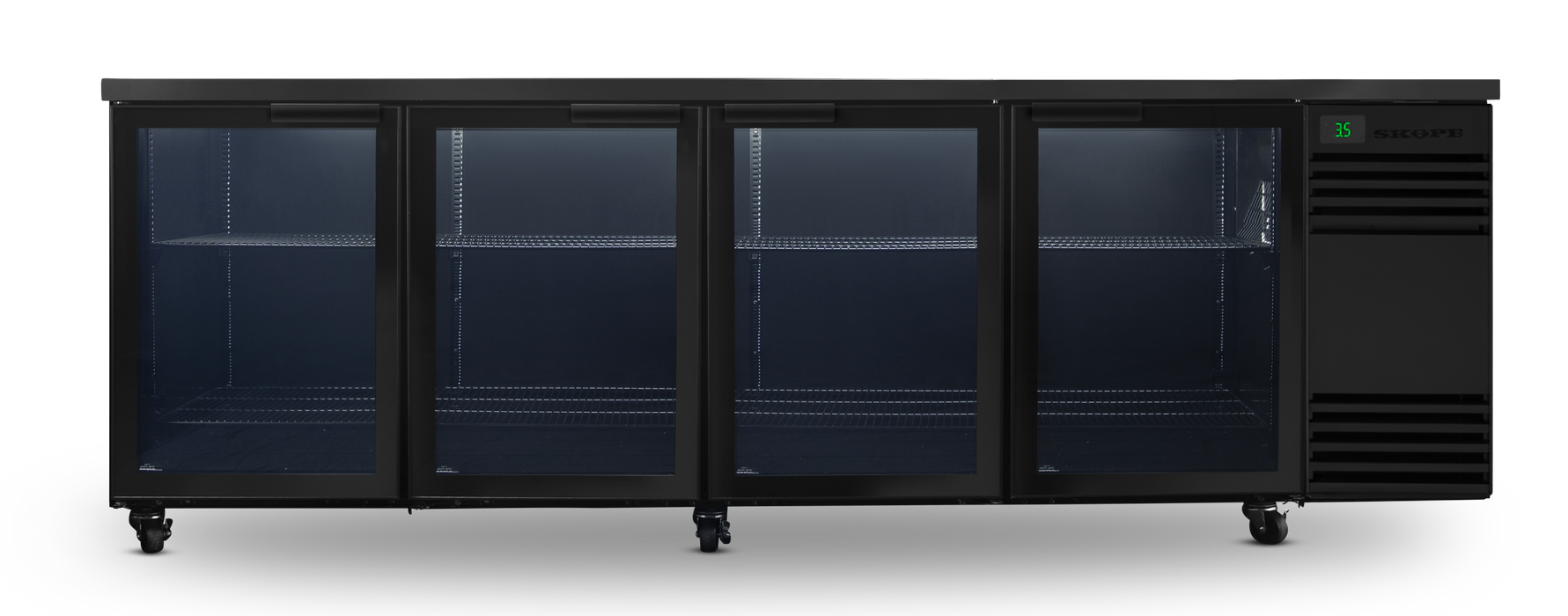

SKOPE BackBar CounterLine 4 Door Fridge - Black, RH - CL.4.GSW.T product image

SKOPE BackBar CounterLine 4 Door Fridge - Black, RH - CL.4.GSW.T

$13,285.29 - $13,285.29
$13,285.29
$13,285.29 - $13,285.29
$13,285.29
SKU CL104/X10850

The CL.4.GSW.T is a purpose-built SKOPE BackBar cabinet for fast, organised bottle access behind a working bar, with its depth, door format and service configuration defined for accurate fitout planning. This exact configuration is supplied with black, right-hand unit, castors.

Key Features

  • 4 door configuration with glass swing door
  • Operating range: 1°C to 4°C (adjustable from 0°C to 15°C)
  • Rated for ambient temperatures up to 40°C
  • Supplied shelving: 4 × inner shelf (547W × 530D), 4 × outer shelf (605W × 530D)
  • Powdercoat galvanised steel cabinet construction
  • SCS Connect controller with Bluetooth® wireless technology
  • Interior lighting: 2 × 16 W dimmable, cool white (5500-6500K) LED
  • R290 refrigerant

Why Choose This Product

Choose this model because the deeper CounterLine format gives useful bottle capacity, including wine-focused storage. Glass swing doors make stock identification immediate and strengthen bottle presentation. The exact finish and refrigeration-hand configuration lets the cabinet be specified around the bar layout rather than compromised after installation.

Apply for Finance
Simply Hospitality Notes

Confirm the finished opening against the 2805 x 680 x 830 mm cabinet dimensions and allow the clearances stated in the installation documents. Protect condenser airflow and preserve service access; enclosing a self-contained unit too tightly can reduce performance and increase running cost. The refrigeration unit is positioned on the right when viewed from the front. The 40°C ambient rating is a design limit, not a substitute for ventilation or routine condenser cleaning.

Product Guide

Select a SKOPE bar cabinet by usable depth, bottle format, door movement and refrigeration position. SlimLine protects aisle depth, standard BackBar balances footprint and capacity, while CounterLine provides the deepest storage profile. The refrigeration unit is positioned on the right when viewed from the front. Allow clear swing space in the service aisle.

Brand Guide

About SKOPE: SKOPE is a New Zealand-founded commercial refrigeration specialist known for durable cabinet design, energy-conscious engineering and serviceable refrigeration systems. SKOPE’s specialist bar-refrigeration family, offering different cabinet depths, door formats and finishes to align cold storage with the service counter.

Product Details

The CL.4.GSW.T is part of the BackBar CounterLine range — the deepest of our three bar fridge configurations. For CL.4.GSW.T, the glass swing door format, cabinet finish and refrigeration position are tied to the exact ordering code, allowing the unit to be coordinated properly with door movement, service access and the finished bar layout.

Best Suited To

  • Bars, clubs and beverage-led venues
  • Restaurants requiring organised undercounter bottle storage
  • Fitouts where door movement and refrigeration position must be planned precisely

Technical Specifications

  • Model: CL.4.GSW.T
  • Ordering code: CL104/X10850
  • Series: BackBar
  • Application: Display
  • Refrigeration: Self Contained
  • Doors / drawers: 4
  • Door finish: Glass swing door
  • Shelves: 4 × inner shelf (547W × 530D), 4 × outer shelf (605W × 530D)
  • Construction: Powdercoat galvanised steel
  • Temperature range: 1°C to 4°C (adjustable from 0°C to 15°C)
  • Maximum ambient: 40°C
  • Climate class: 3M1
  • Annual energy consumption: 3405.45 kWh/year
  • Controller: SCS Connect
  • Connectivity: Bluetooth® wireless technology
  • Refrigeration-system location: RH
  • Refrigerant: R290
  • Electrical: 220-240 V, Single, 50 Hz, 4 A, 3-Pin, 10 amp plug
  • Dimensions: 2805 x 680 x 830 mm
  • Net weight: 267 kg
  • Warranty: 3 Year Warranty

Installation & Operating Considerations

Confirm the finished opening against the 2805 x 680 x 830 mm cabinet dimensions and allow the clearances stated in the installation documents. Protect condenser airflow and preserve service access; enclosing a self-contained unit too tightly can reduce performance and increase running cost. The refrigeration unit is positioned on the right when viewed from the front. The 40°C ambient rating is a design limit, not a substitute for ventilation or routine condenser cleaning.

Warranty

3 Year Warranty

Downloads & Documentation

  • Model CL.4.GSW.T
  • Temperature Range 1°C to 4°C (adjustable from 0°C to 15°C)
  • Dimensions 2805 x 680 x 830 mm
  • Warranty 3 Year Warranty
  • Dimension 2805 x 680 x 830 mm
  • Weight 267 kg
