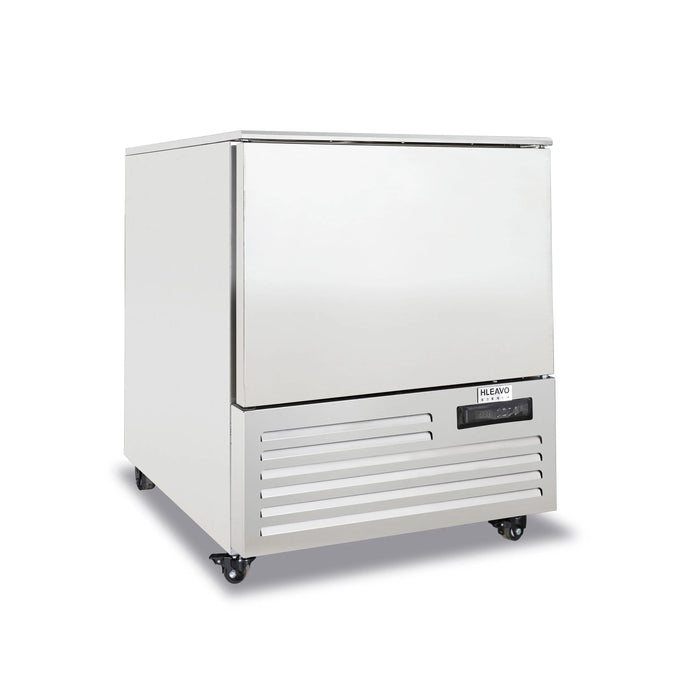

Tecnomac BF5 five-tray commercial blast chiller and freezer

Tecnomac BF5 Five-Tray Blast Chiller & Freezer

Name: Tecnomac BF5 Five-Tray Blast Chiller & Freezer
Brand: Honar Refrigeration
SKU: BF5
Price: 6961.33 NZD
Availability: InStock

$6,961.33 - $6,961.33

$6,961.33

$6,961.33 - $6,961.33

$6,961.33

SKU BF5

The Italian-made Tecnomac BF5 is a five-tray commercial blast chiller and shock freezer for kitchens that need to cool or freeze cooked food quickly and consistently. It accepts both GN 1/1 and 600 x 400mm trays, blast chills up to 20kg from +90°C to +3°C in 90 minutes and blast freezes up to 15kg from +90°C to -18°C in 240 minutes.

Key Features

Five-tray capacity for GN 1/1 or 600 x 400mm trays
20kg blast-chill capacity from +90°C to +3°C in 90 minutes
15kg blast-freeze capacity from +90°C to -18°C in 240 minutes
Core-probe or timed cycle control
Electronic controller with operating alarms
Fully stainless-steel construction
Rounded internal edges simplify cleaning
Self-closing door with magnetic gasket
Timed evaporator defrost with condensate collection tray
Made in Italy

Why Choose This Product

The BF5 suits operators who need meaningful small-batch capacity without moving to a tall, high-volume cabinet. Its ability to take both gastronorm and bakery trays makes it especially useful in mixed restaurant, catering and pastry production, while probe-controlled cycles give the kitchen a more reliable endpoint than cooling by time alone.

Simply Hospitality Notes

The BF5 is best planned around the food load, not simply the five tray positions. Shallow product depth, open air paths and placing the core probe in the slowest-cooling item are essential for repeatable results. Allow enough downstream fridge or freezer space to receive each completed batch immediately.

Product Guide

Choose the BF5 when five trays and 20kg chilling capacity match the kitchen's normal batch size. Its GN 1/1 and 600 x 400mm compatibility is valuable for mixed catering and bakery production. Confirm the required electrical connection before ordering, and remember that a blast chiller finishes the rapid-cooling stage; separate refrigerated or frozen holding capacity is still required.

Brand Guide

About Tecnomac: Tecnomac is an Italian manufacturer specialising in rapid chilling and freezing equipment for professional food production. Its equipment is designed around controlled temperature reduction, flexible production formats and hygienic stainless-steel construction for restaurant, catering, bakery, pastry and gelato applications.

Product Details

The BF5 is designed to reduce the core temperature of freshly cooked food rapidly, helping kitchens move prepared batches into safe chilled or frozen storage while protecting texture and production quality. Electronic controls allow the operator to run a cycle by core probe or time, with alarms providing clearer oversight during production.

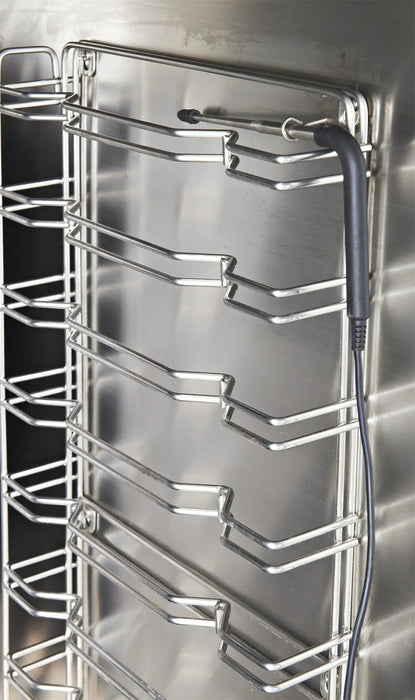

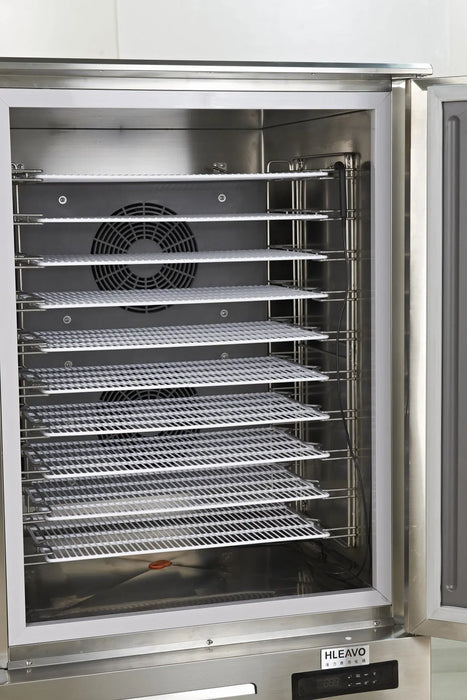

Five tray positions accommodate either GN 1/1 grids or 600 x 400mm bakery trays. That dual-format chamber makes the BF5 practical for kitchens producing both savoury components and bakery or pastry items rather than committing the cabinet to a single tray system.

Best Suited To

Restaurants preparing sauces, proteins and components ahead of service
Caterers using controlled cook-chill production
Bakeries and pastry kitchens working with 600 x 400mm trays
Meal-production kitchens requiring repeatable small-batch cooling
Operations wanting both blast chilling and shock freezing from one cabinet

Technical Specifications

Brand	Tecnomac
Model	BF5
Configuration	Five-tray blast chiller and freezer
Tray compatibility	GN 1/1 grids or 600 x 400mm trays
Blast-chill performance	20kg from +90°C to +3°C in 90 minutes
Blast-freeze performance	15kg from +90°C to -18°C in 240 minutes
Cycle control	Core probe or timed operation
Controller	Electronic control with alarms
Construction	Fully stainless steel
Interior	Rounded edges for easier cleaning
Door	Self-closing with magnetic gasket
Defrost	Timed evaporator defrost at the end of the cycle
Condensate	Lower collection tray
Dimensions	760 W x 730 D x 850 H mm
Country of manufacture	Italy

Installation & Operating Considerations

Confirm the delivery route, final clearances, ventilation and electrical requirements with Honar Refrigeration before installation, as those connection details are not published on the supplied product page. Cycle capacities assume suitable product depth, spacing and probe placement. Do not load trays in a way that obstructs air circulation, and transfer food into appropriate chilled or frozen holding equipment when the cycle finishes.

Care

Clean the chamber, tray supports, core probe, door gasket and condensate tray after use with food-safe products suitable for stainless steel. Keep the condenser airflow path clear and follow the supplier's planned-maintenance requirements so cycle performance remains consistent.

Tray Capacity 5 x GN 1/1 or 600 x 400mm
Cycle Capacity 20kg chill / 15kg freeze
Dimensions 760 W x 730 D x 850 H mm
Control Core probe or timed cycle
Dimension 760 W x 730 D x 850 H mm
Weight
