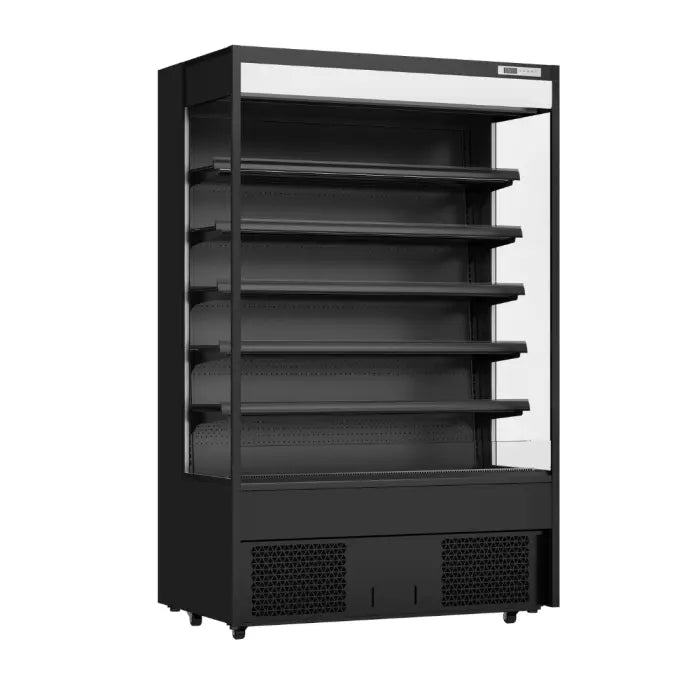

Thermaster Supermarket Open Beverage Display - OC-1220B

Name: Thermaster Supermarket Open Beverage Display - OC-1220B
Brand: Federal
SKU: OC-1220B
Price: 7014.13 NZD
Availability: InStock

$7,014.13 - $7,014.13

$7,014.13

$7,014.13 - $7,014.13

$7,014.13

SKU OC-1220B

Thermaster Supermarket Open Beverage Display is an open-front refrigerated merchandiser that places bottled and packaged drinks directly in the customer's line of sight. Its specification includes Net Volume: 540L and Temperature Range: +1 to +7℃.

Key Features

Smaller base design to reduce floor footprint
Fan-forced cooling

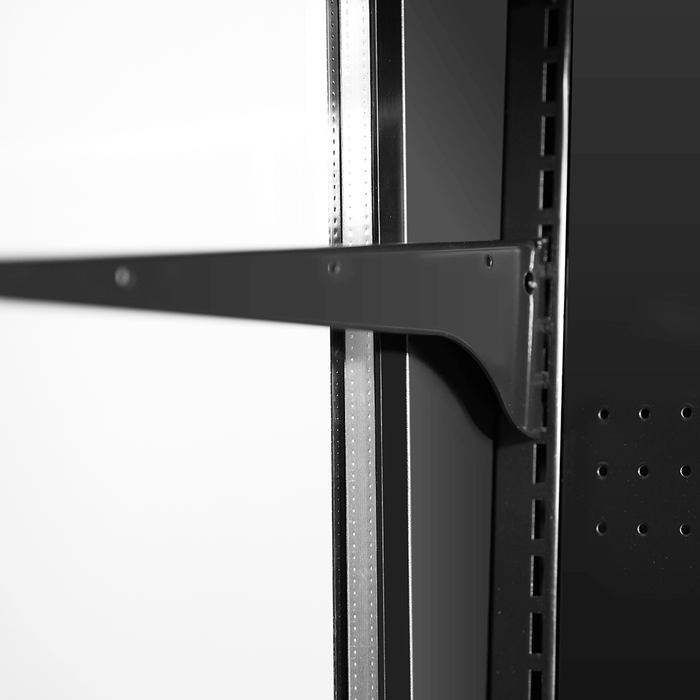

Adjustable glass shelf
Shelf 14° •Angle: 0° | 7°
Temperature class: M2
LED lighting on top
R290 Natural refrigerant
It can be assembled in a line-up, without a mullion, as it is multiplexable.
Net Volume: 540L
Overall dimensions: 1280 W x 770 D x 2067 H mm

Why Choose This Product

Its strength is conversion: the open front removes a door between the customer and the product, while the tall illuminated display supports strong blocking and quick selection. It is worth choosing where access and impulse sales justify the higher heat load of an open cabinet.

Simply Hospitality Notes

Protect display performance by keeping the cabinet away from direct sun, doorways and strong air-conditioning currents. Confirm shelf or pan loading, condensate management, ventilation and service clearances before installation. Published duty: Max Ambient Temperature: 25℃, 60%RH.

Product Guide

Select width around the number of facings required, not just total litres. Confirm aisle clearance, shelf loading and replenishment access, and position the cabinet away from sun, entrances and supply-air drafts that can disturb the cold curtain.

Brand Guide

About Thermaster: Thermaster offers practical commercial refrigeration and food-display equipment across storage, preparation, merchandising and specialist service formats. The range is designed to give hospitality operators clear choices in capacity, access style and footprint, backed by locally available commercial support. Select the unit by temperature duty, maximum ambient rating, usable internal layout and service workflow rather than litres alone.

Product Details

This model's access, shelving, pan or drawer arrangement is designed to keep stock organised through repeated commercial service. Assess the usable internal layout, recovery duty and cleaning access alongside the headline capacity so the cabinet supports the station rather than simply occupying it.

Best Suited To

supermarkets
convenience stores
cafés and high-traffic self-service sites

Technical Specifications

Model: OC-1220B
Net Volume: 540L
Temperature Range: +1 to +7℃
Max Ambient Temperature: 25℃, 60%RH
Electrical: 240V; 1390W; 15A
Overall dimensions: 1280 W x 770 D x 2067 H mm
Smaller base design to reduce floor footprint
Fan-forced cooling
Illuminated top canopy for advertising in Double-layered night blinds for less energy consumption
Streamlined operation
Adjustable glass shelf
Shelf 14° •Angle: 0° | 7°
Temperature class: M2
LED lighting on top
R290 Natural refrigerant
Secop Compressor
It can be assembled in a line-up, without a mullion, as it is multiplexable.
Additional Information
Night Blinds: 2
Display area ㎡: 2.32

Installation & Operating Considerations

Warranty

Covered by the supplier's current commercial warranty terms. Product registration, installation, ventilation, cleaning and servicing must follow the supplied documentation and applicable New Zealand requirements.

Downloads & Documentation

Capacity Net Volume: 540L
Temperature Temperature Range: +1 to +7℃
Dimensions 1280 W x 770 D x 2067 H mm
Electrical 240V; 1390W; 15A
Dimension 1280 W x 770 D x 2067 H mm
