How the System Works
MIND.Maps programming, CLIMA.Control, AIR.Maxi, STEAM.Maxi, DRY.Maxi and CLIMALUX give bakers direct control of heat, airflow and chamber humidity. The controls are most effective when recipes are built around a fixed product, tray, load and starting condition, then reviewed against the finished result.
Capacity and Workflow
This configuration accepts 16 trays of 600×400mm. The published tray pitch is 81.5mm, and the external size is 892 W × 925 D × 1875 H mm. Check tray depth, rack movement and loading clearance with the real menu and site layout.
Control and Cooking Technology
- MIND.Maps multi-stage process programming
- CLIMA.Control humidity and dry-air adjustment
- AIR.Maxi, STEAM.Maxi and DRY.Maxi performance
- CLIMALUX chamber-humidity control
- ROTOR.Klean automatic washing
Construction, Cleaning and Daily Operation
- High-resistance stainless-steel chamber with rounded edges
- Double-glazed door and integrated LED chamber lighting
- Anti-tip tray supports and door-integrated drip collection
- Automatic washing system
Program the wash routine into the operating day, use only the specified chemistry and keep water treatment maintained. Connectivity and recipe tools are most valuable when one person owns the recipe library and staff follow a consistent process.
Installation Considerations
This is a high-connected-load production appliance; electrical capacity, isolation, ventilation, water and drainage must be designed before the order is committed. Both opening directions are listed as true model variants; select the SKU that gives the operator a clear loading path and safe access to the chamber.
Technical Specifications

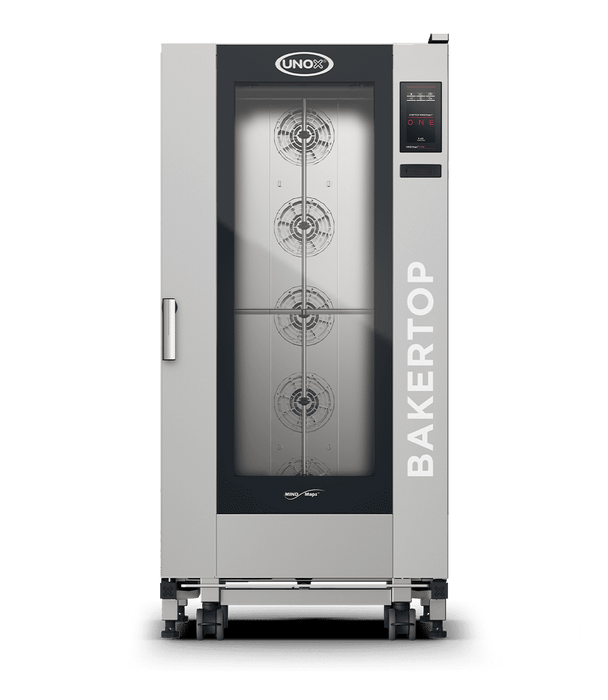

Left-opening — XEBL-16EU-E1LS
| Model | XEBL-16EU-E1LS |
| Equipment type | bakery-format combi oven |
| Power source | Electric |
| Capacity | 16 trays 600x400 |
| Tray pitch | 81.5mm |
| Temperature range | 30 °C – 260 °C |
| Control panel | 9.5" Touch control panel |
| Door | left opening |
| Dimensions | 892 W × 925 D × 1875 H mm |
| Net weight | 262kg |
| Electrical option 1 | 380-415 V, ~3PH+N+PE, 35.5kW, 57A maximum draw, 63A breaker listed, plug/connection: NOT INCLUDED |
| Electrical option 2 | 220-240 V, ~3PH+PE, 35.5kW, 91.5A maximum draw, 100A breaker listed, plug/connection: NOT INCLUDED |
| Water inlet | 3/4-inch NPT |
| Water pressure | 22 to 87 psi; 1.5 to 6 Bar (29 psi; 2 Bar |

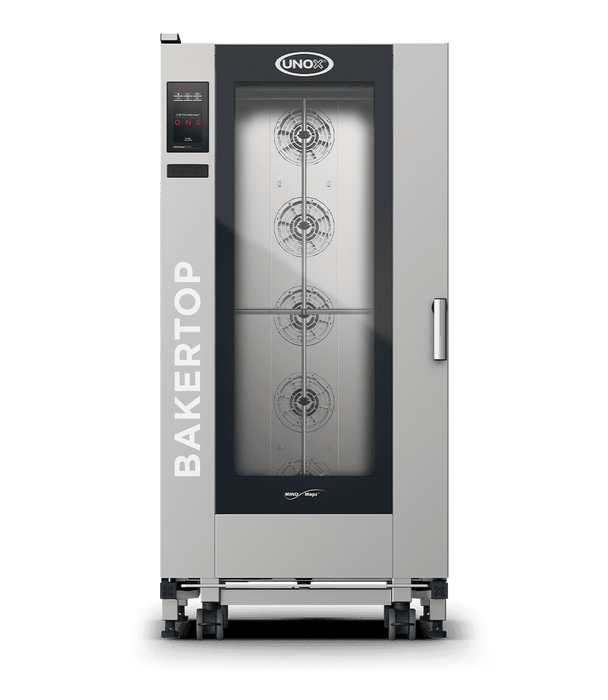

Right-opening — XEBL-16EU-E1RS
| Model | XEBL-16EU-E1RS |
| Equipment type | bakery-format combi oven |
| Power source | Electric |
| Capacity | 16 trays 600x400 |
| Tray pitch | 81.5mm |
| Temperature range | 30 °C – 260 °C |
| Control panel | 9.5" Touch control panel |
| Door | Hinge on the left side |
| Dimensions | 892 W × 925 D × 1875 H mm |
| Net weight | 262kg |
| Electrical option 1 | 380-415 V, ~3PH+N+PE, 35.5kW, 57A maximum draw, 63A breaker listed, plug/connection: NOT INCLUDED |
| Electrical option 2 | 220-240 V, ~3PH+PE, 35.5kW, 91.5A maximum draw, 100A breaker listed, plug/connection: NOT INCLUDED |
| Water inlet | 3/4-inch NPT |
| Water pressure | 22 to 87 psi; 1.5 to 6 Bar (29 psi; 2 Bar |
Water Quality and Commissioning
A potable water supply that meets the model specification is essential for reliable steam performance and scale control. Confirm treatment after testing the actual site water. Electrical, gas where applicable, drainage, ventilation and commissioning must be completed by qualified trades to local requirements.
Documents
Left-opening configuration — XEBL-16EU-E1LS
Right-opening configuration — XEBL-16EU-E1RS
