How the System Works
Digital.ID, intelligent climate and load management, advanced automatic programs and PRESSURE.Klean with integrated RO.Care create a highly connected cooking and cleaning workflow. The controls are most effective when recipes are built around a fixed product, tray, load and starting condition, then reviewed against the finished result.
Capacity and Workflow
This configuration accepts 10 trays of GN 2/1. The published tray pitch is 83mm, and the external size is 860 W × 1180 D × 1219 H mm. Check tray depth, rack movement and loading clearance with the real menu and site layout.
Control and Cooking Technology
- 16-inch Digital.ID touchscreen
- Intelligent automatic cooking and load management
- Advanced humidity, steam and airflow control
- PRESSURE.Klean recirculating automatic washing
- Integrated RO.Care scale-management system
Construction, Cleaning and Daily Operation
- High-resistance stainless-steel chamber for intensive gastronomic production
- Triple-glazed door and integrated chamber lighting
- PRESSURE.Klean recirculating wash system
- RO.Care integrated resin filtration for ongoing scale management
Program the wash routine into the operating day, use only the specified chemistry and keep water treatment maintained. Connectivity and recipe tools are most valuable when one person owns the recipe library and staff follow a consistent process.
Installation Considerations
This is a high-connected-load production appliance; electrical capacity, isolation, ventilation, water and drainage must be designed before the order is committed. Both opening directions are listed as true model variants; select the SKU that gives the operator a clear loading path and safe access to the chamber.
Technical Specifications

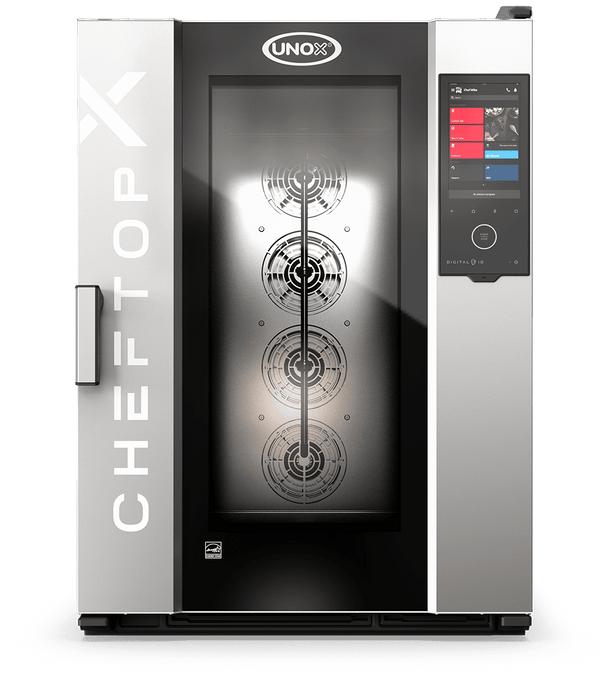

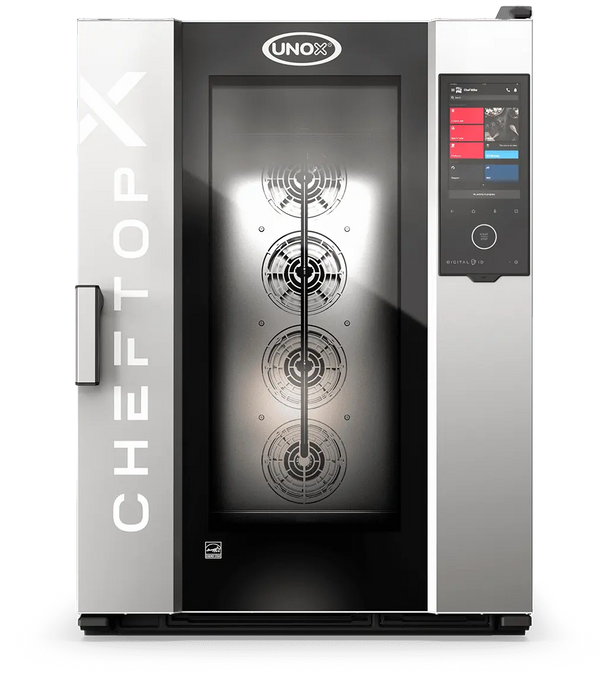

Left-opening — XEDA-1021-EXLS-ET
| Model | XEDA-1021-EXLS-ET |
| Equipment type | flagship commercial combi oven |
| Power source | Electric |
| Capacity | 10 trays GN 2/1 |
| Tray pitch | 83mm |
| Temperature range | 30 °C - 300 °C |
| Control panel | 16" Touch control panel |
| Door | Hinge on the right side |
| Dimensions | 860 W × 1180 D × 1219 H mm |
| Net weight | 207kg |
| Published energy estimate | 141.2kWh/day under UNOX test conditions; actual use varies |
| Electrical option 1 | 380-415 V, ~3PH+N+PE, 35.8kW, 53.5A maximum draw, 63A breaker listed, plug/connection: | CableNOT INCLUDED |
| Electrical option 2 | 220-240 V, ~3PH+PE, 35.8kW, 89A maximum draw, 100A breaker listed, plug/connection: | CableNOT INCLUDED |
| Water inlet | 3/4-inch NPT |
| Water pressure | 1.5 to 10 Bar; 21 to 87 psi (2 Bar; 29 psi |

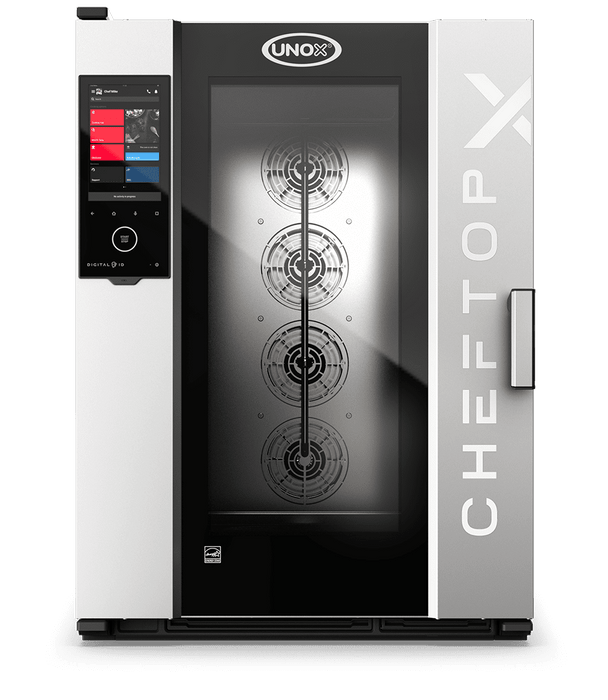

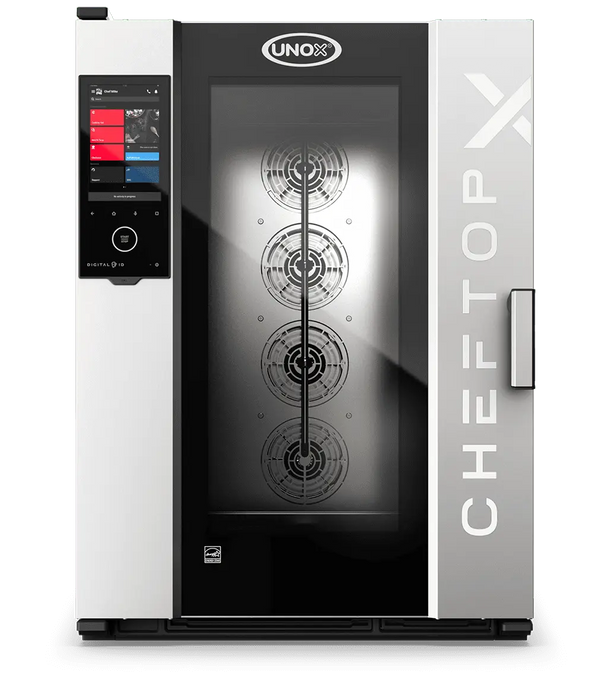

Right-opening — XEDA-1021-EXRS-ET
| Model | XEDA-1021-EXRS-ET |
| Equipment type | flagship commercial combi oven |
| Power source | Electric |
| Capacity | 10 trays GN 2/1 |
| Tray pitch | 83mm |
| Temperature range | 30 °C - 300 °C |
| Control panel | 16" Touch control panel |
| Door | Hinge on the left side |
| Dimensions | 860 W × 1180 D × 1219 H mm |
| Net weight | 207kg |
| Published energy estimate | 141.2kWh/day under UNOX test conditions; actual use varies |
| Electrical option 1 | 380-415 V, ~3PH+N+PE, 35.8kW, 53.5A maximum draw, 63A breaker listed, plug/connection: | CableNOT INCLUDED |
| Electrical option 2 | 220-240 V, ~3PH+PE, 35.8kW, 89A maximum draw, 100A breaker listed, plug/connection: | CableNOT INCLUDED |
| Water inlet | 3/4-inch NPT |
| Water pressure | 1.5 to 10 Bar; 21 to 87 psi (2 Bar; 29 psi |
Water Quality and Commissioning
A potable water supply that meets the model specification is essential for reliable steam performance and scale control. Confirm treatment after testing the actual site water. Electrical, gas where applicable, drainage, ventilation and commissioning must be completed by qualified trades to local requirements.
Documents
Left-opening configuration — XEDA-1021-EXLS-ET
Right-opening configuration — XEDA-1021-EXRS-ET
