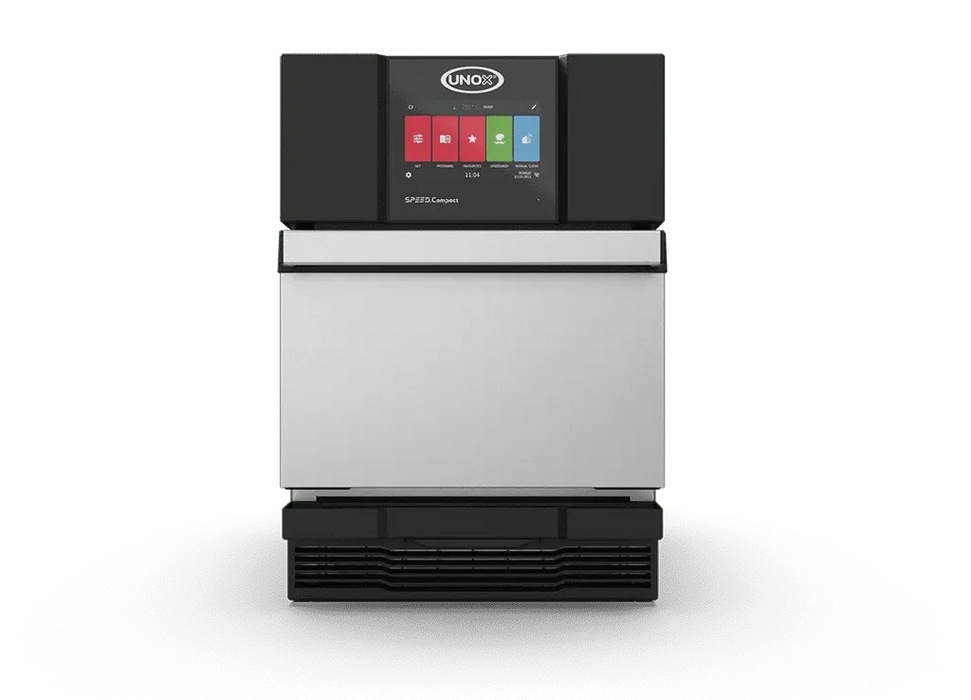

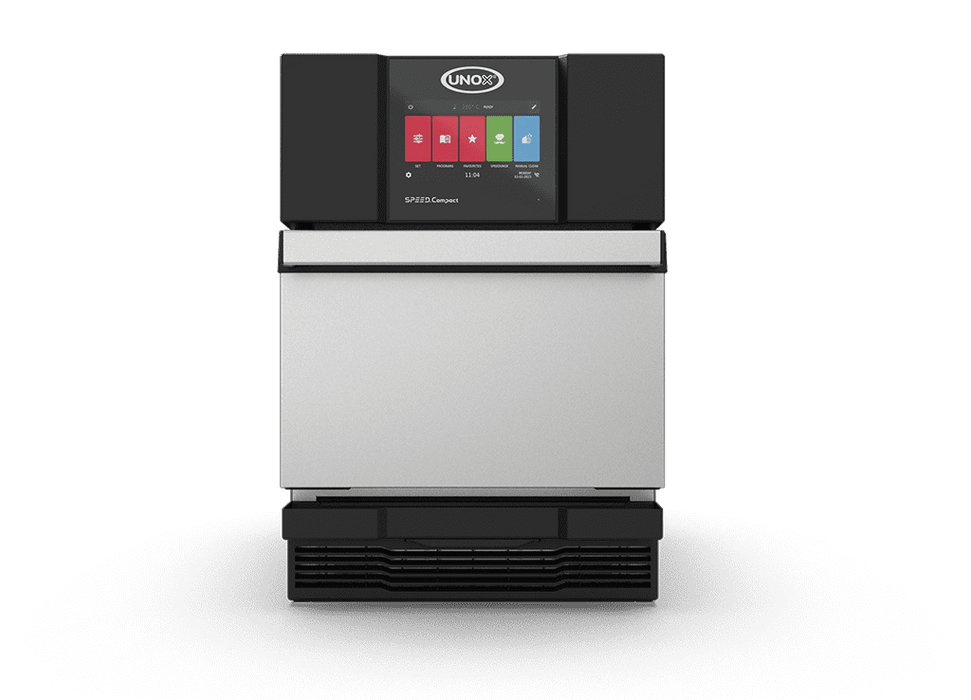

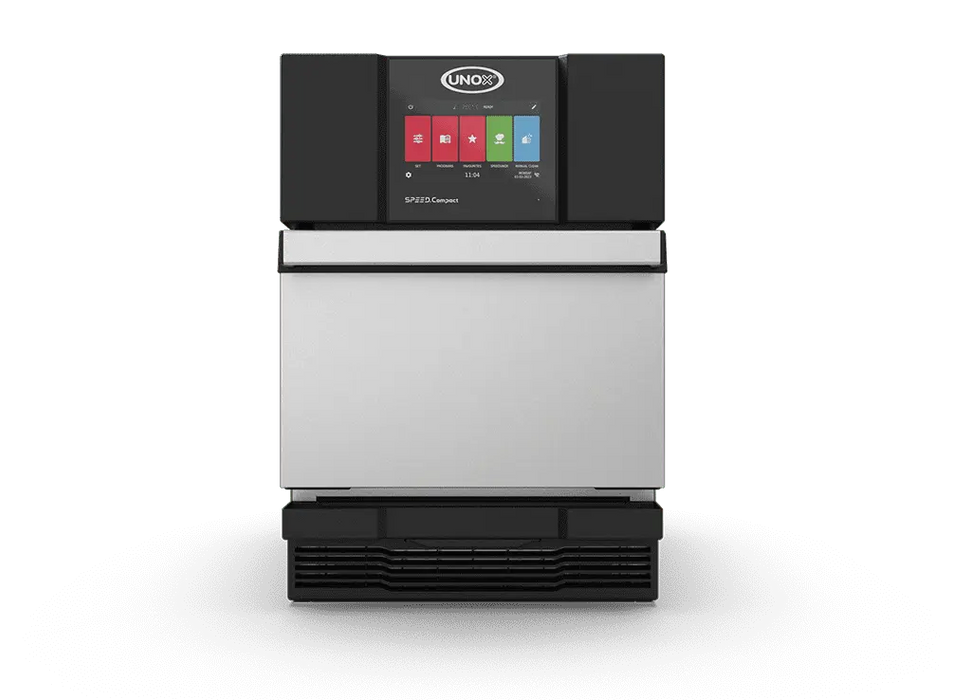

Unox SPEED.Compact ECO Compact Commercial Speed Oven – 1-Tray 300×300mm – Electric — XOMA-01NS-MCDN

Unox SPEED.Compact ECO Compact Commercial Speed Oven – 1-Tray 300×300mm – Electric

$12,398.44 - $12,398.44
$12,398.44
$12,398.44 - $12,398.44
$12,398.44
SKU XOMA-01NS-MCDN

The Unox SPEED.Compact ECO is a 1-tray 300×300mm compact commercial speed oven designed for cafés, convenience stores and food-to-go counters that need fast single-portion service from a narrow, ventless-ready footprint. It brings the range's cooking and workflow strengths into this specific capacity, power and door configuration.

  • 1-tray capacity: 300×300mm
  • 30 °C – 280 °C operating temperature range
  • 9.5" Touch control panel
  • Hot-air and microwave accelerated cooking
  • 384 speed programs with 10 favourites
  • ADAPTIVE.Cooking and SMART.Preheating
  • SMART.Energy automatic standby management
  • Catalysed, installation-friendly compact format
  • 424 W × 719 D × 616 H mm
Why Choose This Product

Its value is practical: rapid hot-air and microwave cooking, a 300×300mm chamber, quiet operation and straightforward installation where counter depth and service speed matter more than batch capacity. The compact 1-tray 300×300mm format is intended for focused, fast-moving menus where space and response time matter more than batch volume. Confirm the tray format against the rest of your kitchen before ordering so pans, racks and workflow remain compatible.
Simply Hospitality Notes

Cafés, convenience stores and food-to-go counters that need fast single-portion service from a narrow, ventless-ready footprint. Its electric heating supports precise control and an all-electric kitchen strategy; confirm the exact voltage, phase, breaker and connection shown for the selected model.

Product Guide

Use it for a tightly engineered menu of sandwiches, snacks, bakery items and plated portions. Match each program to a fixed portion, vessel and starting temperature. The compact chamber rewards consistency; it is not intended to replace a batch convection or combi oven. Follow the guided cleaning routine and keep the catalyst and crumb areas maintained. Confirm the tray format against the rest of your kitchen before ordering so pans, racks and workflow remain compatible.

Brand Guide

About Unox: Unox is an Italian professional-oven specialist focused on controlled airflow, humidity, programmable consistency and connected kitchen workflows. SPEED.Compact ECO is positioned for cafés, convenience stores and food-to-go counters that need fast single-portion service from a narrow, ventless-ready footprint. The range should be selected as a complete cooking system, with tray format, power, water treatment, drainage, ventilation, cleaning chemistry and accessories considered together.

Unox professional ovens logo

How the System Works

SPEED.Plus distributes microwave energy while ADAPTIVE.Cooking, SMART.Preheating and SMART.Energy support repeatability, readiness and lower idle consumption. The controls are most effective when recipes are built around a fixed product, tray, load and starting condition, then reviewed against the finished result.

Capacity and Workflow

This configuration accepts 1 trays of 300×300mm. The published tray pitch is shown in the model specification, and the external size is 424 W × 719 D × 616 H mm. Check tray depth, rack movement and loading clearance with the real menu and site layout.

Control and Cooking Technology

  • Hot-air and microwave accelerated cooking
  • 384 speed programs with 10 favourites
  • ADAPTIVE.Cooking and SMART.Preheating
  • SMART.Energy automatic standby management
  • Catalysed, installation-friendly compact format

Construction, Cleaning and Daily Operation

  • AISI 304 stainless-steel chamber
  • Chamber and chimney catalysts to reduce odour and emissions
  • Mineral insulation for thermal efficiency
  • Integrated crumb collection and panel-guided cleaning

Plan the cleaning method and close-down time before service starts. Keep door seals, fan areas, tray supports and the chamber free of residue so airflow and heat transfer remain predictable.

Installation Considerations

Its electric heating supports precise control and an all-electric kitchen strategy; confirm the exact voltage, phase, breaker and connection shown for the selected model. Confirm clearances, ventilation and service access against the model drawing before finalising the bench or stand.

Technical Specifications

ModelXOMA-01NS-MCDN
Equipment typecompact commercial speed oven
Power sourceElectric
Capacity1 tray 300x300
Temperature range30 °C – 280 °C
Control panel9.5" Touch control panel
DoorDrop down opening
Dimensions424 W × 719 D × 616 H mm
Net weight50kg
Electrical supply240 V, ~1PH+PE, 3.6kW, 16A maximum draw, 15A breaker listed, plug/connection: AU 2-15P | H07RN-F

Water Quality and Commissioning

Confirm the final installation requirements in the model documents. Any food-preservation or accelerated-cooking process must be commissioned with product-specific programs and staff training.

Documents

  • Capacity 1 tray 300x300
  • Control 9.5" Touch control panel
  • Power Supply 240 V, ~1PH+PE, 3.6kW, 16A maximum draw, 15A breaker listed, plug/connection: AU 2-15P | H07RN-F
  • Dimensions 424 W × 719 D × 616 H mm
  • Dimension 424 W × 719 D × 616 H mm
  • Weight 50kg
