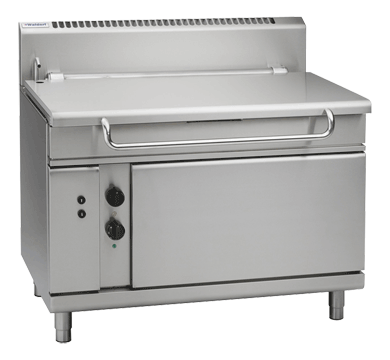

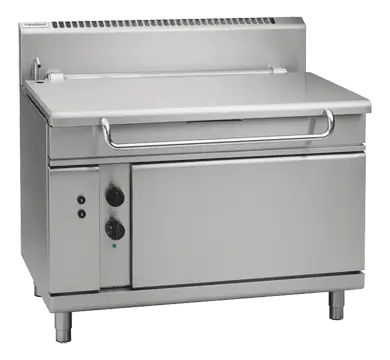

Waldorf 800 Series BP8120GE - 1200mm Gas Tilting Bratt Pan

Waldorf 800 Series BP8120GE - 1200mm Gas Tilting Bratt Pan

$23,663.71 - $23,663.71
$23,663.71
$23,663.71 - $23,663.71
$23,663.71
SKU BP8120GE-NG

Waldorf 800 Series BP8120GE - 1200mm Gas Tilting Bratt Pan is a heavy-duty gas Bratt Pans configured for bulk browning, boiling, braising and batch cooking. Its 1200mm width and integrated floor model allow it to be planned as one working module in a coordinated professional cookline.

  • 1200mm gas tilting bratt pan.
  • 120 litre capacity.
  • 90MJ/hr single 6 bar stainless steel burner.
  • Electric power tilting mechanism.
  • Large capacity pouring spout.
  • Heavy-duty stainless steel legs with adjustable feet.
  • Over temperature safety cut-out.
Why Choose This Product.

Choose BP8120GE when 120 litre capacity replaces repeated stockpot and pan handling with one controlled batch vessel. Browning, simmering and bulk cooking can remain in the same pan, while powered tilt improves control and reduces effort during frequent heavy discharge. Confirm pouring height, floor drain, extraction and receiving-trolley position. Compare BPL8080GE reduces width for a smaller simultaneous load.
Simply Hospitality Notes

Our advice: test BP8120GE against the largest real recipe, not nominal vessel volume. Confirm filling, stirring reach, tilt or draw-off height, receiving containers, floor drainage, ventilation and cleaning access. Heavy batch equipment should reduce transfers and manual handling rather than create a new bottleneck.

Product Guide

Use BP8120GE for bulk recipes that currently require repeated pots, transfers or manual lifting. Choose capacity from the largest practical batch, then compare heat source, pan construction and manual versus powered discharge. Water, drainage, extraction, receiving vessels and operator reach determine whether the theoretical capacity is genuinely usable.

Brand Guide

About Waldorf: Waldorf 800 Series is Moffat's heavy-duty modular cookline for demanding professional kitchens. Its 800mm-deep platform spans ranges, griddles, chargrills, fryers, pasta cookers, bratt pans, induction and complementary modules, allowing a suite to be configured around menu, workflow, utilities and storage. The value lies in choosing each top, width and base as one coordinated system, backed in New Zealand by Moffat's technical, parts and service network.

Capacity, cooking system and controls

  • 1200mm gas tilting bratt pan.
  • 120 litre capacity.
  • 90MJ/hr single 6 bar stainless steel burner.
  • Electric power tilting mechanism.
  • Full stainless steel pan with 2mm pan body.
  • 12mm thick stainless steel even heat pan base.
  • Large capacity pouring spout.
  • Large easy use control knobs heat resistant reinforced.
  • Thermostatic control.
  • Over temperature safety cut-out.

Construction, safety and cleanability

  • Heavy-duty lid and hinge system.
  • Heavy-duty stainless steel legs with adjustable feet.
  • Easy clean, installation and service.

Additional details

  • Galvanised steel chassis.

Technical specifications

ModelBP8120GE
Equipment typeBratt Pans
Overall dimensionsW 1200mm x D 805mm x H 1130mm
Packed weight286kg
Packed volume1.36m³
Published capacity / output120 litre capacity
Published heat input / power90MJ/hr single 6 bar stainless steel burner
Cooking surface / construction12mm thick stainless steel even heat pan base
Configurationintegrated floor model

Documents

  • Dimension W: 1200mm D: 805mm H: 1130mm
  • Weight 286kg packed
