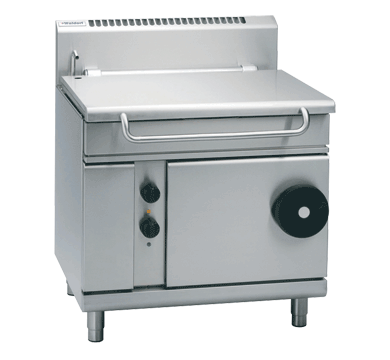

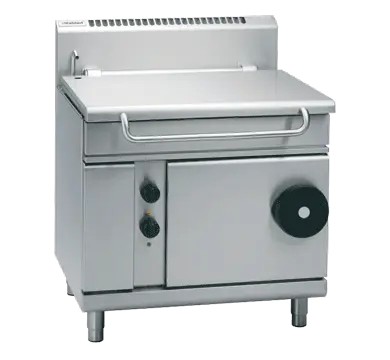

Waldorf 800 Series BPL8080G - 900mm Gas Tilting Bratt Pan Low Back Version

Waldorf 800 Series BPL8080G - 900mm Gas Tilting Bratt Pan Low Back Version

$15,804.29 - $15,804.29
$15,804.29
$15,804.29 - $15,804.29
$15,804.29
SKU BPL8080G-NG

Waldorf 800 Series BPL8080G - 900mm Gas Tilting Bratt Pan Low Back Version is a heavy-duty gas Bratt Pans configured for bulk browning, boiling, braising and batch cooking. Its 900mm width and integrated floor model with a low-back profile allow it to be planned as one working module in a coordinated professional cookline.

  • 900mm gas tilting bratt pan.
  • 80 litre capacity.
  • 75MJ/hr single 6 bar stainless steel burner.
  • Manually operated tilting mechanism.
  • Large capacity pouring spout.
  • Heavy-duty stainless steel legs with adjustable feet.
  • Over temperature safety cut-out.
Why Choose This Product.

Choose BPL8080G when 80 litre capacity replaces repeated stockpot and pan handling with one controlled batch vessel. Browning, simmering and bulk cooking can remain in the same pan, while manual tilt keeps the mechanism straightforward where tipping frequency is moderate. Confirm pouring height, floor drain, extraction and receiving-trolley position. Compare BPL8120GE adds working capacity.
Simply Hospitality Notes

Our advice: test BPL8080G against the largest real recipe, not nominal vessel volume. Confirm filling, stirring reach, tilt or draw-off height, receiving containers, floor drainage, ventilation and cleaning access. Heavy batch equipment should reduce transfers and manual handling rather than create a new bottleneck.

Product Guide

Use BPL8080G for bulk recipes that currently require repeated pots, transfers or manual lifting. Choose capacity from the largest practical batch, then compare heat source, pan construction and manual versus powered discharge. Water, drainage, extraction, receiving vessels and operator reach determine whether the theoretical capacity is genuinely usable.

Brand Guide

About Waldorf: Waldorf 800 Series is Moffat's heavy-duty modular cookline for demanding professional kitchens. Its 800mm-deep platform spans ranges, griddles, chargrills, fryers, pasta cookers, bratt pans, induction and complementary modules, allowing a suite to be configured around menu, workflow, utilities and storage. The value lies in choosing each top, width and base as one coordinated system, backed in New Zealand by Moffat's technical, parts and service network.

Capacity, cooking system and controls

  • 900mm gas tilting bratt pan.
  • 80 litre capacity.
  • 75MJ/hr single 6 bar stainless steel burner.
  • Manually operated tilting mechanism.
  • Full stainless steel pan with 2mm pan body.
  • 12mm thick stainless steel even heat pan base.
  • Large capacity pouring spout.
  • Large easy use control knobs heat resistant reinforced.
  • Thermostatic control.
  • Over temperature safety cut-out.

Construction, safety and cleanability

  • Heavy-duty lid and hinge system.
  • Heavy-duty stainless steel legs with adjustable feet.
  • Easy clean, installation and service.

Additional details

  • Fold away handle.
  • Galvanised steel chassis.

Technical specifications

ModelBPL8080G
Equipment typeBratt Pans
Overall dimensionsW 900mm x D 805mm x H 972mm
Packed weight236kg
Packed volume1.03m³
Published capacity / output80 litre capacity
Published heat input / power75MJ/hr single 6 bar stainless steel burner
Cooking surface / construction12mm thick stainless steel even heat pan base
Configurationintegrated floor model, low-back profile

Documents

  • Dimension W: 900mm D: 805mm H: 972mm
  • Weight 236kg packed
