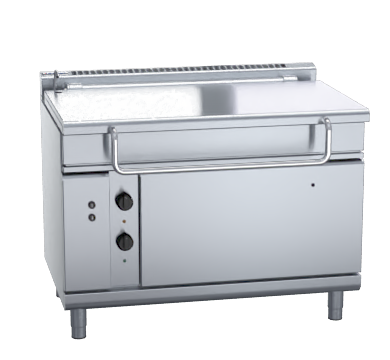

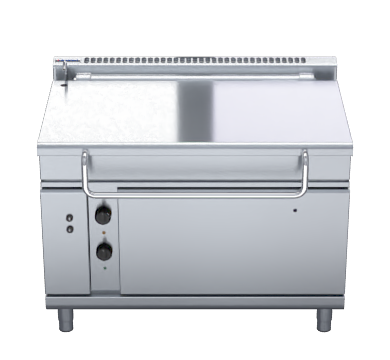

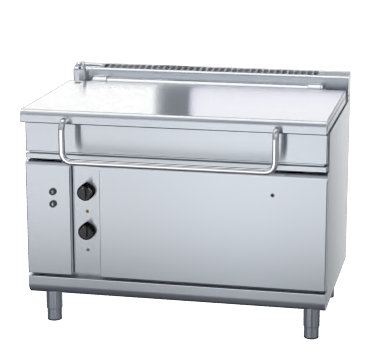

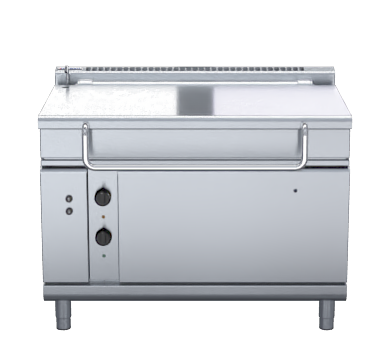

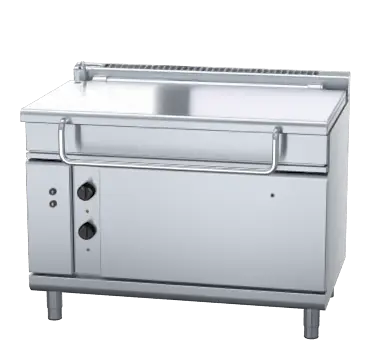

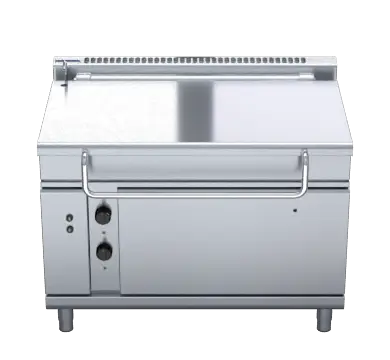

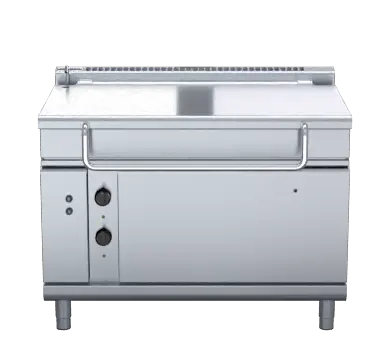

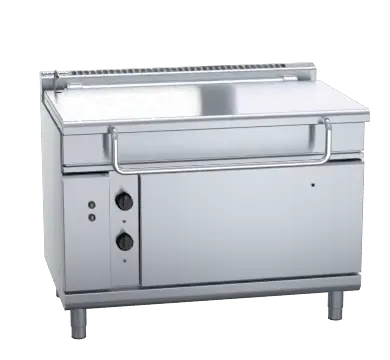

Waldorf 800 Series BPL8120EE - 1200mm Electric Tilting Bratt Pan Low Back Version

Waldorf 800 Series BPL8120EE - 1200mm Electric Tilting Bratt Pan Low Back Version

$31,694.00 - $31,694.00
$31,694.00
$31,694.00 - $31,694.00
$31,694.00
SKU BPL8120EE

Waldorf 800 Series BPL8120EE - 1200mm Electric Tilting Bratt Pan Low Back Version is a heavy-duty electric Bratt Pans configured for bulk browning, boiling, braising and batch cooking. Its 1200mm width and integrated floor model with a low-back profile allow it to be planned as one working module in a coordinated professional cookline.

  • 1200mm electric tilting bratt pan.
  • 120 litre capacity.
  • 3 x 5.66kW stainless steel heating elements.
  • Electric power tilting mechanism.
  • Large capacity pouring spout.
  • Heavy-duty stainless steel legs with adjustable feet.
  • Over temperature safety cut-out.
Why Choose This Product.

Choose BPL8120EE when 120 litre capacity replaces repeated stockpot and pan handling with one controlled batch vessel. Browning, simmering and bulk cooking can remain in the same pan, while powered tilt improves control and reduces effort during frequent heavy discharge. Confirm pouring height, floor drain, extraction and receiving-trolley position. Compare BP8080EE reduces width for a smaller simultaneous load.
Simply Hospitality Notes

Our advice: test BPL8120EE against the largest real recipe, not nominal vessel volume. Confirm filling, stirring reach, tilt or draw-off height, receiving containers, floor drainage, ventilation and cleaning access. Heavy batch equipment should reduce transfers and manual handling rather than create a new bottleneck.

Product Guide

Use BPL8120EE for bulk recipes that currently require repeated pots, transfers or manual lifting. Choose capacity from the largest practical batch, then compare heat source, pan construction and manual versus powered discharge. Water, drainage, extraction, receiving vessels and operator reach determine whether the theoretical capacity is genuinely usable.

Brand Guide

About Waldorf: Waldorf 800 Series is Moffat's heavy-duty modular cookline for demanding professional kitchens. Its 800mm-deep platform spans ranges, griddles, chargrills, fryers, pasta cookers, bratt pans, induction and complementary modules, allowing a suite to be configured around menu, workflow, utilities and storage. The value lies in choosing each top, width and base as one coordinated system, backed in New Zealand by Moffat's technical, parts and service network.

Capacity, cooking system and controls

  • 1200mm electric tilting bratt pan.
  • 120 litre capacity.
  • 3 x 5.66kW stainless steel heating elements.
  • Electric power tilting mechanism.

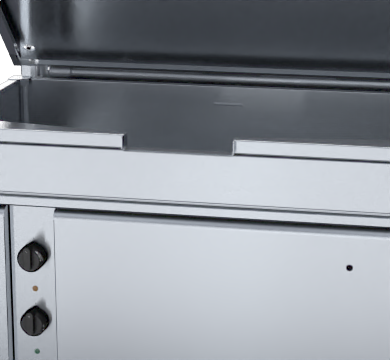

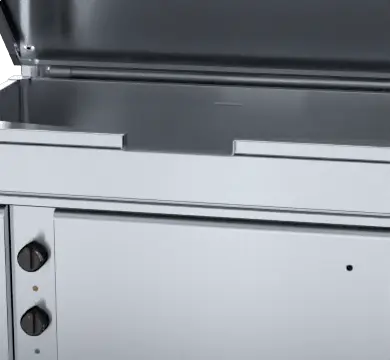

  • Full stainless steel pan with 2mm pan body.
  • 12mm thick stainless steel even heat pan base.
  • Large capacity pouring spout.
  • Large easy use control knobs - heat resistant reinforced.
  • Thermostatic control.
  • Over temperature safety cut-out.

Construction, safety and cleanability

  • Heavy-duty lid and hinge system.
  • Heavy-duty stainless steel legs with adjustable feet.
  • Easy clean, installation and service.

Additional details

  • Galvanised steel chassis.

Technical specifications

ModelBPL8120EE
Equipment typeBratt Pans
Overall dimensionsW 1200mm x D 805mm x H 972mm
Packed weight300kg
Packed volume1.36m³
Published capacity / output120 litre capacity
Published heat input / power3 x 5.66kW stainless steel heating elements
Cooking surface / construction12mm thick stainless steel even heat pan base
Configurationintegrated floor model, low-back profile

Documents

  • Dimension W: 1200mm D: 805mm H: 972mm
  • Weight 300kg packed
