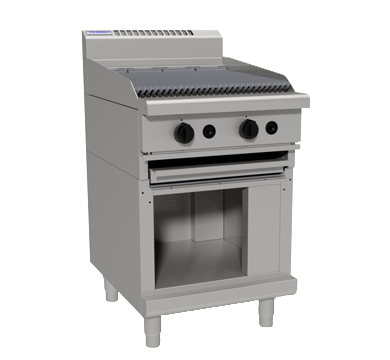

Waldorf 800 Series CH8600G-CB - 600mm Gas Chargrill - Cabinet Base

Waldorf 800 Series CH8600G-CB - 600mm Gas Chargrill - Cabinet Base

$9,824.29 - $9,824.29
$9,824.29
$9,824.29 - $9,824.29
$9,824.29
SKU CH8600G-CB-NG

Waldorf 800 Series CH8600G-CB - 600mm Gas Chargrill - Cabinet Base is a heavy-duty gas Chargrills / Barbecues configured for high-output grilling with rendered flavour and defined grill marks. Its 600mm width and cabinet base allow it to be planned as one working module in a coordinated professional cookline.

  • 2 x 33MJ/hr stainless steel burners.
  • Reversible heavy-duty top grates.
  • Inclined position incorporates flare reducing grate fin design with grooves to run grease into front collection channel.
  • Full pilot and flame failure protection per burner.
  • Lift out radiants, burners and grease tray baffles.
  • Heavy-duty, heat resistant reinforced control knobs.
  • Easy clean, installation and service.
Why Choose This Product.

Choose CH8600G-CB when a 600mm grill in cabinet base matches the peak number of proteins and genuine chargrilled flavour is central to the menu. 2 x 33MJ/hr stainless steel burners. and reversible grates support zone management, while removable radiants, baffles and grease collection matter every day. Size extraction for the actual load, not only the appliance connection. Compare CH8450G-CB reduces width for a smaller simultaneous load; CHL8600G-LS keeps a similar cooking platform with a leg stand.
Simply Hospitality Notes

Our advice: map CH8600G-CB's usable cooking zones to the peak menu and confirm extraction from the actual grease, smoke and heat load. Check utensil reach, raw-to-cooked separation, grease or ash removal, landing space and daily clean-down access before finalising width and base configuration.

Product Guide

Use CH8600G-CB for high-output grilling with rendered flavour and defined grill marks. Compare usable surface width, independent zones, heat source, plate or grate construction and the base below. Gas chargrills emphasise controllable grill flavour, griddles provide a flexible flat surface, and solid fuel adds theatre and flavour with greater ventilation and labour demands.

Brand Guide

About Waldorf: Waldorf 800 Series is Moffat's heavy-duty modular cookline for demanding professional kitchens. Its 800mm-deep platform spans ranges, griddles, chargrills, fryers, pasta cookers, bratt pans, induction and complementary modules, allowing a suite to be configured around menu, workflow, utilities and storage. The value lies in choosing each top, width and base as one coordinated system, backed in New Zealand by Moffat's technical, parts and service network.

Capacity, cooking system and controls

  • 2 x 33MJ/hr stainless steel burners.
  • Full pilot and flame failure protection per burner.
  • Lift out radiants, burners and grease tray baffles.
  • Heavy-duty, heat resistant reinforced control knobs.

Construction, safety and cleanability

  • Reversible heavy-duty top grates.
  • Inclined position incorporates flare reducing grate fin design with grooves to run grease into front collection channel.
  • Easy clean, installation and service.

Configuration and included equipment

  • 600mm gas chargrill on cabinet base.

Technical specifications

ModelCH8600G-CB
Equipment typeChargrills / Barbecues
Overall dimensionsW 600mm x D 805mm x H 1130mm
Packed weight189kg
Packed volume0.7m³
Published heat input / power2 x 33MJ/hr stainless steel burners
Cooking surface / constructionReversible heavy-duty top grates
Configurationcabinet base

Documents

  • Dimension W: 600mm D: 805mm H: 1130mm
  • Weight 189kg packed
